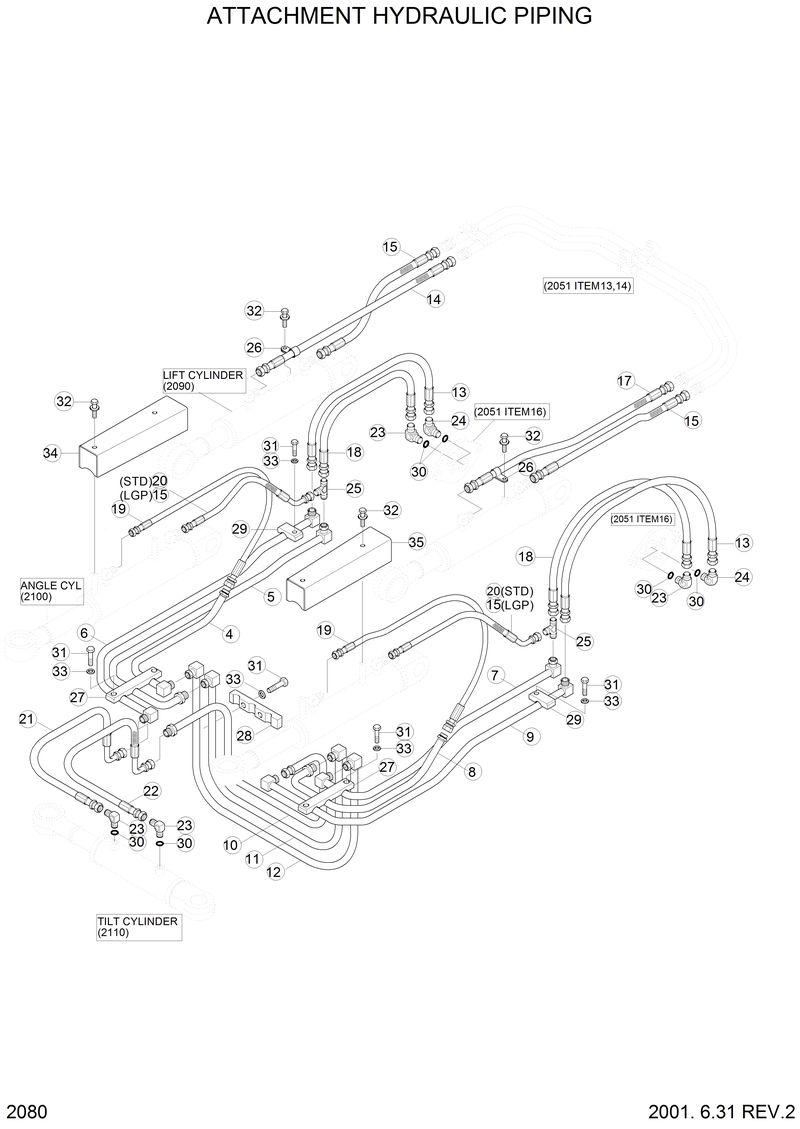

Запчасти Hyundai H80 ATTACHMENT HYDRAULIC PIPING

35D2-10240

35D2-10240-Cover Wa-Lh

35D2-10161

35D2-10161-Cover Wa-Rh

P601-085015

P601-085015-Hose Assy-Thd

P601-085011

P601-085011-Hose Assy-Thd

P601-085011

P601-085011-Hose Assy-Thd

35D2-10280

35D2-10280-Pipe Wa

35D2-10270

35D2-10270-Pipe Wa

35D2-10250

35D2-10250-Pipe Wa

35D2-10260

35D2-10260-Pipe Wa

10

35D2-10072

35D2-10072-Pipe Wa

11

35D1-11170

35D1-11170-Pipe Wa

12

35D1-11180

35D1-11180-Pipe Wa

13

P601-085016

P601-085016-Hose Assy-Thd

14

P601-085019

P601-085019-Hose Assy-Thd

17

P601-085020

P601-085020-Hose Assy-Thd

18

P601-085014

P601-085014-Hose Assy-Thd

19

P601-085018

P601-085018-Hose Assy-Thd

20

P601-085010

P601-085010-Hose Assy-Thd

21

P621-085017

P621-085017-Hose Assy-Thd 0x90

22

P621-085021

P621-085021-Hose Assy-Thd 0x90

23

P020-110003

P020-110003-Elbow-90

24

35D1-11270

35D1-11270-Elbow-90

25

E131-0038

E131-0038-Tee

26

35D1-10420

35D1-10420-Clamp

27

35D1-10440

35D1-10440-Clamp

28

35D1-10460

35D1-10460-Clamp

29

35D1-10410

35D1-10410-Clamp

30

S631-018001

S631-018001-O-Ring

31

S017-100352

S017-100352-Bolt-Hex

32

S037-102052

S037-102052-Bolt-W/Washer

33

S441-100002

S441-100002-Washer-Hardened

34

35D1-11090

35D1-11090-Cover Wa-Rh

35

35D1-11100

35D1-11100-Cover Wa-Lh

4

35D2-10111

35D2-10111-Pipe Wa

5

35D2-10121

35D2-10121-Pipe Wa

6

35D2-10102

35D2-10102-Pipe Wa

7

35D2-10061

35D2-10061-Pipe Wa

8

35D2-10051

35D2-10051-Pipe Wa

9

35D2-10041

35D2-10041-Pipe Wa
