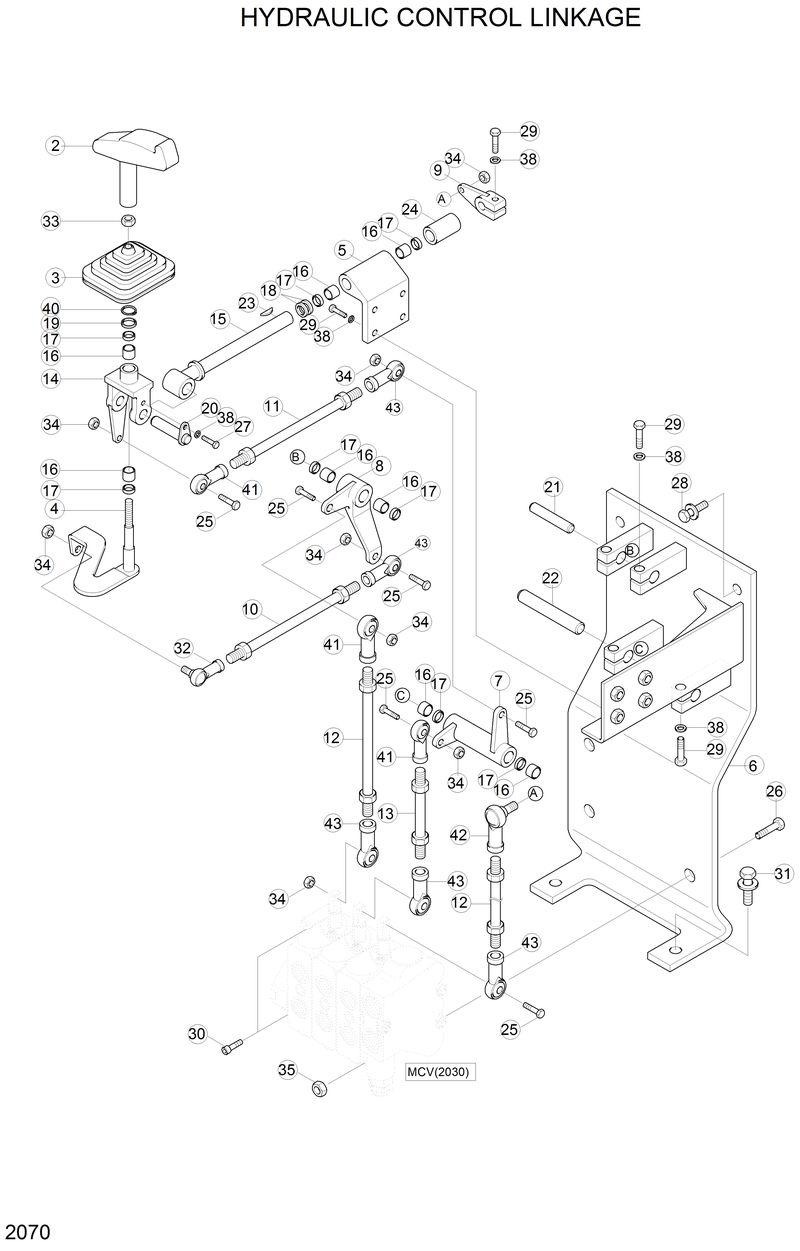

Запчасти Hyundai H80 HYDRAULIC CONTROL LINKAGE

10

35D1-40301

35D1-40301-Rod Assy

11

35D1-40111

35D1-40111-Rod Assy

12

35D1-40121

35D1-40121-Rod Assy

13

35D1-40131

35D1-40131-Rod Assy

14

35D1-40250

35D1-40250-Yoke

15

35D1-40150

35D1-40150-Shaft Wa

16

35D1-40270

35D1-40270-Bearing-Roller

17

35D1-40170

35D1-40170-Seal-Lip Type

18

35D1-40180

35D1-40180-Shim

19

35D1-40190

35D1-40190-Shim

2

35D1-40020

35D1-40020-Knob

20

35D1-40200

35D1-40200-Shaft Wa

21

35D1-40210

35D1-40210-Shaft

22

35D1-40220

35D1-40220-Shaft

23

35D1-40230

35D1-40230-Key-Woodruff

24

35D1-40240

35D1-40240-Boss

25

S015-080302

S015-080302-Bolt-Hex

26

S017-100352

S017-100352-Bolt-Hex

27

S017-100162

S017-100162-Bolt-Hex

28

S037-102052

S037-102052-Bolt-W/Washer

29

S017-100302

S017-100302-Bolt-Hex

3

35D1-40031

35D1-40031-Boot

30

S107-100602

S107-100602-Bolt-Socket

31

S037-102552

S037-102552-Bolt-W/Washer

32

S925-110000

S925-110000-Rod End

33

S205-121002

S205-121002-Nut-Hex

34

S275-080002

S275-080002-Nut-Self Locking

35

S205-101002

S205-101002-Nut-Hex

38

S441-100002

S441-100002-Washer-Hardened

4

35D1-40041

35D1-40041-Lever Wa

40

S601-013004

S601-013004-Ring-Retaining C Type

41

S923-108000

S923-108000-Rod End

42

S925-108000

S925-108000-Rod End

43

S923-208000

S923-208000-Rod End

5

35D1-40050

35D1-40050-Support

6

35D1-40264

35D1-40264-Bracket Wa

7

35D1-40070

35D1-40070-Support Wa

8

35D1-40290

35D1-40290-Bellcrank Wa

9

35D1-40090

35D1-40090-Support
