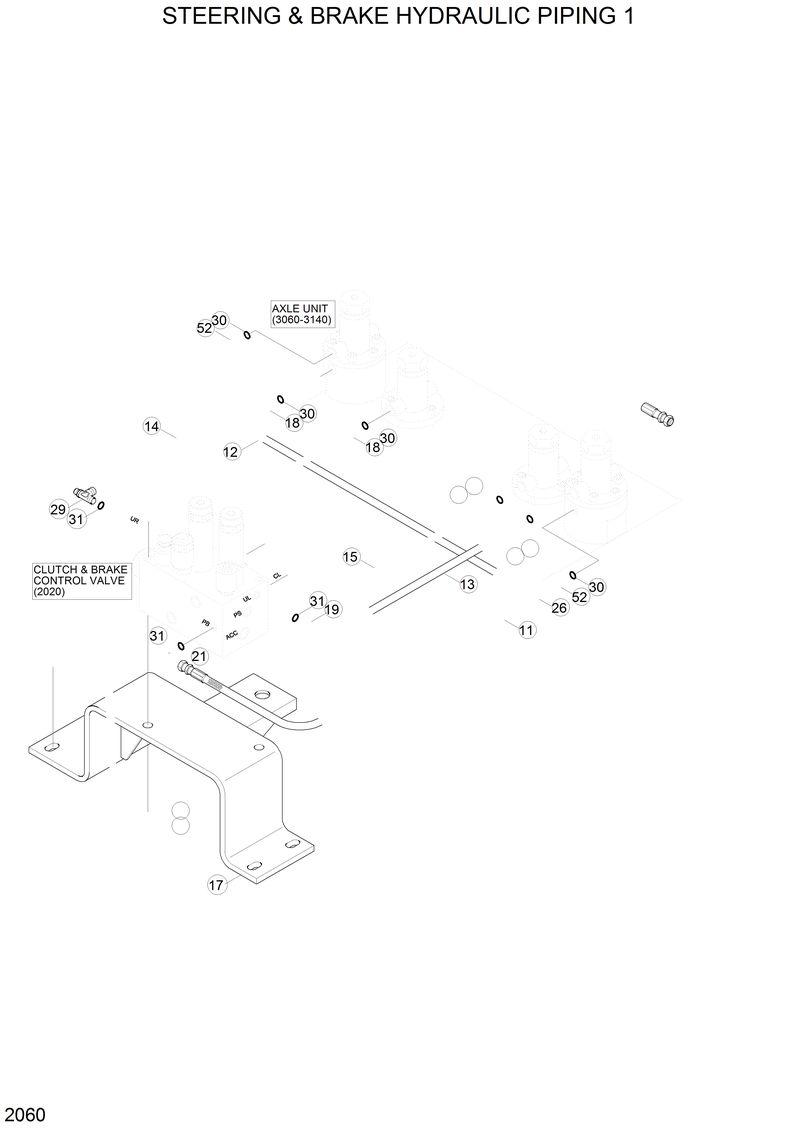

Запчасти Hyundai H80 STEERING & BRAKE HYDRAULIC PIPING 1

35D1-30323

35D1-30323-Bracket Wa

11

P620-043009

P620-043009-Hose Assy-Thd 0x90

12

P620-043014

P620-043014-Hose Assy-Thd 0x90

13

P620-043007

P620-043007-Hose Assy-Thd 0x90

14

P620-043010

P620-043010-Hose Assy-Thd 0x90

15

P620-043006

P620-043006-Hose Assy-Thd 0x90

16

P620-043008

P620-043008-Hose Assy-Thd 0x90

17

35D1-30322

35D1-30322-Bracket Wa

18

P010-310001

P010-310001-Connector

19

P010-310003

P010-310003-Connector

21

P020-310002

P020-310002-Elbow-90

26

32E6-10460

32E6-10460-Tee-Swivel

29

35D1-30350

35D1-30350-Tee

30

S611-009001

S611-009001-O-Ring

31

S611-012001

S611-012001-O-Ring

35

S017-101202

S017-101202-Bolt-Hex

36

S037-122552

S037-122552-Bolt-W/Washer

38

S441-100002

S441-100002-Washer-Hardened

40

S205-101002

S205-101002-Nut-Hex

50

31EK-11130

31EK-11130-Coupling-Screw

51

35D1-30380

35D1-30380-Tee

52

31L8-10210

31L8-10210-Connector

53

31L9-10050

31L9-10050-Elbow-90

54

35D1-11320

35D1-11320-Tee

55

P600-043007

P600-043007-Hose Assy-Thd

56

P600-043015

P600-043015-Hose Assy-Thd
