Запчасти Hyundai H80 MAIN HYDRAULIC PIPING 2

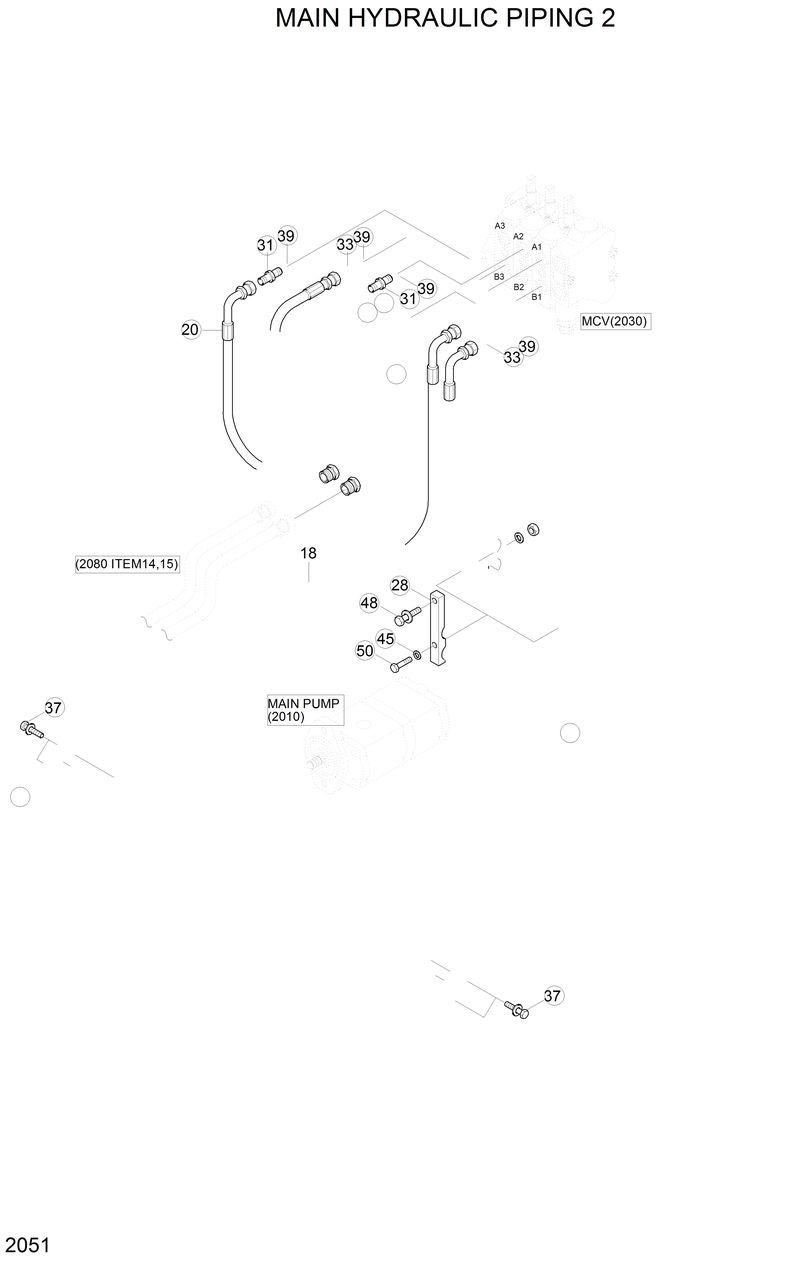

Схема запчастей Hyundai H80 - MAIN HYDRAULIC PIPING 2

Артикул

Название

Примечание

Количество

13

35D2-10221

35D2-10221-Pipe Wa

14

35D2-10231

35D2-10231-Pipe Wa

16

35D1-11250

35D1-11250-Plate

17

S205-101002

S205-101002-Nut-Hex

18

P620-085015

P620-085015-Hose Assy-Thd 0x90

19

P620-085014

P620-085014-Hose Assy-Thd 0x90

20

P620-085021

P620-085021-Hose Assy-Thd 0x90

21

P620-085019

P620-085019-Hose Assy-Thd 0x90

22

P620-085012

P620-085012-Hose Assy-Thd 0x90

23

P620-085013

P620-085013-Hose Assy-Thd 0x90

27

35D1-10921

35D1-10921-Bracket Wa

28

35D1-11000

35D1-11000-Clamp

29

35D1-11010

35D1-11010-Clamp

30

35D1-10410

35D1-10410-Clamp

31

P105-111084

P105-111084-Connector-Long

33

P010-310008

P010-310008-Connector

37

S037-102552

S037-102552-Bolt-W/Washer

39

S611-019001

S611-019001-O-Ring

45

S411-100002

S411-100002-Washer-Spring

47

S037-102052

S037-102052-Bolt-W/Washer

48

S037-103052

S037-103052-Bolt-W/Washer

50

S017-100552

S017-100552-Bolt-Hex

7

35D2-10290

35D2-10290-Connector

8

31M5-51740

31M5-51740-Connector

Выбрано товаров: 24
