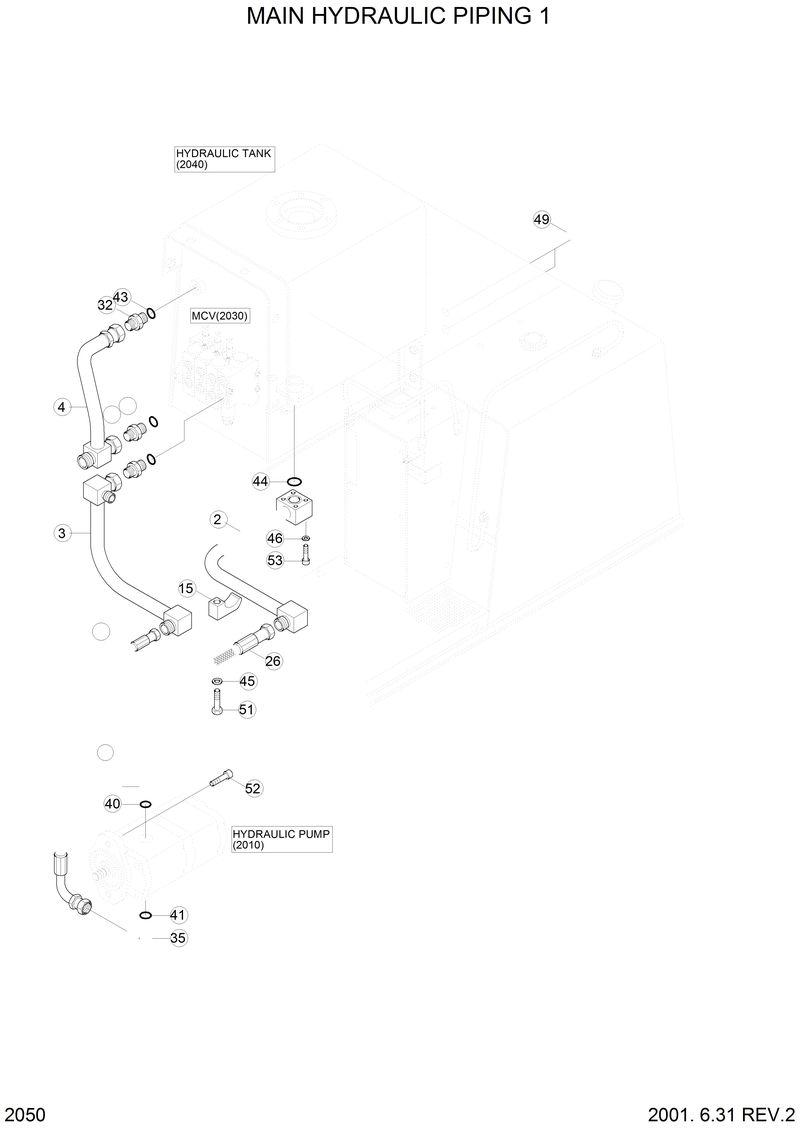

Запчасти Hyundai H80 MAIN HYDRAULIC PIPING 1

P010-310010

P010-310010-Connector

P010-310010

P010-310010-Connector

*

35D2-11000

35D2-11000-Attach Piping Kit

15

S581-340000

S581-340000-Clamp-Pipe

2

35D1-10742

35D1-10742-Pipe Wa

24

P620-047008

P620-047008-Hose Assy-Thd 0x90

25

P613-124014

P613-124014-Hose Assy-Thd 0x45

26

P623-162019

P623-162019-Hose Assy-Thd 0x90

3

35D1-10751

35D1-10751-Pipe Wa

32

P010-110005

P010-110005-Connector

35

P020-310012

P020-310012-Elbow-90

36

31EM-30210

31EM-30210-Coupling-Screw

4

35D1-10760

35D1-10760-Pipe Wa

40

S611-023001

S611-023001-O-Ring

41

S611-030001

S611-030001-O-Ring

43

S631-024001

S631-024001-O-Ring

44

31L1-3029

31L1-3029-O-Ring

45

S441-100002

S441-100002-Washer-Hardened

46

S411-100002

S411-100002-Washer-Spring

49

S661-210300

S661-210300-Rubber Cap

51

S017-100602

S017-100602-Bolt-Hex

52

34L3-01480

34L3-01480-Bolt-Hex

53

S109-100506

S109-100506-Bolt-Socket

54

P020-310009

P020-310009-Elbow-90

91

P620-085021

P620-085021-. Hose Assy-Thd 0x90

92

35D1-11010

35D1-11010-. Clamp

93

P010-310008

P010-310008-. Connector

94

S611-019001

S611-019001-. O-Ring

95

S017-100552

S017-100552-. Bolt-Hex

96

S411-100002

S411-100002-. Washer-Spring

97

31E4-3034

31E4-3034-. Connector

98

P290-100104

P290-100104-. Plug-Cap

99

P620-085020

P620-085020-. Hose Assy-Thd 0x90
