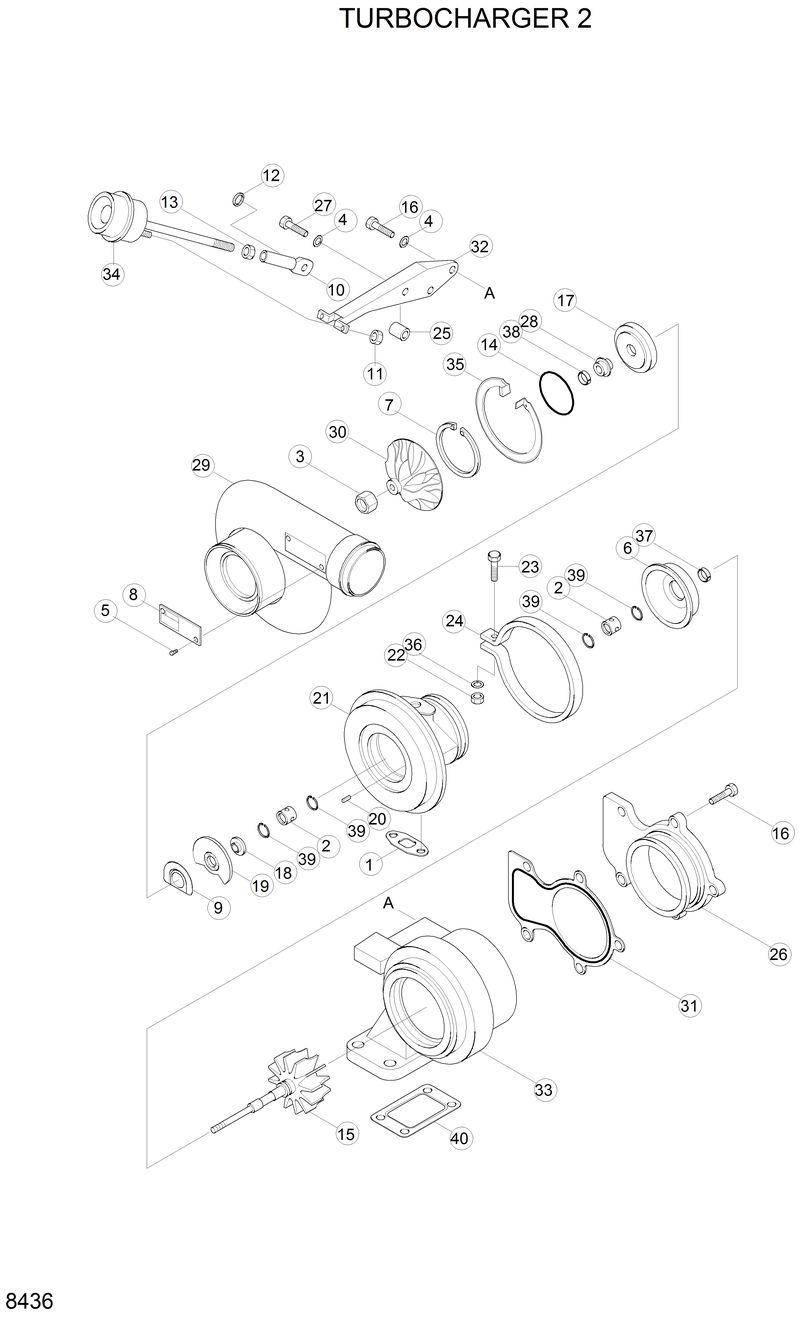

Запчасти Hyundai H80 TURBOCHARGER 2

3537562

3537562-. Turbocharger

3528414

3528414-. Nut

3528414

3528414-. Nut

*

3802798

3802798-Kit-Turbocharger

1

3519807

3519807-Gasket-Oil Drain

10

3528177

3528177-. End-Adjusting Link

11

3528204

3528204-. Nut-Lock

12

3528221

3528221-. Ring-Retaing

14

3528933

3528933-. Seal/O-Ring

15

3530522

3530522-. Shaft & Wheel

16

3530556

3530556-. Screw

17

3530923

3530923-. Plate-Oil Seal

18

3530924

3530924-. Slinger-Oil

19

3531419

3531419-. Bearing

2

3503100

3503100-. Bearing-Turbo

20

3522597

3522597-.. Pin-Roll

22

3531582

3531582-. Nut-Hex

23

3531598

3531598-. Screw-Hex Head

24

3531670

3531670-. Clamp-V Band

25

3532195

3532195-. Spacer-Mounting

26

3527759

3527759-. Connection-Adapt

27

3532940

3532940-. Screw

28

3534451

3534451-. Collar-Thrust

29

3536633

3536633-. Housing

3

3503562

3503562-. Nut-Lock

30

3537538

3537538-. Impeller

31

3535001

3535001-. Gasket-Tubocharger

32

3535203

3535203-. Bracket-Actuator

33

3535656

3535656-. Housing

34

3537560

3537560-. Actuator

35

3535800

3535800-. Ring-Retainer

36

3535971

3535971-. Washer-Plain

37

3756754

3756754-. Seal-Split Ring

38

3758848

3758848-. Seal-Split Ring

39

3762259

3762259-. Ring-Retaining

4

3504967

3504967-. Washer-Plain

40

3919369

3919369-Gasket-Turbocharger

5

3519163

3519163-. Screw-Drive

6

3519304

3519304-. Shield

7

3527566

3527566-. Ring-Retaining

9

3528104

3528104-. Baffle-Oil

N

@

@-Not Individually Supplied

N21

3541421

3541421-.. Housing

N8

3527619

3527619-. Dataplate
