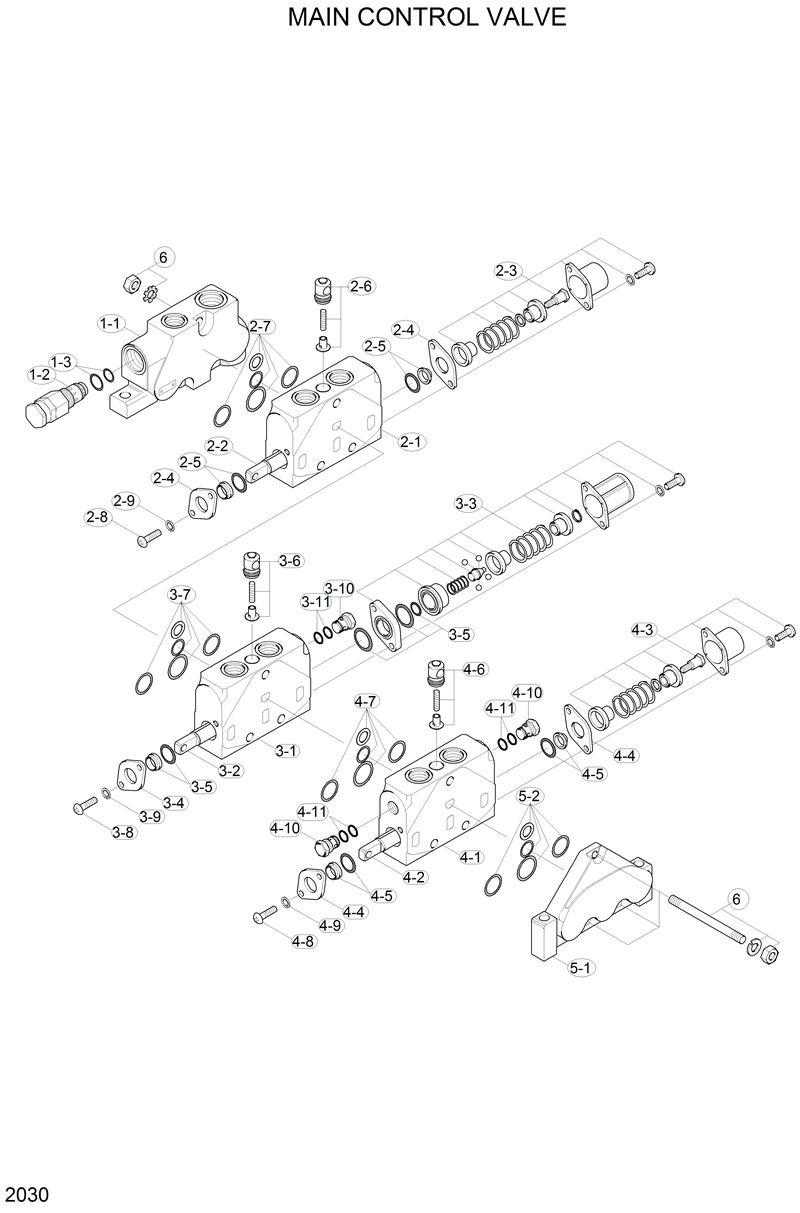

Запчасти Hyundai H80 MAIN CONTROL VALVE

1

3469105001

3469105001-. Cover-Inlet

1-1

3460306402

3460306402-.. Cover-Inlet

1-2

3469002003

3469002003-.. Relief Valve

1-3

35D1-40310

35D1-40310-.. Seal Kit

3

3469102499

3469102499-. Worksection 2

3-3

3469149211

3469149211-.. Mechanism Kit

3-5

35D1-40340

35D1-40340-.. Seal Kit-Spool

4

3469102525

3469102525-. Worksection 3

4-10

3469001002

3469001002-.. Valve Kit-Anti Cavit

4-10

3469001002

3469001002-.. Valve Kit-Anti Cavit

4-11

3469149115

3469149115-.. Seal Kit

4-11

3469149115

3469149115-.. Seal Kit

4-2

@

@-.. Spool

4-2

@

@-.. Spool

4-2

@

@-.. Spool

4-3

3469149174

3469149174-.. Mechanism Kit

4-3

3469149174

3469149174-.. Mechanism Kit

4-4

3460506377

3460506377-.. Retainer-Seal

4-4

3460506377

3460506377-.. Retainer-Seal

4-4

3460506377

3460506377-.. Retainer-Seal

4-5

35D1-40320

35D1-40320-.. Seal Kit-Spool

4-5

35D1-40320

35D1-40320-.. Seal Kit-Spool

4-6

3469149112

3469149112-.. Check Valve Kit

4-6

3469149112

3469149112-.. Check Valve Kit

4-6

3469149112

3469149112-.. Check Valve Kit

4-8

3460505157

3460505157-.. Screw

4-8

3460505157

3460505157-.. Screw

4-8

3460505157

3460505157-.. Screw

4-9

3460505459

3460505459-.. Washer

4-9

3460505459

3460505459-.. Washer

4-9

3460505459

3460505459-.. Washer

5

3469106002

3469106002-. Cover-Outlet

5-1

@

@-.. Housing

5-1

@

@-.. Housing

5-1

@

@-.. Housing

5-1

@

@-.. Housing

5-2

35D1-40330

35D1-40330-.. Seal Kit-Interface

5-2

35D1-40330

35D1-40330-.. Seal Kit-Interface

5-2

35D1-40330

35D1-40330-.. Seal Kit-Interface

5-2

35D1-40330

35D1-40330-.. Seal Kit-Interface

6

3469425303

3469425303-. Stud Assy Kit

N

@

@-Not Individually Supplied

N*

35D1-40012

35D1-40012-Main Control Valve

N2

3469102526

3469102526-. Worksection 1
