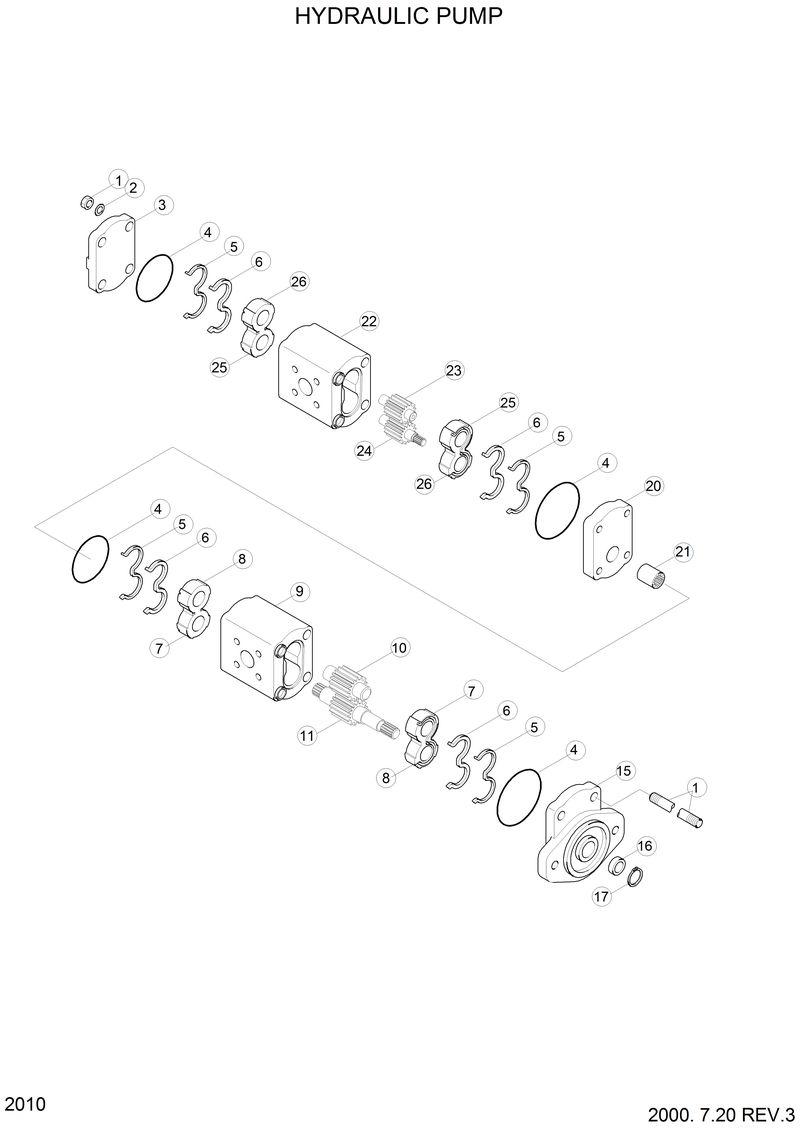

Запчасти Hyundai H70 HYDRAULIC PUMP

*

35D1-10730

35D1-10730-Hyd Pump Assy

1

8539-306-00Y

8539-306-00Y-. Fastner Sub Assy

10

1PXG170LA1A1Z

1PXG170LA1A1Z-. Gear-Driven,Fr

11

1PXG170LS1D16

1PXG170LS1D16-. Gear-Drive Shaft,Fr

16

8301-019-00K

8301-019-00K-. Seal-Shaft

17

9211-323-00B

9211-323-00B-. Circlip

2

9221-256-00B

9221-256-00B-. Washer-Spring

20

1PXS02C

1PXS02C-. Plate-Spacer

22

1PXB084M09B1J2S

1PXB084M09B1J2S-. Body-Rear

22-1

7111-024-00R

7111-024-00R-.. Dowel

22-1

7111-024-00R

7111-024-00R-.. Dowel

24

1PXG084MD1A1J

1PXG084MD1A1J-. Gear-Drive Shaft,Rr

25

8611-207-00E

8611-207-00E-. Bushing-Rear

26

8611-208-00A

8611-208-00A-. Bushing-Rear

3

1PXC33B1B1B1B16

1PXC33B1B1B1B16-. Cover

7

8611-209-006

8611-209-006-. Bushing-Front

8

8611-210-00Z

8611-210-00Z-. Bushing-Front

9

1PXB170L05J4J3F

1PXB170L05J4J3F-. Body-Front

K

8677-023-000

8677-023-000-Seal Kit-Rear

K

8611-023-00N

8611-023-00N-Seal Kit-Front

N15

1PXF01S14

1PXF01S14-. Flange

N21

7401-009-00R

7401-009-00R-. Coupling-Splined

N23

1PXG084MA1A14

1PXG084MA1A14-. Gear-Driven,Rr

N4

9313-145-00B

9313-145-00B-. O-Ring

N5

8611-015-000

8611-015-000-. Seal-Back Up

N6

8611-016-00R

8611-016-00R-. Seal
