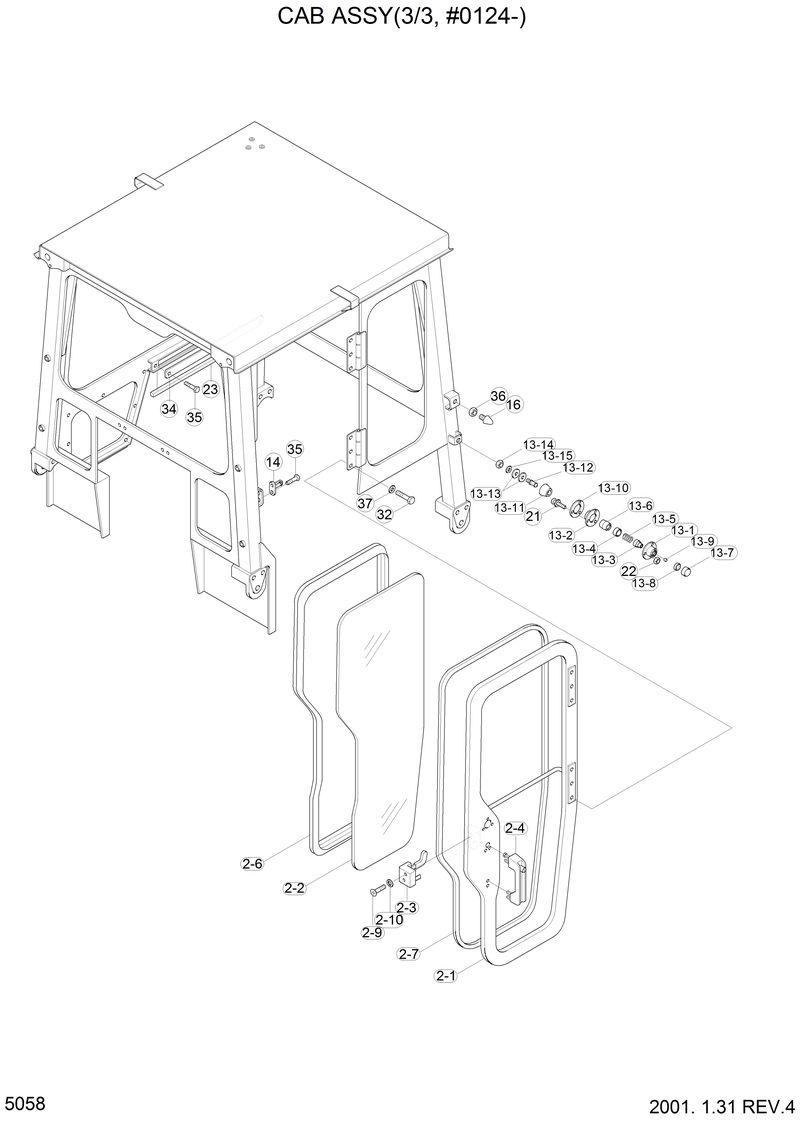

Запчасти Hyundai H70 CAB ASSY(3/3, #0124-)

*

@

@-Cab Assy

13

75D1-05470

75D1-05470-. Catch Set

13-1

11-0048

11-0048-.. Cap 1-Body

13-10

31-0012

31-0012-.. Rubber

13-11

31-0013

31-0013-.. Stopper-Pad

13-12

61-0029

61-0029-.. Bolt-Lock

13-13

51-0019

51-0019-.. Washer

13-14

S205-081006

S205-081006-.. Nut-Hex

13-15

S411-080002

S411-080002-.. Washer-Spring

13-2

11-0049

11-0049-.. Cap 2-Body

13-3

51-0017

51-0017-.. Cap-Spring

13-4

11-0050

11-0050-.. Cap 1-Push

13-5

51-0018

51-0018-.. Spring

13-6

11-0051

11-0051-.. Plate-Push

13-7

31-0011

31-0011-.. Cover-Push Cap

13-8

11-0052

11-0052-.. Cap 2-Push

13-9

51-0020

51-0020-.. Revit

14

75D1-05120

75D1-05120-. Striker

16

71EH-13150

71EH-13150-. Bumper-Rubber

2

75D1-05032

75D1-05032-. Door Assy

2-1

75D1-05212

75D1-05212-.. Door Wa

2-10

S421-080006

S421-080006-.. Washer-Ext. Tooth

2-2

75D1-05222

75D1-05222-.. Glass

2-3

72FA-12100

72FA-12100-.. Door Latch-Lh

2-4

71EH-13140

71EH-13140-.. Handle Assy

2-6

S781-126001

S781-126001-.. Seal

2-7

S771-045320

S771-045320-.. Weather Strip

2-9

S145-080456

S145-080456-.. Screw

21

S031-050206

S031-050206-. Bolt-W/Washer

22

S203-051006

S203-051006-. Nut-Hex

23

75D1-05750

75D1-05750-. Rubber

32

S017-120306

S017-120306-. Bolt-Hex

34

75D1-05740

75D1-05740-. Cover

35

S057-080202

S057-080202-. Bolt-Hex,Flanged

36

S205-101006

S205-101006-. Nut-Hex

37

S441-120006

S441-120006-. Washer-Hardened
