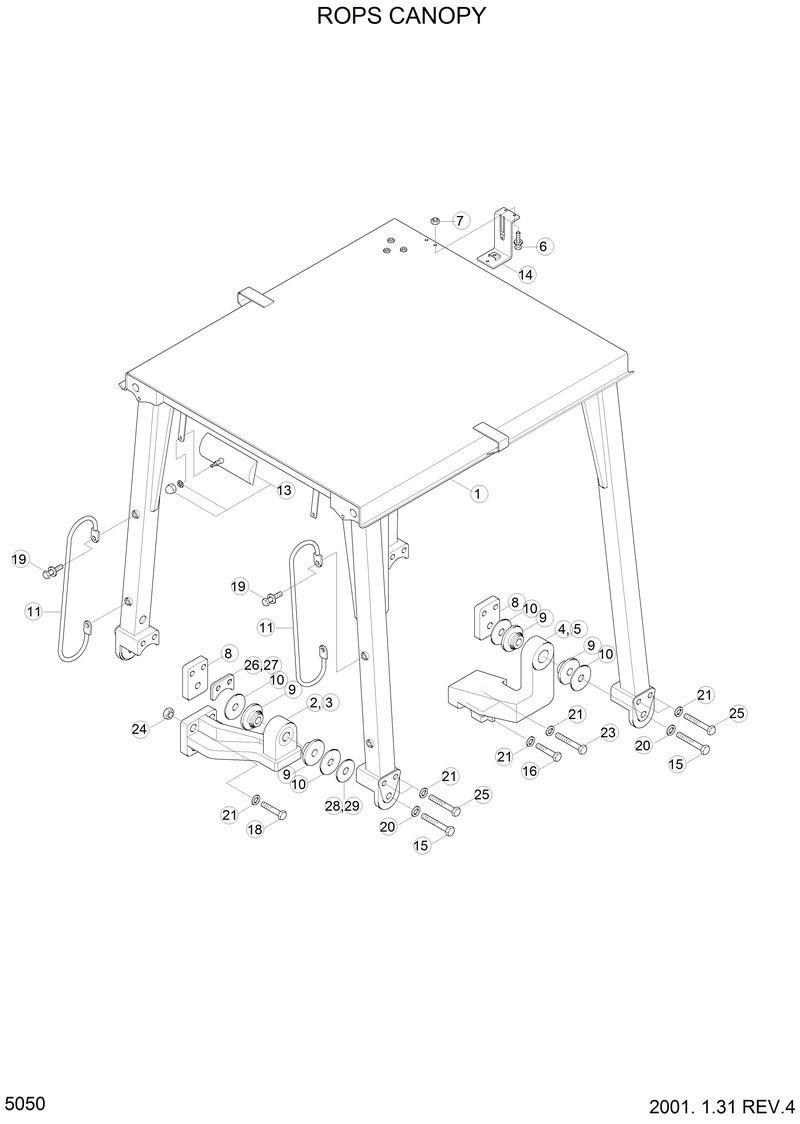

Запчасти Hyundai H70 ROPS CANOPY

75D1-06000

75D1-06000-Canopy Wa

75D1-06011

75D1-06011-Canopy Wa

S017-201052

S017-201052-Bolt-Hex

1

75D1-00013

75D1-00013-Canopy Wa

10

75D1-00100

75D1-00100-Washer-Bushing

11

75D1-00111

75D1-00111-Handrail

13

71L1-3377

71L1-3377-Mirror-Room

14

75D1-01470

75D1-01470-Bracket Wa

15

S017-241552

S017-241552-Bolt-Hex

16

S017-200902

S017-200902-Bolt-Hex

18

S017-200852

S017-200852-Bolt-Hex

19

S037-122552

S037-122552-Bolt-W/Washer

2

75D1-01270

75D1-01270-Bracket Wa-Rh

20

S441-240002

S441-240002-Washer-Hardened

21

S441-200002

S441-200002-Washer-Hardened

23

S017-201054

S017-201054-Bolt-Hex

24

S205-201002

S205-201002-Nut-Hex

25

S017-201552

S017-201552-Bolt-Hex

26

75D1-01380

75D1-01380-Shim(0.5mm)

27

75D1-01390

75D1-01390-Shim(1.0mm)

28

S390-025085

S390-025085-Shim(0.5mm)

29

S391-025085

S391-025085-Shim(1.0mm)

3

75D1-01260

75D1-01260-Bracket Wa-Lh

4

75D1-00130

75D1-00130-Bracket Wa-Lh

5

75D1-00140

75D1-00140-Bracket Wa-Rh

6

S037-102552

S037-102552-Bolt-W/Washer

7

S205-100002

S205-100002-Nut-Hex

8

75D1-00080

75D1-00080-Bracket

9

75D1-00090

75D1-00090-Bushing
