Запчасти Hyundai H70 CAB ELECTRIC 1(#0124-)

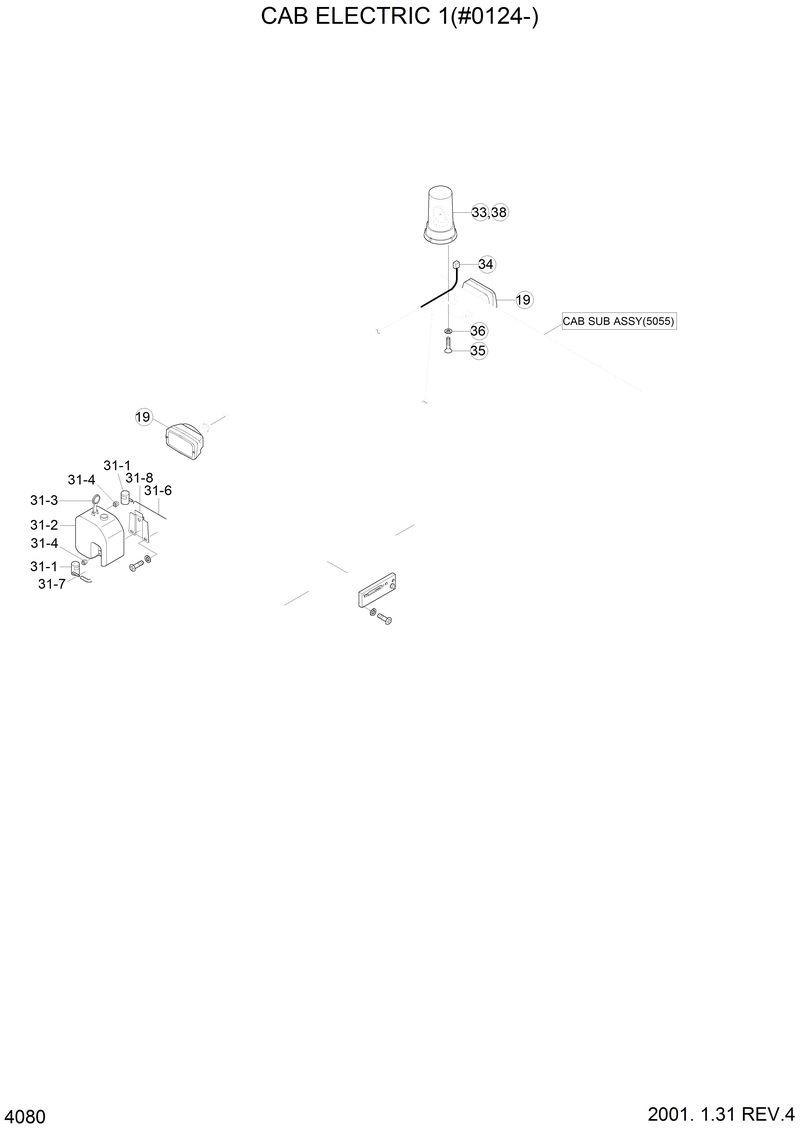

Схема запчастей Hyundai H70 - CAB ELECTRIC 1(#0124-)

Артикул

Название

Примечание

Количество

21E9-20320

21E9-20320-Cassette Radio

21E9-20310

21E9-20310-Cassette Radio

*

@

@-Cab Electric

10

S161-060102

S161-060102-Screw-C/R Rd

11

S403-062002

S403-062002-Washer-Plain

12

21L7-03080

21L7-03080-Switch-Wiper/Washer

15

21L7-03070

21L7-03070-Switch-Wiper/Washer

17

25D1-10230

25D1-10230-Switch Heater

19

21EK-10360

21EK-10360-Head Lamp Assy

19-1

21EK-10240

21EK-10240-. Bulb

25

25D1-20700

25D1-20700-Harness-Cabin Power

31

24L3-30631

24L3-30631-Reservoir-Wash Assy

31-1

21EM-00170

21EM-00170-. Motor & Pump Assy

31-2

24L3-30650

24L3-30650-. Tank

31-3

24L3-30660

24L3-30660-. Cap

31-4

24L3-30670

24L3-30670-. Rubber-Bush

31-5

24L3-30680

24L3-30680-. Hose-Vinyl

31-6

24L3-30690

24L3-30690-. Hose-Vinyl

31-7

S814-102000

S814-102000-. Plug-2p

31-8

24L3-30710

24L3-30710-. Plate

32

S681-290400

S681-290400-Grommet

33

21EK-10330

21EK-10330-Bulb

34

25D1-10500

25D1-10500-Harness-Ext,B/Lamp

35

S161-050162

S161-050162-Screw-Cross R/Rd

35

S161-050162

S161-050162-Screw-Cross R/Rd

36

S403-052002

S403-052002-Washer-Plain

36

S403-052002

S403-052002-Washer-Plain

38

21EK-10140

21EK-10140-Lamp-Beacon

39

25D1-20110

25D1-20110-Plate-Bending

40

S205-051002

S205-051002-Nut-Hex

41

S551-050203

S551-050203-Clamp-Band

42

21EM-10890

21EM-10890-Hose-Washer Tank

43

21EM-30570

21EM-30570-Connector-Tube

44

24L3-00400

24L3-00400-Cable Kit-Extend

8

21E4-0008

21E4-0008-Lighter-Cigar

9

21E4-0011

21E4-0011-Relay-4p

N20

21E9-20330

21E9-20330-Cassette Radio

Выбрано товаров: 37
