Запчасти Hyundai H70 CAB ELECTRIC SUB ASSY(#0124-)

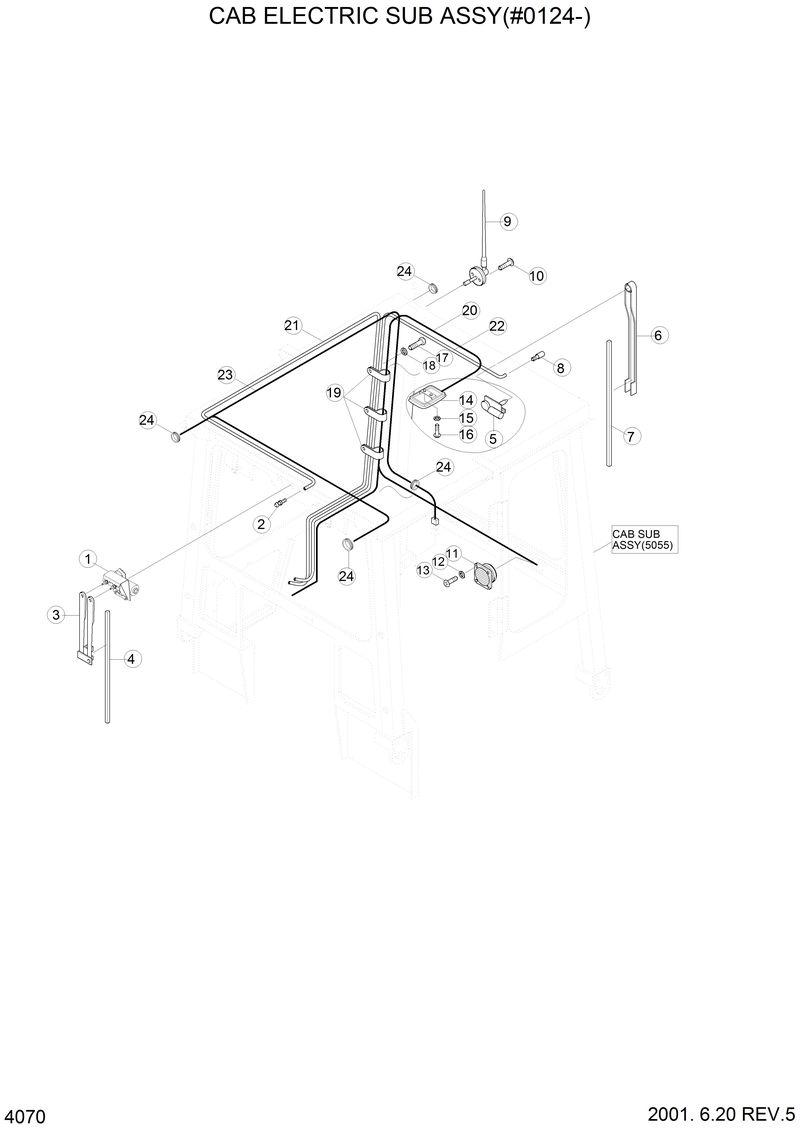

Схема запчастей Hyundai H70 - CAB ELECTRIC SUB ASSY(#0124-)

Артикул

Название

Примечание

Количество

21EM-30581

21EM-30581-Hose-Rubber

25D1-30010

25D1-30010-Hose-Washer Tank

1

25D1-00150

25D1-00150-Wiper Motor-Front

10

S151-040166

S151-040166-Screw

11

21L7-40210

21L7-40210-Speaker

12

S161-040162

S161-040162-Screw

13

S411-040002

S411-040002-Washer-Spring

14

21EH-0011

21EH-0011-Lamp-Room

14-1

21E1-49690

21E1-49690-. Bulb-Room Lamp

15

S151-050166

S151-050166-Screw

16

S411-050006

S411-050006-Washer-Spring

17

S015-080166

S015-080166-Bolt-Hex

18

S411-080006

S411-080006-Washer-Spring

19

S543-100002

S543-100002-Clamp-Tube

2

24L3-41080

24L3-41080-Valve-Wiper

20

25D1-20600

25D1-20600-Wire Harness-Cab

21

21E7-30580

21E7-30580-Hose-Rubber

22

21EM-30580

21EM-30580-Hose-Rubber

23

25D1-00243

25D1-00243-Harness-Cab

24

25D1-10600

25D1-10600-Grommet-Harness

3

25D1-20301

25D1-20301-Wiper Arm-Front

4

25D1-20401

25D1-20401-Wiper Blade-Front

5

24L3-41030

24L3-41030-Wiper Motor-Rear

6

25D1-20500

25D1-20500-Wiper Arm-Rear

7

24L3-41070

24L3-41070-Wiper Blade-Rear

8

24L3-41090

24L3-41090-Nozzle

9

21N6-10410

21N6-10410-Antenna

Выбрано товаров: 27
