Запчасти Hyundai H70 CAB ELECTRIC 2

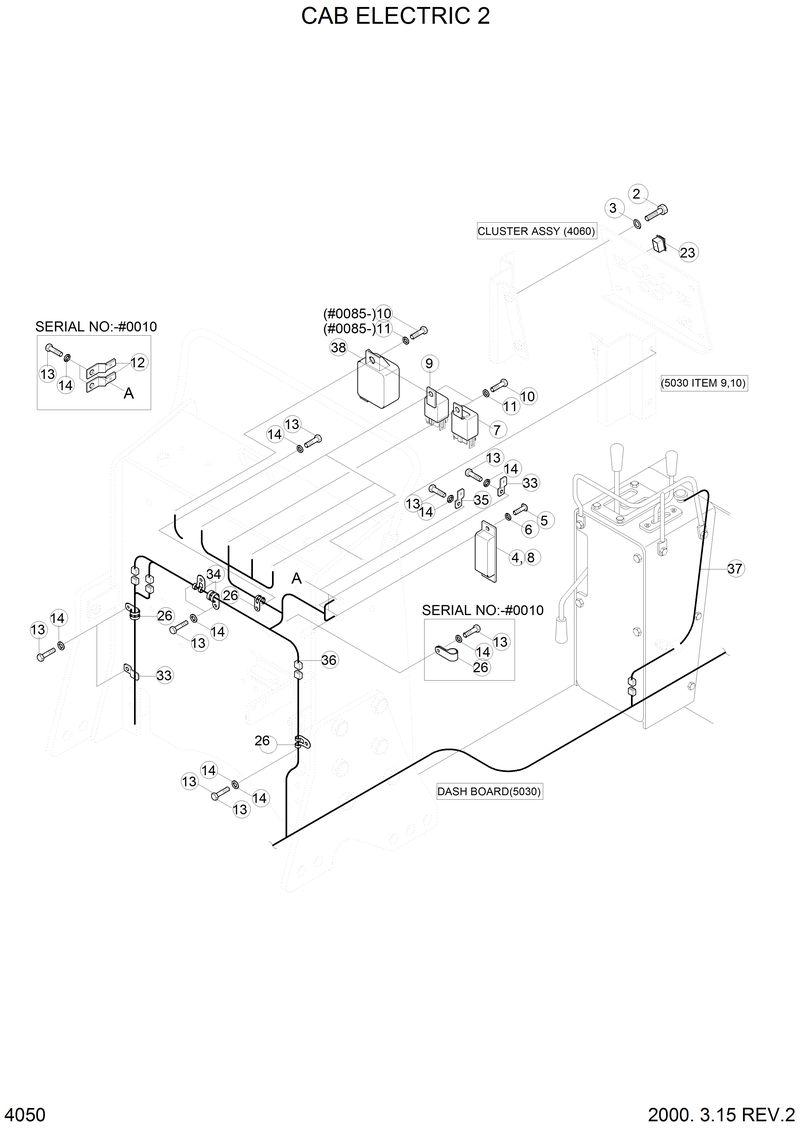

Схема запчастей Hyundai H70 - CAB ELECTRIC 2

Артикул

Название

Примечание

Количество

S017-100162

S017-100162-Bolt-Hex

S015-060162

S015-060162-Bolt-Hex

S015-060162

S015-060162-Bolt-Hex

S017-100162

S017-100162-Bolt-Hex

S403-062002

S403-062002-Washer-Plain

S403-102002

S403-102002-Washer-Plain

S403-102002

S403-102002-Washer-Plain

S593-001302

S593-001302-Clip-Harness

21E9-00170

21E9-00170-Clip-Harness

25D1-00214

25D1-00214-Harness-Main

S403-062002

S403-062002-Washer-Plain

12

21E7-0606

21E7-0606-Plate-Connector

2

S015-080166

S015-080166-Bolt-Hex

23

21E6-30440

21E6-30440-Switch-Beacon

26

S543-160002

S543-160002-Clamp-Tube

3

S403-082006

S403-082006-Washer-Plain

33

25D1-10670

25D1-10670-Clip Assy(4)

34

25D1-10650

25D1-10650-Clip Assy(2)

35

25D1-10660

25D1-10660-Clip Assy(3)

36

25D1-00213

25D1-00213-Harness-Main

37

25D1-10900

25D1-10900-Harness-Ext,Horn Sw

38

21E4-2025

21E4-2025-Warning Buzzer

4

25D2-10081

25D2-10081-Decal-Fuse Box

5

S161-050202

S161-050202-Screw

6

S401-052002

S401-052002-Washer-Plain

7

E125-2545

E125-2545-Relay-5p

8

25D1-00130

25D1-00130-Fuse Box

9

21E4-0011

21E4-0011-Relay-4p

Выбрано товаров: 28
