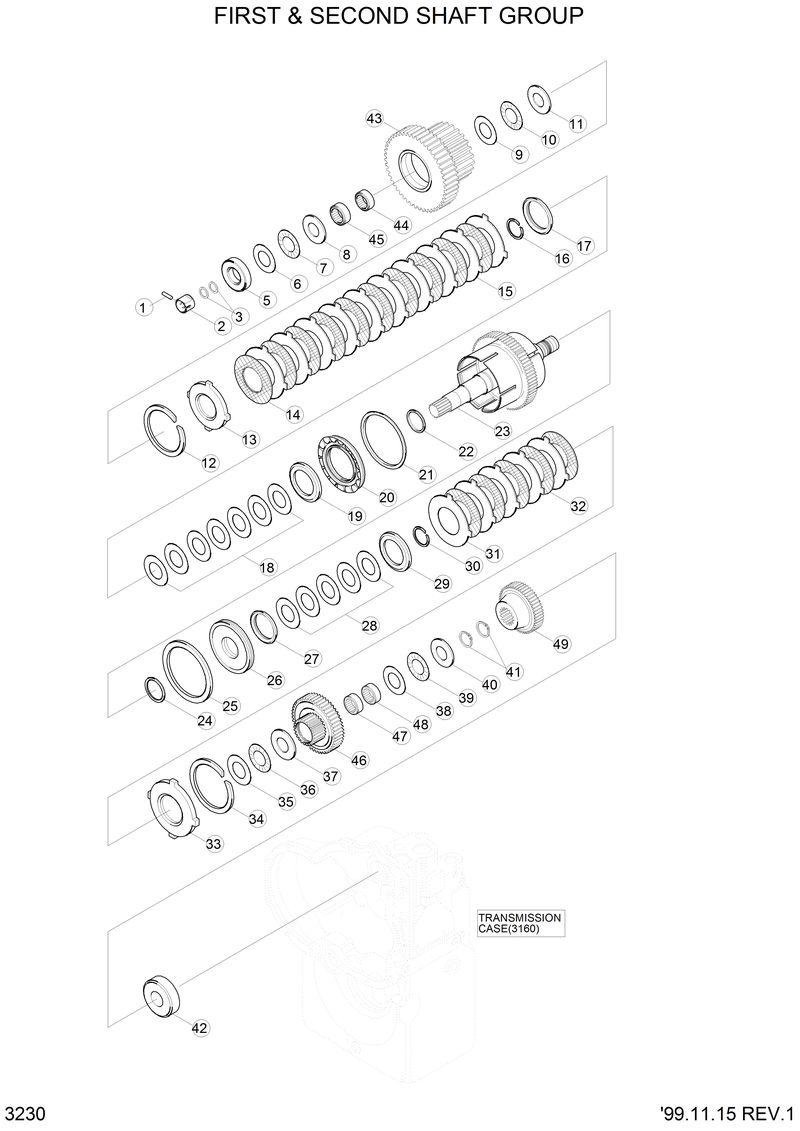

Запчасти Hyundai H70 FIRST & SECOND SHAFT GROUP

1

246408

246408-Screw

18

247663

247663-Disc Spring Assy

2

246512

246512-Sleeve

23

4205495

4205495-Drum & Plug Assy

24

244128

244128-Seal-Inner

24

244128

244128-Seal-Inner

25

244841

244841-Seal-Outer

25

244841

244841-Seal-Outer

26

4203229

4203229-C/Piston & Seals Assy

26

4203229

4203229-C/Piston & Seals Assy

27

245252

245252-Plate

27

245252

245252-Plate

28

247662

247662-Disc Spring Assy

29

246390

246390-Ring-Snap

29

246390

246390-Ring-Snap

3

230416

230416-Ring-Piston

30

245255

245255-Ring-Snap

30

245255

245255-Ring-Snap

31

245238

245238-Clutch-Outer

31

245238

245238-Clutch-Outer

32

245239

245239-Clutch-Inner

32

245239

245239-Clutch-Inner

33

245268

245268-Plate-End

33

245268

245268-Plate-End

34

244426

244426-Ring-Snap

34

244426

244426-Ring-Snap

39

245243

245243-Bearing

39

245243

245243-Bearing

39

245243

245243-Bearing

39

245243

245243-Bearing

40

245244

245244-Washer-Thrust

40

245244

245244-Washer-Thrust

40

245244

245244-Washer-Thrust

40

245244

245244-Washer-Thrust

40

245244

245244-Washer-Thrust

40

245244

245244-Washer-Thrust

40

245244

245244-Washer-Thrust

40

245244

245244-Washer-Thrust

41

5JM35

5JM35-Ring-Snap

42

4205499

4205499-Bearing

43

246469

246469-Gear & Bearing Assy

46

246442

246442-Gear & Bearing Assy

48

245261

245261-Bearing

48

245261

245261-Bearing

48

245261

245261-Bearing

48

245261

245261-Bearing

49

246491

246491-Driven Gear-3rd

5

4204928

4204928-Bearing & Seal Assy
