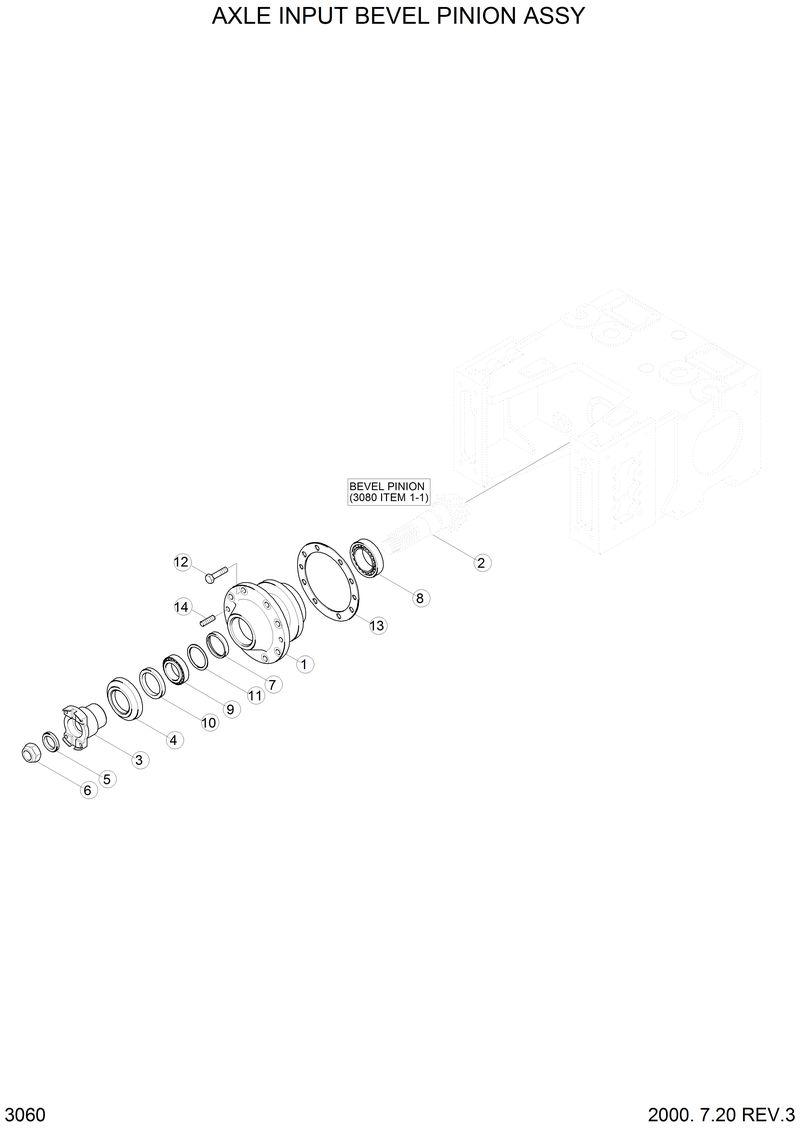

Запчасти Hyundai H70 AXLE INPUT BEVEL PINION ASSY

55D1-40440

55D1-40440-. Shim-Set(0.25§®)

55D1-40341

55D1-40341-. Flange-Coupling

55D1-41870

55D1-41870-. Shim-Set(0.10§®)

55D1-41880

55D1-41880-. Shim-Set(0.25§®)

*

55D1-40310

55D1-40310-Input Bevel Pinion Assy

1

55D1-40320

55D1-40320-. Housing

10

55D1-40410

55D1-40410-. Seal-Oil

11

55D1-40430

55D1-40430-. Shim-Set(0.10§®)

12

55D1-40450

55D1-40450-. Bolt

13

55D1-41860

55D1-41860-. Shim-Set(0.05§®)

2

55D1-40330

55D1-40330-. Pinion-Bevel

3

55D1-40340

55D1-40340-. Flange-Coupling

4

55D1-40350

55D1-40350-. Shield-Dust

5

55D1-40360

55D1-40360-. Washer

6

55D1-40370

55D1-40370-. Nut

7

55D1-40380

55D1-40380-. Spacer-Bearing

8

55D1-42880

55D1-42880-. Bearing-Head

9

55D1-40400

55D1-40400-. Bearing-Tail

N

@

@-Not Individually Supplied

N11

55D1-40420

55D1-40420-. Shim-Set(0.05§®)

N14

55D1-42820

55D1-42820-. Plug-Cork
