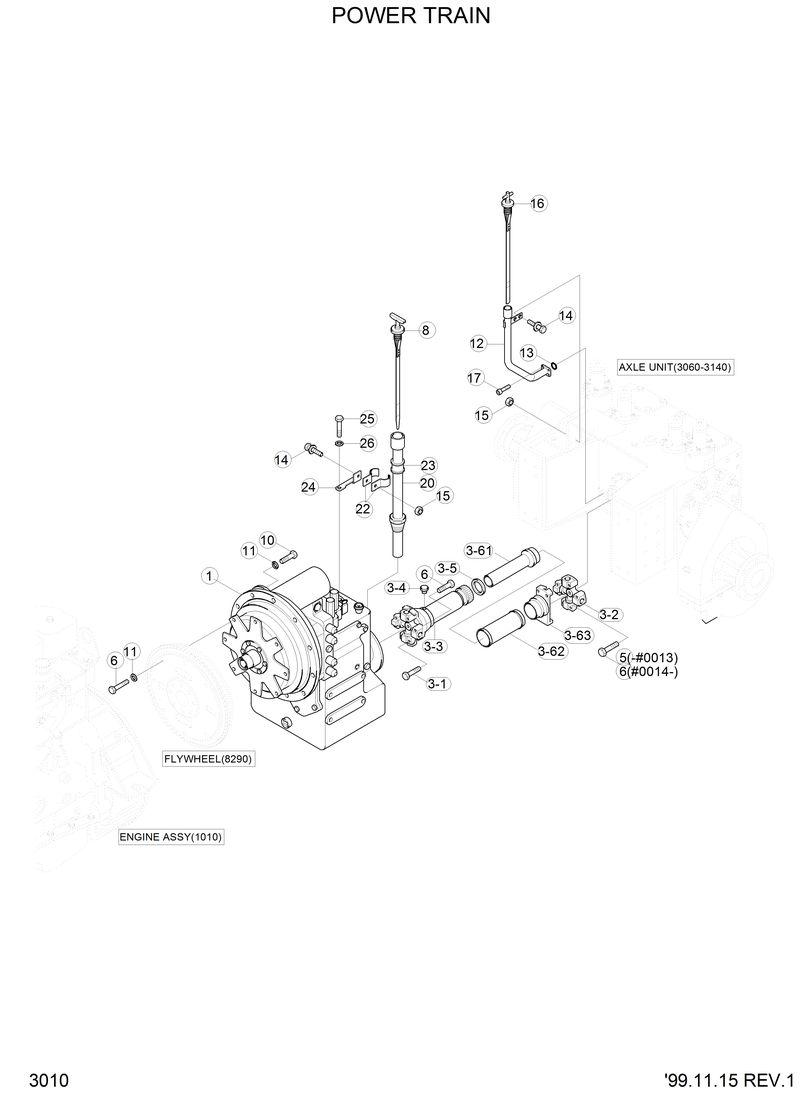

Запчасти Hyundai H70 POWER TRAIN

1

85D1-00010

85D1-00010-Transmission Assy

10

S017-100352

S017-100352-Bolt-Hex

11

S441-100002

S441-100002-Washer-Hardened

12

85D1-00141

85D1-00141-Pipe Wa

13

P590-038001

P590-038001-O-Ring

14

S037-102552

S037-102552-Bolt-W/Washer

15

S207-101002

S207-101002-Nut-Hex

16

85D1-00150

85D1-00150-Dip Stick

17

S107-100252

S107-100252-Bolt-Socket

20

85D1-00220

85D1-00220-Pipe Wa

22

85D1-00210

85D1-00210-Clamp-Set

23

S690-022100

S690-022100-Grommet

24

85D1-00230

85D1-00230-Bracket

25

S087-080122

S087-080122-Bolt-Hex

26

S441-120002

S441-120002-Washer-Hardened

3

85D1-00130

85D1-00130-Shaft-Drive

3-1

103-83UNF

103-83UNF-. Bolt

3-2

1100-5C

1100-5C-. Bearing Assy

3-3

2100-5C200

2100-5C200-. Slip Yoke Assy

3-4

710-PT81

710-PT81-. Screw-Plug

3-5

800-41JK

800-41JK-. Seal Assy

3-6

40AC5C338

40AC5C338-. Slip Shaft Wa

3-61

@

@-.. Shaft-Spline

3-62

@

@-.. Tube

3-63

@

@-.. Yoke-Tube

5

S027-100452

S027-100452-Bolt-Mini Hex Head

6

S088-060282

S088-060282-Bolt-Hex

8

85D1-00201

85D1-00201-Guage-Oil Level
