Запчасти Hyundai H70 LIFT CYLINDER

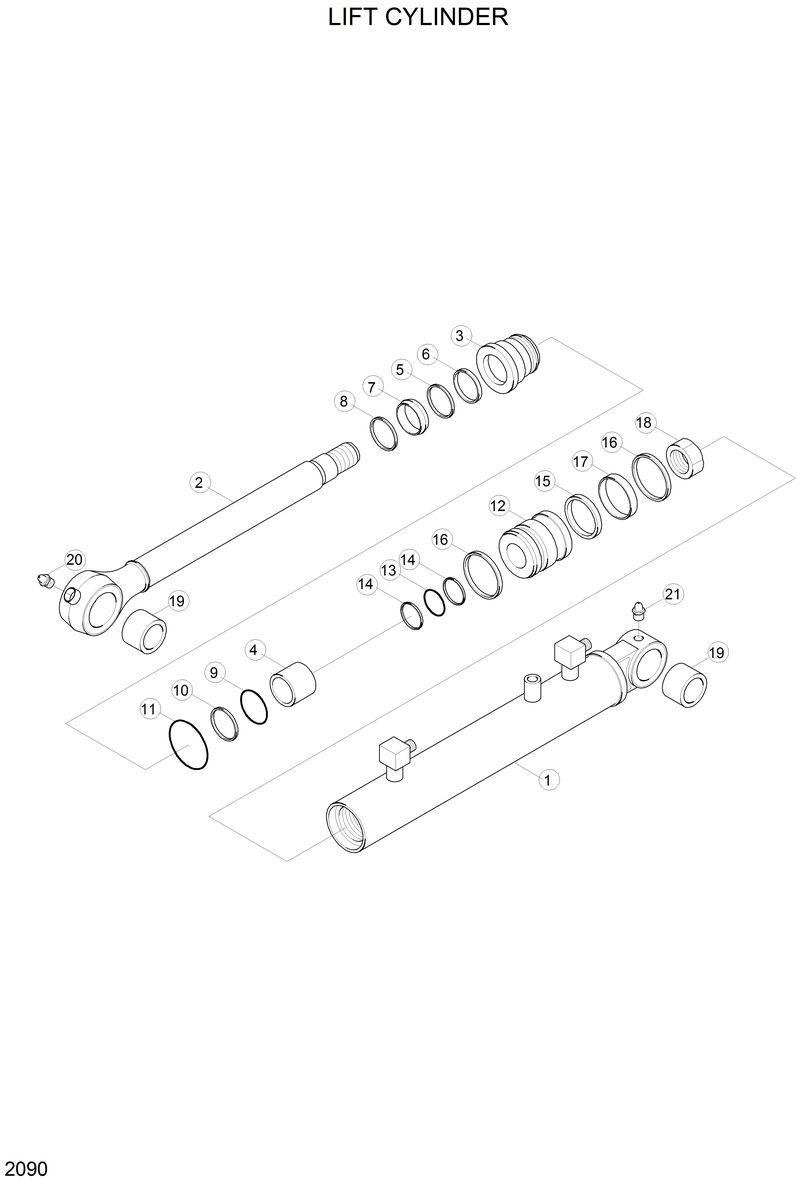

Схема запчастей Hyundai H70 - LIFT CYLINDER

Артикул

Название

Примечание

Количество

1

31Y4-00010

31Y4-00010-. Tube Assy

12

31Y4-00280

31Y4-00280-. Piston

18

31YC-65220

31YC-65220-. Nut-Nylon

19

31YC-12100

31YC-12100-. Bushing-Pin

20

S651-810002

S651-810002-. Nipple-Grease

21

S652-810002

S652-810002-. Nipple-Grease

4

S731-040030

S731-040030-. Bushing-Du

K

31Y4-00290

31Y4-00290-Seal Kit

K10

S642-070003

S642-070003-. Ring-Back Up

K11

S632-075001

S632-075001-. O-Ring

K13

S632-040004

S632-040004-. O-Ring

K14

S642-040003

S642-040003-. Ring-Back Up

K15

Y420-075000

Y420-075000-. Seal-Piston

K16

Y440-075000

Y440-075000-. Ring-Dust

K17

Y310-075100

Y310-075100-. Ring-Wear

K5

Y200-040011

Y200-040011-. Seal-Rod

K6

Y180-040020

Y180-040020-. Ring-Back Up

K7

Y110-040011

Y110-040011-. Wiper-Dust

K8

Y190-052000

Y190-052000-. Ring-Snap

K9

S632-070004

S632-070004-. O-Ring

N*

35D1-10700

35D1-10700-Lift Cylinder

N2

31Y4-00180

31Y4-00180-. Rod Assy

N3

31Y4-00270

31Y4-00270-. Gland

Выбрано товаров: 23
