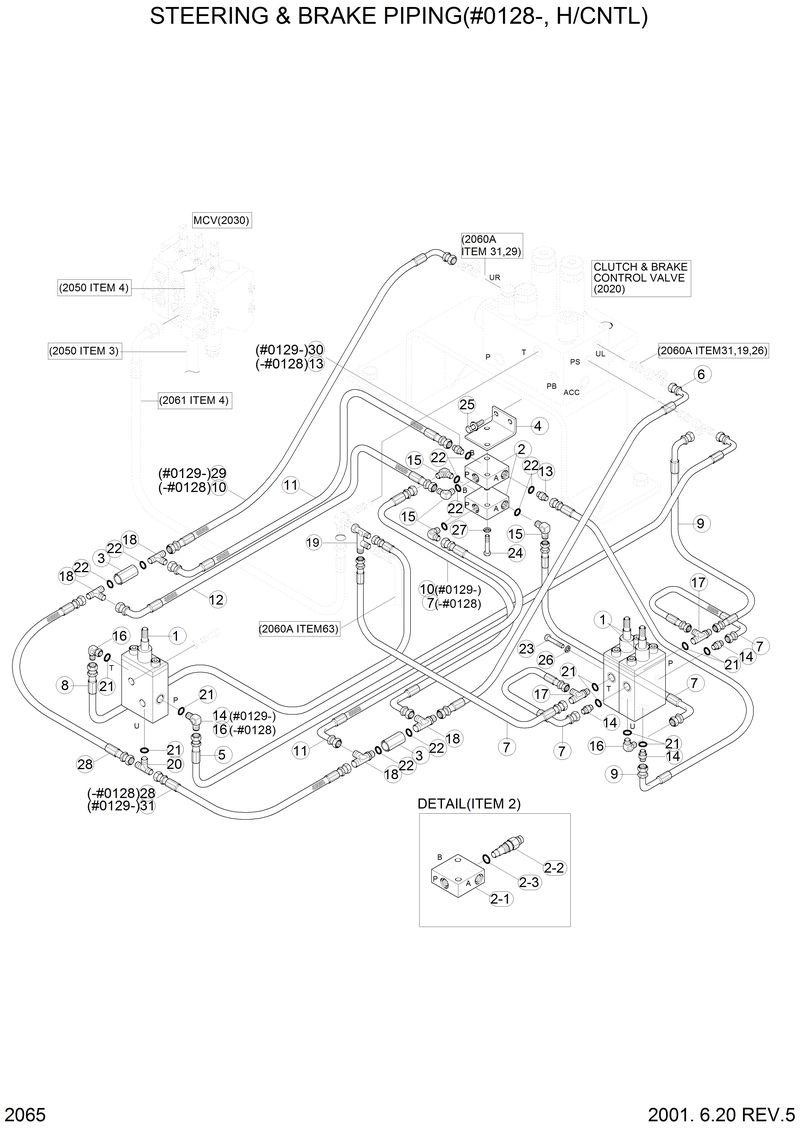

Запчасти Hyundai H70 STEERING & BRAKE PIPING(#0128-, H/CNTL)

P620-043008

P620-043008-Hose Assy-Thd 0x90

P010-310003

P010-310003-Connector

P620-043008

P620-043008-Hose Assy-Thd 0x90

P010-110002

P010-110002-Connector

P010-110002

P010-110002-Connector

P010-310003

P010-310003-Connector

P020-310002

P020-310002-Elbow-90

P020-310002

P020-310002-Elbow-90

P600-043009

P600-043009-Hose Assy-Thd

P600-043009

P600-043009-Hose Assy-Thd

P620-043021

P620-043021-Hose Assy-Thd 0x90

*

@

@-Steer & Brake Piping

1

35D1-30300

35D1-30300-Valve-Foot

10

P620-043011

P620-043011-Hose Assy-Thd 0x90

11

P620-043010

P620-043010-Hose Assy-Thd 0x90

12

P620-043012

P620-043012-Hose Assy-Thd 0x90

15

P020-110001

P020-110001-Elbow-90

17

35D1-30350

35D1-30350-Tee

18

P320-040404

P320-040404-Tee

19

31EM-20250

31EM-20250-Adapter-Tee

2

35D1-30400

35D1-30400-Valve-Shut Off

2-1

35D1-30400BLOCK

35D1-30400BLOCK-. Manifold

2-2

VDP06/NA-E-1

VDP06/NA-E-1-. Valve-Shut Off

2-3

230.00.007.0

230.00.007.0-. Seal

20

35D1-30340

35D1-30340-Tee

21

S611-012001

S611-012001-O-Ring

22

S631-011001

S631-011001-O-Ring

23

S015-060752

S015-060752-Bolt-Hex

24

S015-080752

S015-080752-Bolt-Hex

25

S037-123552

S037-123552-Bolt-W/Washer

26

S411-060002

S411-060002-Washer-Spring

27

S411-080002

S411-080002-Washer-Spring

29

P600-043013

P600-043013-Hose Assy-Thd

3

34L3-01320

34L3-01320-Check Valve

30

P030-110001

P030-110001-Elbow-45

31

P600-043010

P600-043010-Hose Assy-Thd

4

35D1-30411

35D1-30411-Bracket

5

P620-043022

P620-043022-Hose Assy-Thd 0x90

6

P620-043009

P620-043009-Hose Assy-Thd 0x90

8

P620-043023

P620-043023-Hose Assy-Thd 0x90

9

P620-043007

P620-043007-Hose Assy-Thd 0x90
