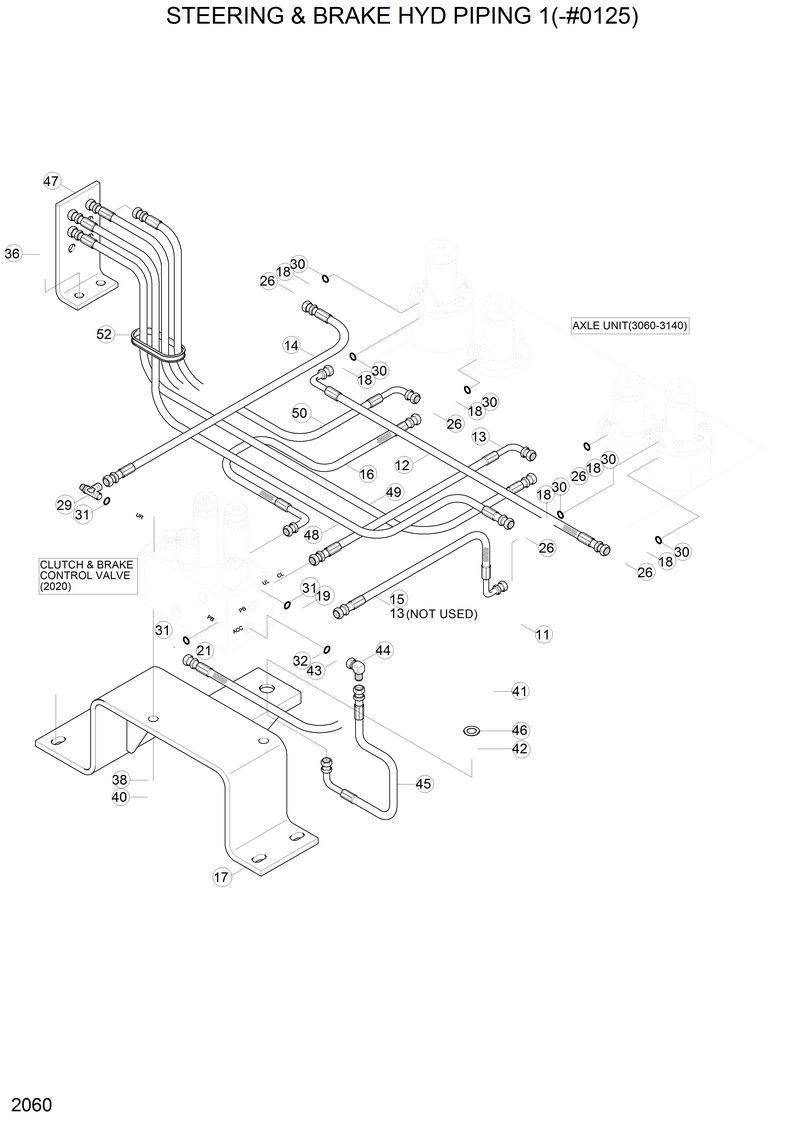

Запчасти Hyundai H70 STEERING & BRAKE HYD PIPING 1(-#0125)

*

@

@-St & Brk Hyd Piping

11

P600-043009

P600-043009-Hose Assy-Thd

12

P620-043014

P620-043014-Hose Assy-Thd 0x90

13

P620-043005

P620-043005-Hose Assy-Thd 0x90

14

P600-043010

P600-043010-Hose Assy-Thd

15

P620-043006

P620-043006-Hose Assy-Thd 0x90

16

P620-043008

P620-043008-Hose Assy-Thd 0x90

17

35D1-30322

35D1-30322-Bracket Wa

18

P010-310001

P010-310001-Connector

19

P010-310003

P010-310003-Connector

21

P020-310002

P020-310002-Elbow-90

26

32E6-10460

32E6-10460-Tee-Swivel

29

35D1-30350

35D1-30350-Tee

30

S611-009001

S611-009001-O-Ring

31

S611-012001

S611-012001-O-Ring

32

S611-016001

S611-016001-O-Ring

35

S017-101202

S017-101202-Bolt-Hex

36

S037-122552

S037-122552-Bolt-W/Washer

38

S441-100002

S441-100002-Washer-Hardened

40

S205-101002

S205-101002-Nut-Hex

41

35D1-11030

35D1-11030-Accumulator

42

35D1-11040

35D1-11040-Connector

43

P010-310005

P010-310005-Connector

44

34E7-03760

34E7-03760-Elbow-Swivel Nut

45

P620-063009

P620-063009-Hose Assy-Thd 0x90

46

P391-080000

P391-080000-Washer-Copper

47

31L8-10190

31L8-10190-Coupling Assy-Screw

48

P600-043023

P600-043023-Hose Assy-Thd

49

P600-043019

P600-043019-Hose Assy-Thd

50

P620-043013

P620-043013-Hose Assy-Thd 0x90

52

S791-060025

S791-060025-Grommet-Plate

53

P620-043012

P620-043012-Hose Assy-Thd 0x90
