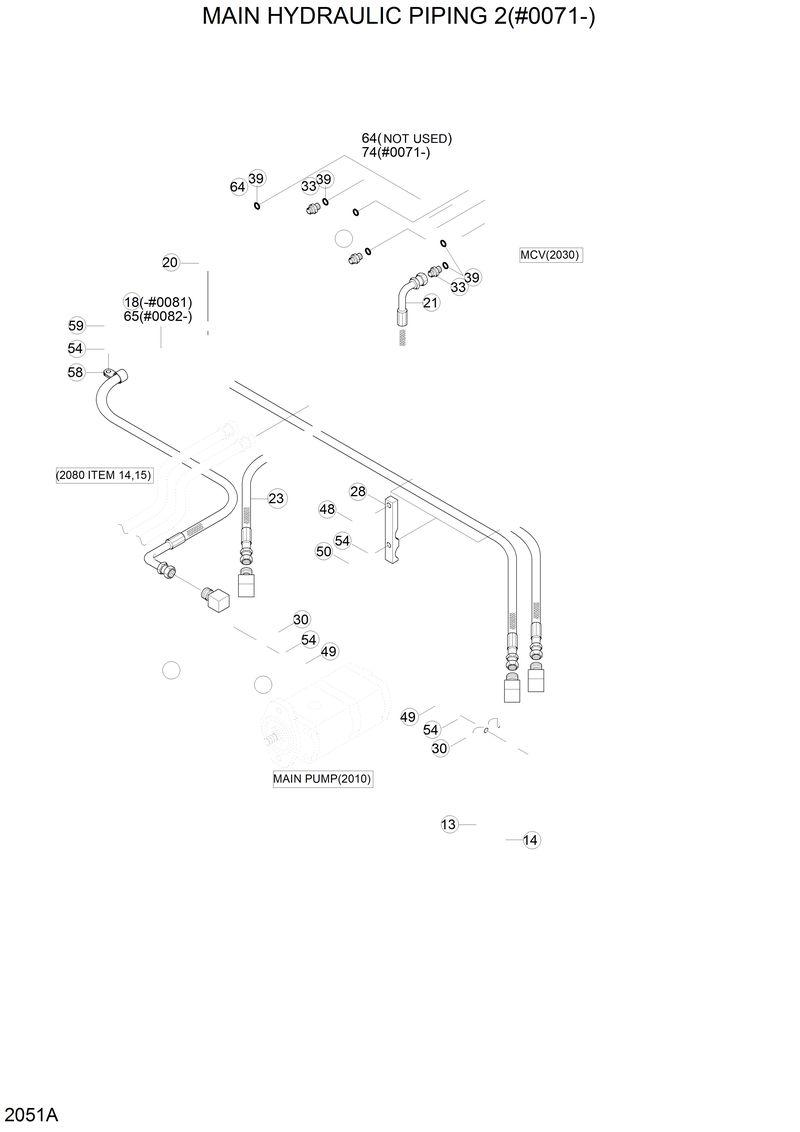

Запчасти Hyundai H70 MAIN HYDRAULIC PIPING 2(#0071-)

P620-085015

P620-085015-Hose Assy-Thd 0x90

P620-085015

P620-085015-Hose Assy-Thd 0x90

P620-085013

P620-085013-Hose Assy-Thd 0x90

11

35D1-11191

35D1-11191-Pipe Wa

12

35D1-11201

35D1-11201-Pipe Wa

13

35D1-11210

35D1-11210-Pipe Wa

14

35D1-11220

35D1-11220-Pipe Wa

15

35D1-11230

35D1-11230-Pipe Wa

16

35D1-11240

35D1-11240-Pipe Wa

20

P620-085023

P620-085023-Hose Assy-Thd 0x90

21

P620-085021

P620-085021-Hose Assy-Thd 0x90

23

P620-085012

P620-085012-Hose Assy-Thd 0x90

27

35D1-10921

35D1-10921-Bracket Wa

28

35D1-11000

35D1-11000-Clamp

29

35D1-11010

35D1-11010-Clamp

30

35D1-10410

35D1-10410-Clamp

33

P010-310008

P010-310008-Connector

39

S611-019001

S611-019001-O-Ring

47

S037-102052

S037-102052-Bolt-W/Washer

48

S037-103052

S037-103052-Bolt-W/Washer

49

S017-100352

S017-100352-Bolt-Hex

50

S017-100552

S017-100552-Bolt-Hex

54

S441-100002

S441-100002-Washer-Hardened

56

S205-101002

S205-101002-Nut-Hex

58

35D1-10420

35D1-10420-Clamp

59

S017-100162

S017-100162-Bolt-Hex

61

35D1-11250

35D1-11250-Plate

62

S037-102552

S037-102552-Bolt-W/Washer

63

P620-085014

P620-085014-Hose Assy-Thd 0x90

64

P105-111084

P105-111084-Connector-Long

65

P620-085016

P620-085016-Hose Assy-Thd 0x90

74

35D1-11310

35D1-11310-Connector
