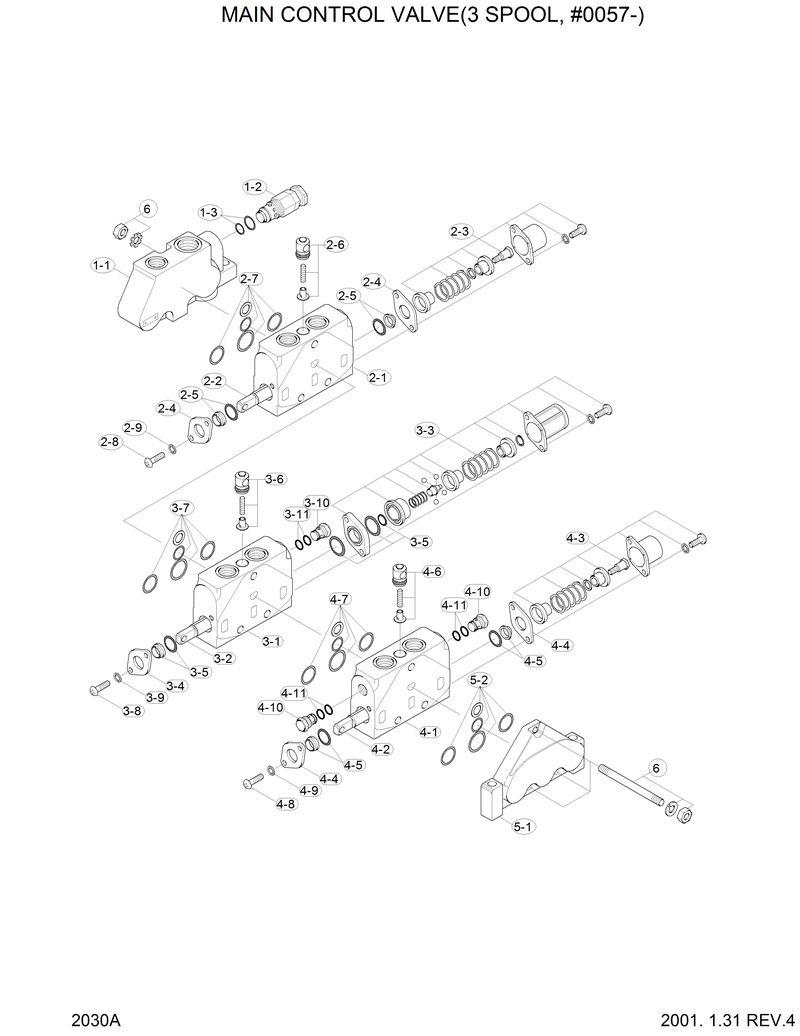

Запчасти Hyundai H70 MAIN CONTROL VALVE(3 SPOOL, #0057-)
№
Артикул
Название
Примечание
Количество
1
3469105001
3469105001-. Cover-Inlet
1-1
3460306402
3460306402-.. Cover-Inlet
1-2
3469002003
3469002003-.. Relief Valve
1-3
35D1-40310
35D1-40310-.. Seal Kit
3
3469102499
3469102499-. Worksection 2
3-3
3469149211
3469149211-.. Mechanism Kit
3-5
35D1-40340
35D1-40340-.. Seal Kit-Spool
4
3469102525
3469102525-. Worksection 3
4-10
3469001002
3469001002-.. Valve Kit-Anti Cavit
4-10
3469001002
3469001002-.. Valve Kit-Anti Cavit
4-11
3469149115
3469149115-.. Seal Kit
4-11
3469149115
3469149115-.. Seal Kit
4-2
@
@-.. Spool
4-2
@
@-.. Spool
4-2
@
@-.. Spool
4-3
3469149174
3469149174-.. Mechanism Kit
4-3
3469149174
3469149174-.. Mechanism Kit
4-4
3460506377
3460506377-.. Retainer-Seal
4-4
3460506377
3460506377-.. Retainer-Seal
4-4
3460506377
3460506377-.. Retainer-Seal
4-5
35D1-40320
35D1-40320-.. Seal Kit-Spool
4-5
35D1-40320
35D1-40320-.. Seal Kit-Spool
4-6
3469149112
3469149112-.. Check Valve Kit
4-6
3469149112
3469149112-.. Check Valve Kit
4-6
3469149112
3469149112-.. Check Valve Kit
4-8
3460505157
3460505157-.. Screw
4-8
3460505157
3460505157-.. Screw
4-8
3460505157
3460505157-.. Screw
4-9
3460505459
3460505459-.. Washer
4-9
3460505459
3460505459-.. Washer
4-9
3460505459
3460505459-.. Washer
5
3469106002
3469106002-. Cover-Outlet
5-1
@
@-.. Housing
5-1
@
@-.. Housing
5-1
@
@-.. Housing
5-1
@
@-.. Housing
5-2
35D1-40330
35D1-40330-.. Seal Kit-Interface
5-2
35D1-40330
35D1-40330-.. Seal Kit-Interface
5-2
35D1-40330
35D1-40330-.. Seal Kit-Interface
5-2
35D1-40330
35D1-40330-.. Seal Kit-Interface
6
3469425303
3469425303-. Stud Assy Kit
N
@
@-Not Individually Supplied
N*
35D1-40012
35D1-40012-Main Control Valve
N2
3469102526
3469102526-. Worksection 1
Выбрано товаров: 44
