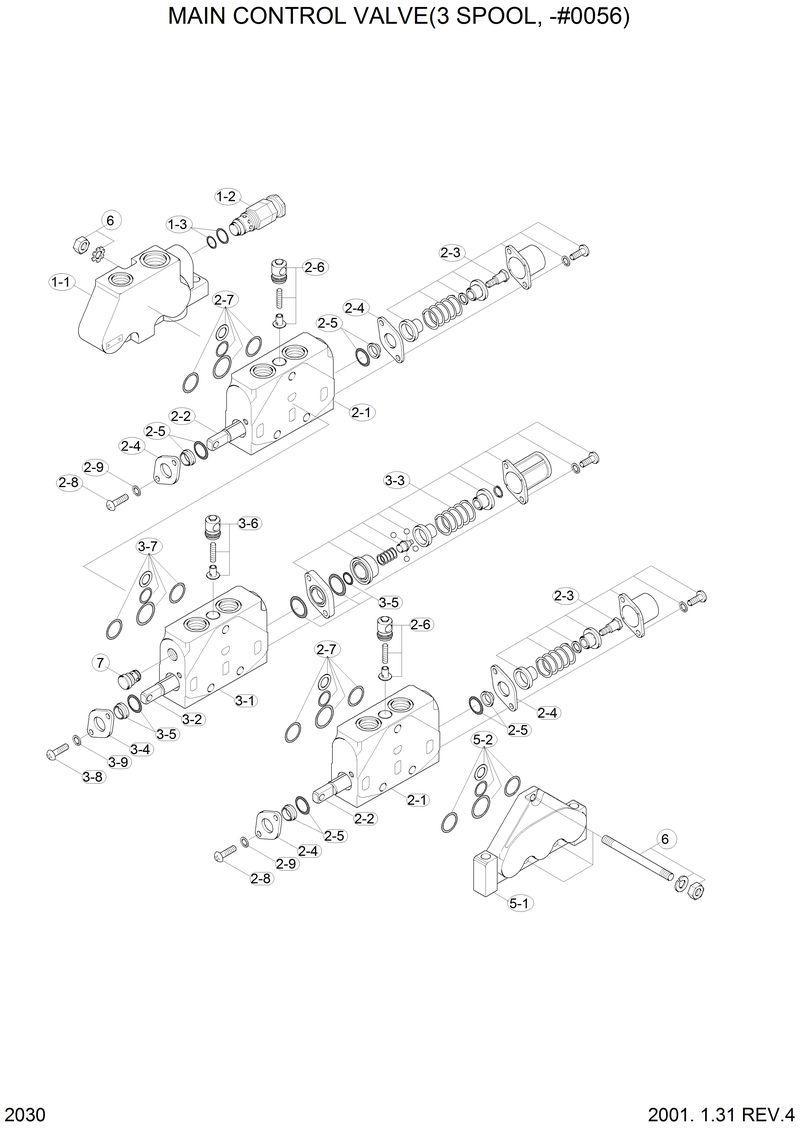

Запчасти Hyundai H70 MAIN CONTROL VALVE(3 SPOOL, -#0056)

1

3469105001

3469105001-. Cover-Inlet

1-1

3460306402

3460306402-.. Cover-Inlet

1-2

3469002003

3469002003-.. Relief Valve

1-3

35D1-40310

35D1-40310-.. Seal Kit

2

3469102498

3469102498-. Worksection 1

2-3

3469149174

3469149174-.. Mechanism Kit

2-5

35D1-40320

35D1-40320-.. Seal Kit-Spool

3

3469102499

3469102499-. Worksection 2

3-2

@

@-.. Spool

3-2

@

@-.. Spool

3-3

3469149211

3469149211-.. Mechanism Kit

3-4

3460506377

3460506377-.. Retainer-Seal

3-4

3460506377

3460506377-.. Retainer-Seal

3-5

35D1-40340

35D1-40340-.. Seal Kit-Spool

3-6

3469149112

3469149112-.. Check Valve Kit

3-6

3469149112

3469149112-.. Check Valve Kit

3-8

3460505157

3460505157-.. Screw

3-8

3460505157

3460505157-.. Screw

3-9

3460505459

3460505459-.. Washer

3-9

3460505459

3460505459-.. Washer

5

3469106002

3469106002-. Cover-Outlet

5-1

@

@-.. Housing

5-1

@

@-.. Housing

5-1

@

@-.. Housing

5-2

35D1-40330

35D1-40330-.. Seal Kit-Interface

5-2

35D1-40330

35D1-40330-.. Seal Kit-Interface

5-2

35D1-40330

35D1-40330-.. Seal Kit-Interface

6

3469425303

3469425303-. Stud Assy Kit

7

3469001002

3469001002-Valve Kit-Anti Cavit

N

@

@-Not Individually Supplied

N*

35D1-40011

35D1-40011-Main Control Valve
