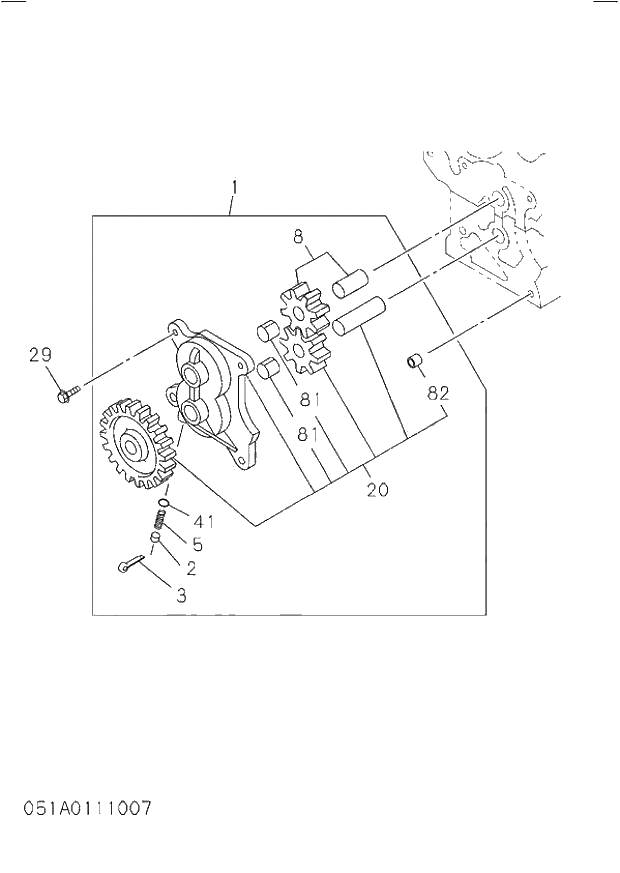

Запчасти Hitachi ZW250 051_OIL PUMP AND OIL STRAINER. 051_OIL PUMP AND OIL STRAINER.

1

8943904143

PUMP ASM; OIL

200508-

1шт.

2

5131650040

SEAT; SPR

200508-

1шт.

3

9081040300

PIN; SPLIT

200508-

1шт.

5

5095800980

SPRING; COIL

200508-

1шт.

8

8976021150

GEAR; DRIVEN,OIL PUMP

200508-

1шт.

20

8976021321

GEAR; DRIVE,OIL PUMP

200508-

1шт.

29

280808250

BOLT; OIL PUMP

A 200508-200512

4шт.

29

280508250

BOLT; OIL PUMP

200601-

4шт.

41

5098430030

BALL; OIL RELIEF VLV

200508-

1шт.

50

8943993980

GASKET; OIL PIPE,STRAINER TO PUMP

200508-

1шт.

051(B)

1133139471

STRAINER & PIPE ASM; OIL

200508-

1шт.

63

280808140

BOLT; OIL PIPE,STRAINER TO PUMP

200508-

2шт.

81

8943935961

BUSHING; GEAR SHAFT,OIL PUMP

200508-

2шт.

82

9131190220

DOWEL; OIL PUMP

200508-

2шт.

117

8943994881

BOLT; STAY TO CRANKCASE

200508-

1шт.

117

8943996691

BOLT; STAY TO CRANKCASE

200508-

1шт.
