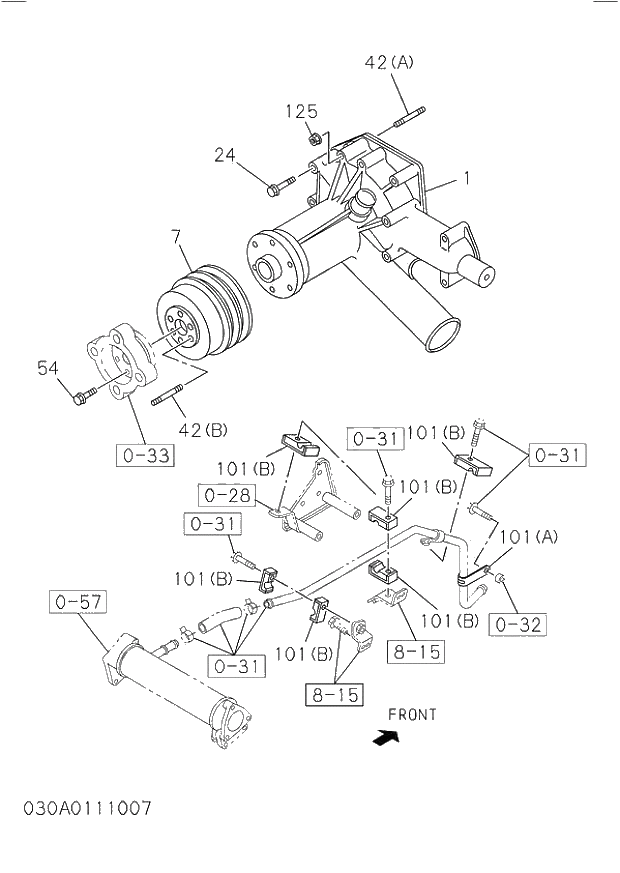

Запчасти Hitachi ZW250 030_WATER PUMP AND CORROSION RESISTOR. 030_WATER PUMP AND CORROSION RESISTOR.

1

1136501333

PUMP ASM; WATER,W/GASKET

200508-

1шт.

3

1136140211

GASKET; PUMP TO C/BL

200508-

1шт.

4

1878137360

REPAIR KIT; WATER PUMP

200508-

1шт.

7

1136412071

PULLEY; WATER PUMP

200508-

1шт.

8

1136390290

THROWER; DUST,WATER PUMP

200508-

1шт.

9

9091801680

RING; SNAP,WATER PUMP

200508-

1шт.

010(A)

1098003020

BEARING; WATER PUMP

200508-

1шт.

010(B)

1098003030

BEARING; WATER PUMP

200508-

2шт.

11

1136340440

SPACER; BRG,WATER PUMP

200508-

1шт.

17

8943920900

SEAL UNIT; WATER PUMP

200508-

1шт.

18

1136210610

IMPELLER; WATER PUMP

200508-

1шт.

19

8981917130

GASKET; COVER TO BODY

200508-

1шт.

20

1136130520

COVER; WATER PUMP

A 200508-201105

1шт.

20

8981866300

COVER; WATER PUMP

201106-

1шт.

24

280808800

BOLT; WATER PUMP

A 200508-200512

5шт.

24

280858110

BOLT; WATER PUMP

A 200508-200512

3шт.

24

280508800

BOLT; WATER PUMP

200601-

5шт.

24

280558110

BOLT; WATER PUMP

200601-

3шт.

25

1136420810

CENTER; WATER PUMP

200508-

1шт.

28

1095033090

WASHER; WATER PUMP

200508-

1шт.

29

1136310930

SHAFT; WATER PUMP

200508-

1шт.

042(A)

9041108550

STUD; WATER PUMP

A 200508-200604

1шт.

042(A)

410108550

STUD; WATER PUMP

200605-

1шт.

54

280810250

BOLT; PULLEY

A 200508-200512

6шт.

54

280510250

BOLT; PULLEY

200601-

6шт.

59

1112290190

DOWEL; WATER PUMP

200508-200603

2шт.

65

9030908200

SCREW; COVER,WATER PUMP

200508-

2шт.

101(A)

8980257870

CLIP; WATER PIPE

200508-

1шт.

101(B)

1097012840

CLIP; WATER PIPE

200508-

6шт.

117

1096613750

CONNECTOR; BYPASS

200508-200603

1шт.

125

911501080

NUT; WATER PUMP

200508-200602

1шт.

125

911501100

NUT; WATER PUMP

A 200508-200602

1шт.

125

911801080

NUT; WATER PUMP

200603-

1шт.

125

911801100

NUT; WATER PUMP

200603-

1шт.
