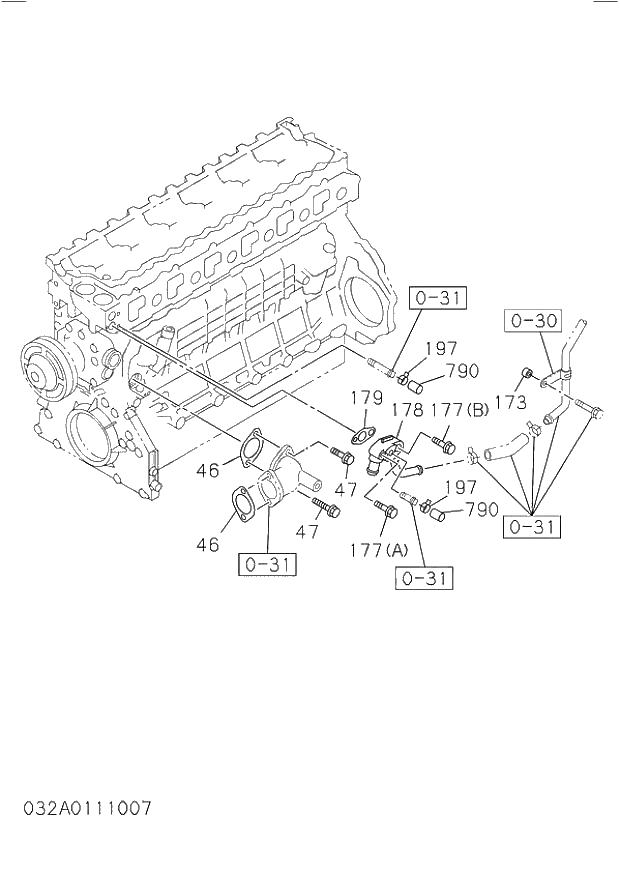

Запчасти Hitachi ZW220 032_WATER PIPING; ENGINE. 6HK1-XYWT03 DIESEL ENGINE 6HK1 PARTS CATALOG

46

1136140231

GASKET; WATER DUCT,TO OIL COOLER

200508-

2шт.

47

280808600

BOLT; DUCT,TO OIL COOLER

A 200508-200512

2шт.

47

286808250

BOLT; DUCT,TO OIL COOLER

A 200508-200512

2шт.

47

280508600

BOLT; DUCT,TO OIL COOLER

200601-

2шт.

47

286508250

BOLT; DUCT,TO OIL COOLER

200601-

2шт.

173

5136420770

SPACER; WATER PIPE TO BRKT

200508-

1шт.

177(A)

280808700

BOLT; WATER DUCT

A 200508-200512

1шт.

177(A)

280508700

BOLT; WATER DUCT

200601-

1шт.

177(B)

288816700

BOLT; WATER DUCT

A 200508-200512

1шт.

177(B)

288516700

BOLT; WATER DUCT

200601-201009

1шт.

177(B)

288616700

BOLT; WATER DUCT

201010-

1шт.

178

1137105890

DUCT; WATER,BYPASS

200508-

1шт.

179

1136140241

GASKET; WATER DUCT

200508-

1шт.
