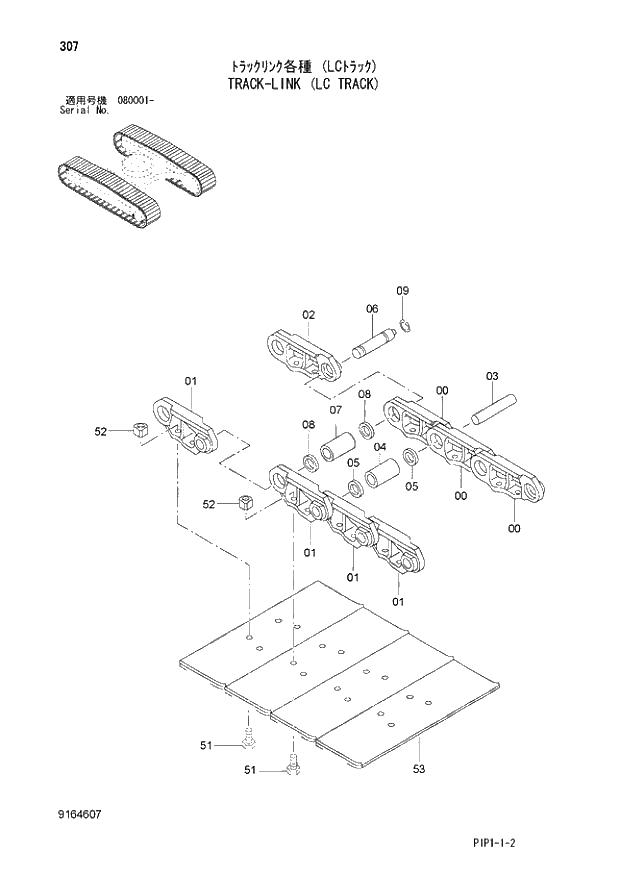

Запчасти Hitachi ZX70-3 307 TRACK-LINK (LC TRACK) 02 UNDERCARRIAGE

9164608

TRACK-LINK ASS'Y (450G)

2шт.

9164610

TRACK-LINK ASS'Y (600G)

2шт.

9164616

TRACK-LINK ASS'Y (450F)

2шт.

9164618

TRACK-LINK ASS'Y (500A)

2шт.

9215375

TRACK-LINK ASS'Y (600A)

2шт.

9164620

TRACK-LINK ASS'Y (700A)

2шт.

00-09

9163908

* TRACK-LINK ASS'Y

1шт.

0

1023762

** TRACK-LINK;B

39шт.

1

1023763

** TRACK-LINK;B

40шт.

2

4382097

** TRACK-LINK;M

1шт.

3

4378885

** PIN

39шт.

4

3077925

** BUSHING

39шт.

5

4453704

** SEAL;DUST

78шт.

6

4382098

** PIN;MASTER

1шт.

7

3077926

** BUSHING;MASTER

1шт.

8

4378888

** COLLAR

2шт.

9

4382100

** RING

1шт.

51

4378884

* BOLT;SHOE (450G,600G)

160шт.

51

4262586

* BOLT;SHOE (450F)

160шт.

51

4167784

* BOLT;SHOE

160шт.

52

4262587

* NUT

160шт.

53

2040402

* SHOE;GROUSER (450G)

40шт.

53

2041367

* SHOE;GROUSER (600G)

40шт.

53

2041377

* SHOE;FLAT (450F)

40шт.

53

2041369

* SHOE;TRIANGLE (500A)

40шт.

53

2046261

* SHOE;TRIANGLE (600A)

40шт.

53

2041373

* SHOE;TRIANGLE (700A)

40шт.
