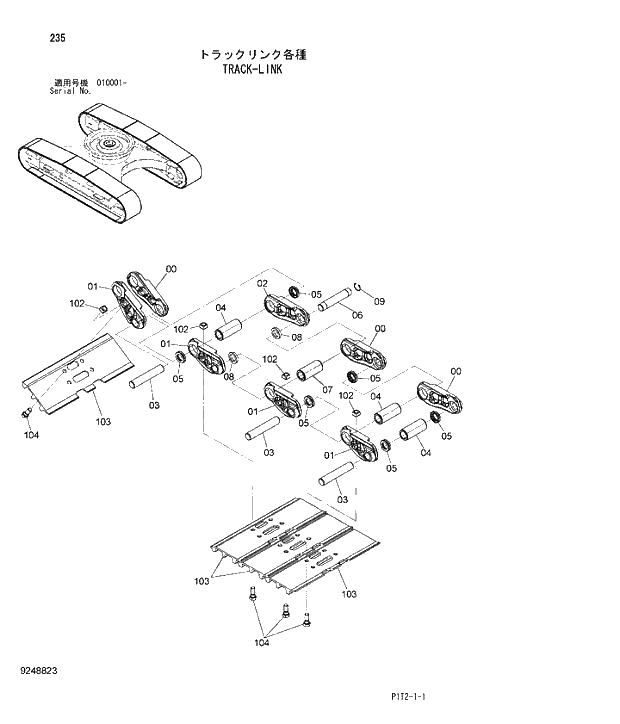

Запчасти Hitachi ZX180W-3 235 TRACK-LINK. 02 UNDERCARRIAGE

9250494

TRACK-LINK ASS'Y (500G)

2шт.

9248705

TRACK-LINK ASS'Y (600G)

2шт.

9264202

TRACK-LINK ASS'Y (700G)

2шт.

9264203

TRACK-LINK ASS'Y (800G)

2шт.

9264204

TRACK-LINK ASS'Y (900G)

2шт.

9263744

TRACK-LINK ASS'Y (600F)

2шт.

9263745

TRACK-LINK ASS'Y (760A)

2шт.

9263746

TRACK-LINK ASS'Y (900A)

2шт.

00-09

9248706

* TRACK-LINK-ASSY

1шт.

00

0005251

** TRACK-LINK;B

45шт.

01

0005252

** TRACK-LINK;B

46шт.

02

4633367

** TRACK-LINK;M

1шт.

03

4314671

** PIN

45шт.

04

4386609

** BUSHING

45шт.

05

4408124

** SEAL

90шт.

06

4267743

** PIN;MASTER

1шт.

07

4345302

** BUSHING;MASTER

1шт.

08

4379310

** COLLAR

2шт.

09

4192666

** RING

1шт.

102

4255638

* NUT

184шт.

103

2052413

* SHOE;GROUSER (500G)

46шт.

103

2050647

* SHOE;GROUSER (600G)

46шт.

103

2053495

* SHOE;GROUSER (700G)

46шт.

103

2053496

* SHOE;GROUSER (800G)

46шт.

103

2053497

* SHOE;GROUSER (900G)

46шт.

103

1017202

* SHOE;FLAT (600F)

46шт.

103

1023719

* SHOE;TRIANGLE (760A)

46шт.

103

1017444

* SHOE;TRIANGLE (900A)

46шт.

104

4659287

* BOLT;SHOE

184шт.

104

3052408

* BOLT;SHOE (600F)

184шт.

104

4648735

* BOLT;SHOE (760A,900A)

184шт.
