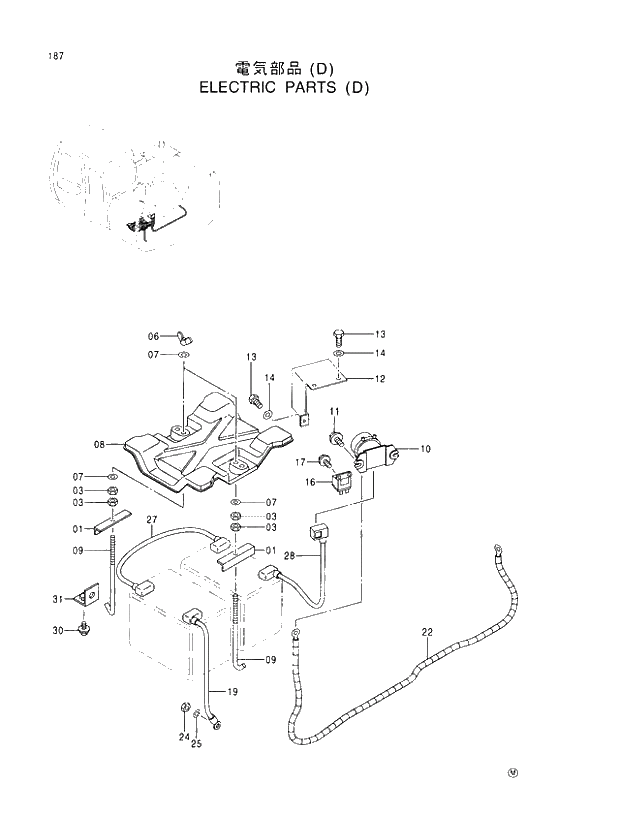

Запчасти Hitachi EX100-5 187 ELECTRIC PARTS (D) UPPERSTRUCTURE

01

4257035

SUPPORT

2шт.

03

J950010

NUT

4шт.

06

M570010

NUT;WING

2шт.

07

A590110

WASHER;PLANE

4шт.

08

4351057

COVER;BATTERY

1шт.

09

4359331

BOLT;HOOK

2шт.

10

4255762

RELAY;BATTERY

1шт.

11

J020830

BOLT;SEMS

2шт.

12

3056019

COVER

1шт.

13

J900816

BOLT

3шт.

14

A590108

WASHER;PLANE

3шт.

16

4251587

RELAY

1шт.

17

J020620

BOLT;SEMS

2шт.

19

4258420

HARNESS;WIRE(BATTERY EARTH)

1шт.

22

4341875

HARNESS;WIRE(BATTERY RELAY TO STARTER)

1шт.

24

J950010

NUT

1шт.

25

A590910

WASHER;SPRING

1шт.

27

4350738

HARNESS;WIRE(BATTERY TO BATTERY)

1шт.

28

4350737

HARNESS;WIRE(BATTERY TO BATTERY RELAY)

1шт.

30

J011025

BOLT;SEMS

1шт.

31

9746365

BRACKET

1шт.
