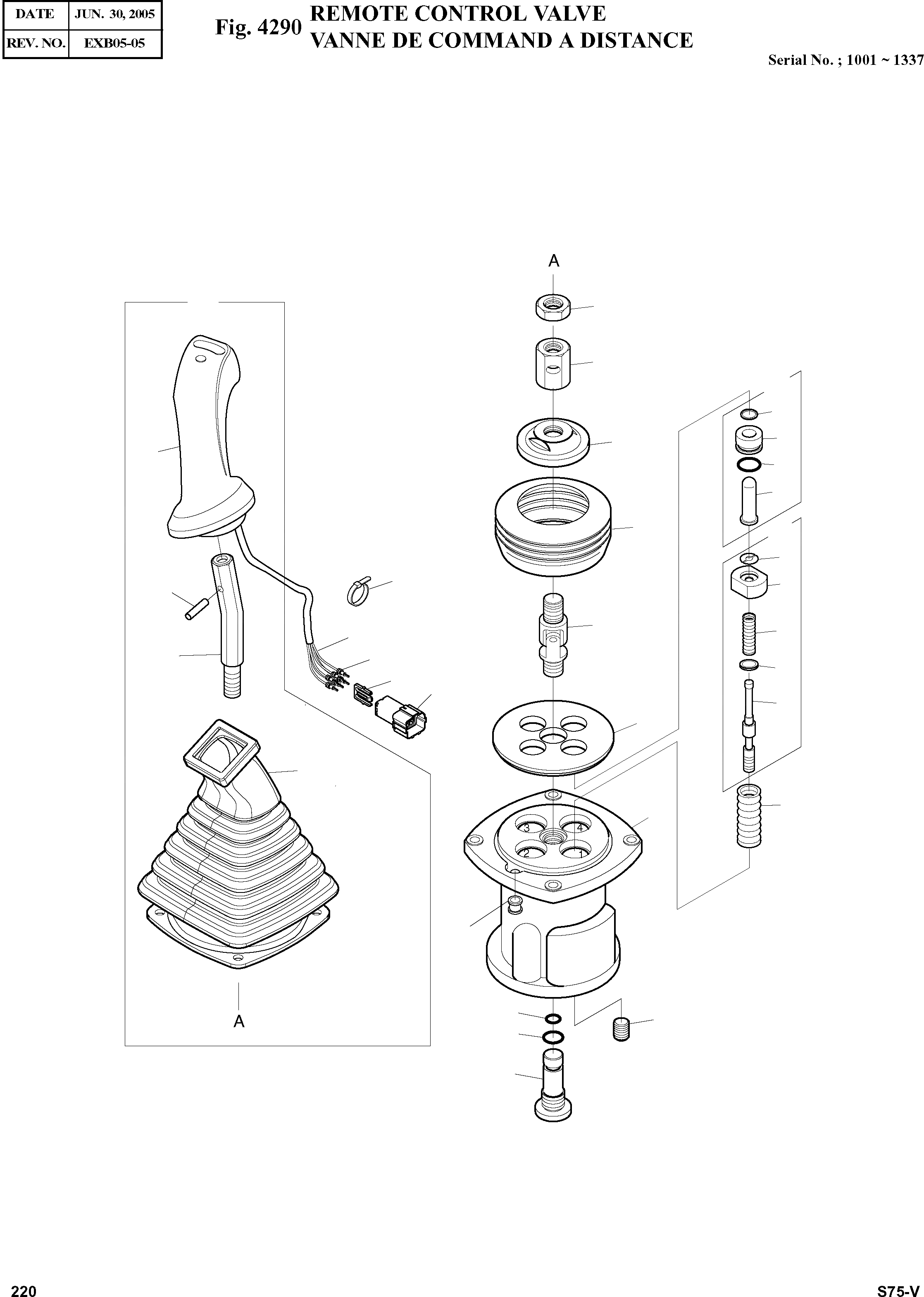

Запчасти Doosan Daewoo REMOTE CONTROL VALVE HYDRAULIC PARTS

-

420-00434

VALVE;REMOCON(LH)

SERIAL: 1001-1337

1шт.

-

420-00435

VALVE;REMOCON(RH)

SERIAL: 1001-1337

1шт.

1

J95C1001

CASE

desc: CARTER

1шт.

2

WPT18

PLUG PT 1/8

desc: BOUCHON

4шт.

3

J95C1002

PLUG PF3/8

desc: BOUCHON

1шт.

4

P0014

O-RING P14

desc: JOINT TORIQUE

1шт.

5

J95C1003

SPOOL

desc: BOBINE

4шт.

6

J95C1004

SHIM

desc: CALE

4шт.

7

JA2L8001

SPRING

desc: RESSORT

4шт.

8

J95C1006

SEAT;SPRING

desc: SIEGE

4шт.

9

J24D2011

STOPPER

desc: ARRET

4шт.

10

J95C1007

SPRING

desc: RESSORT

4шт.

11

J95C1008

PLUG

desc: BOUCHON

4шт.

12

RSY10

ROD SEAL

desc: JOINT D'HUILE

4шт.

13

S8000205

O-RING

desc: JOINT TORIQUE

4шт.

14

J95C1009

ROD;PUSH

desc: TIGE DE POUSSOIR

4шт.

15

JA1G1002

PLATE

desc: PLAQUE

1шт.

16

J97A5018

BOOT

desc: BOTTE

1шт.

17

J95C1012

JOINT ASS'Y

desc: ENSEMBLE DE JOINT

1шт.

18

JA1G1004

PLATE;SWASH

desc: PLAQUE

1шт.

19

J95C1014

NUT;HEX

desc: ECROU

1шт.

20

HNM14-1

NUT M14

desc: ECROU

1шт.

21

P0010A

O-RING

desc: JOINT TORIQUE

1шт.

22

JA1D2001

BAR;HANDLE

desc: BARRE

1шт.

23

JA1D2002

BOOT

desc: BOTTE

1шт.

24

SP0528

PIN;SPRING

desc: GOUPILLE ELASTIQUE

1шт.

25

JA0E3026

HANDLE ASS'Y

desc: POIGNEE

1шт.

26

JA1G1003

BUSHING

desc: DOUILLE

1шт.

27

-

TERMINAL

SC: D

4шт.

28

-

WIRE;SEAL

SC: D

4шт.

29

SWP6PT

HOUSING

desc: CARTER

1шт.

30

SWP6P

HOLDER;REAR

desc: SUPPORT

1шт.

31

J97A1003

CLIP;BAND

desc: CLIP

8шт.

32

JA1J2001

SPOOL KIT

desc: KIT DE TRAITEMENT DIFFERE

2шт.

33

JA1G3002

PLUG KIT

desc: KIT DE PRISE

2шт.

34

JA2L8002

HANDLE KIT

desc: POIGNEE

1шт.
