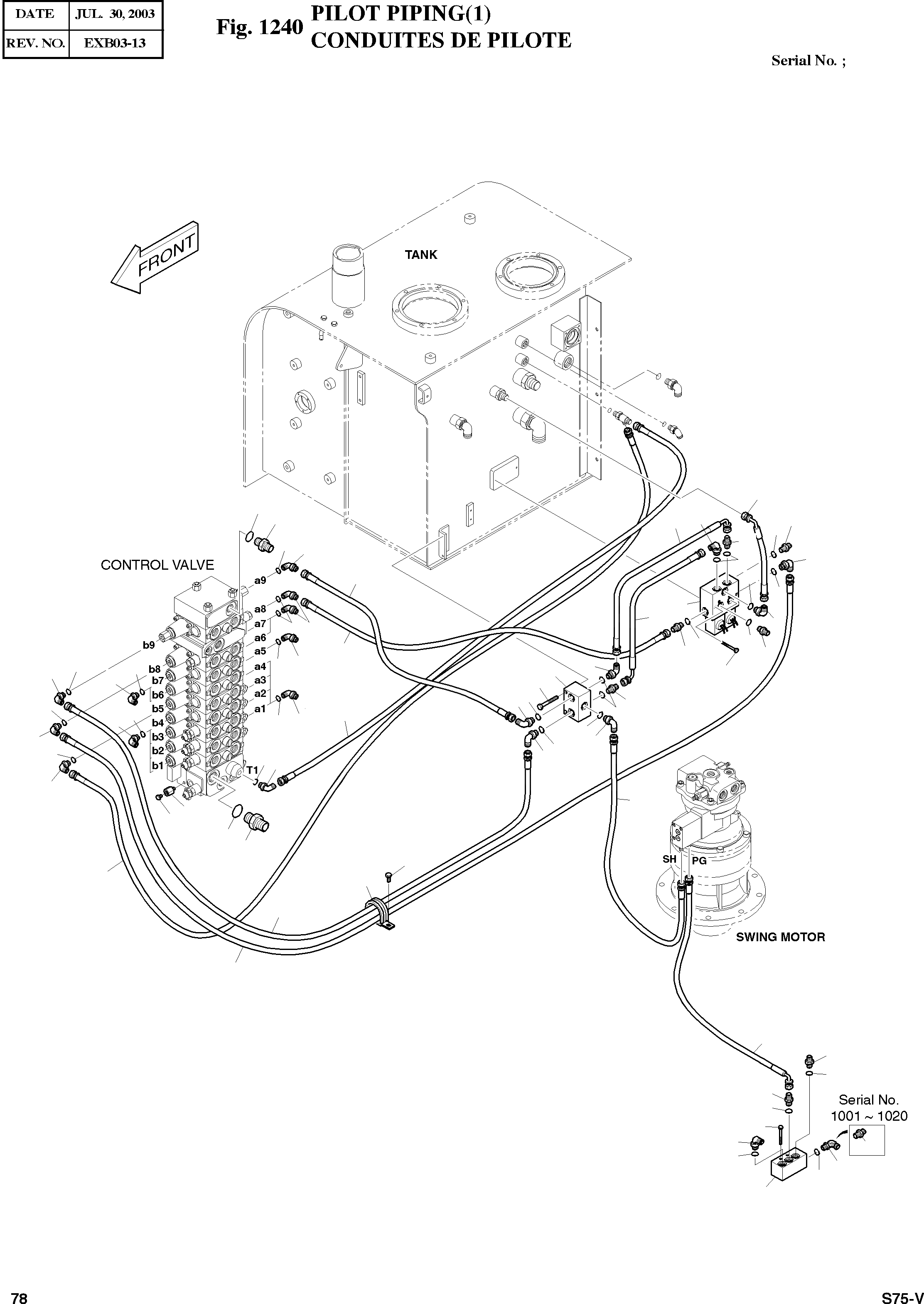

Запчасти Doosan Daewoo PILOT PIPING(1) BODY PARTS

-

400-01048A

PILOT PIPING

SC: D

-2шт.

3

2420-9509

VALVE;SWITCHING

desc: VANNE

1шт.

4

2420-9158A

VALVE;SHUTTLE

desc: VANNE

1шт.

6

423-00169

BLOCK

desc: BLOC

1шт.

10

S0553753

BOLT M6X1.0X55

desc: BOULON

4шт.

12

S0556653

BOLT M8X1.25X65

desc: BOULON

2шт.

15

S8000111

O-RING

desc: JOINT TORIQUE

17шт.

18

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1001-1020

9шт.

18

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1021

8шт.

20

2180-1026D12

O-RING

desc: JOINT TORIQUE

1шт.

22

DS2281091

ELBOW

desc: COUDE

19шт.

30

S8040061

O-RING

desc: JOINT TORIQUE

19шт.

31

2181-1702D4

ELBOW

SERIAL: 1001-1020

8шт.

31

2181-1702D4

ELBOW

SERIAL: 1021

9шт.

36

2181-1126D70

ADAPTER

desc: ADAPTEUR

1шт.

37

2180-1026D9

O-RING

desc: JOINT TORIQUE

1шт.

38

2181-1126D9

ADAPTER

desc: ADAPTEUR

1шт.

44

2184-1045D61

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1046D63

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

46

2184-1046D171

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1046D204

HOSE PF1/4-340L

desc: TUYAU FLEXIBLE

1шт.

48

2184-1045D125

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

49

2184-1045D66

HOSE PF1/4-720L

desc: TUYAU FLEXIBLE

1шт.

50

2184-1046D232

HOSE PF1/4-280L

desc: TUYAU FLEXIBLE

1шт.

55

2184-1045D209

HOSE PF1/4-1350L

desc: TUYAU FLEXIBLE

1шт.

56

DS2055788

HOSE PF1/4-2050L

desc: TUYAU FLEXIBLE

1шт.

57

2184-1045D102

HOSE PF1/4-1450L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1045D150

HOSE PF1/4-540L

desc: TUYAU FLEXIBLE

1шт.

80

124-00208D9

CLIP

desc: CLIP

1шт.

81

120-00276

BOLT;NURLING

desc: BOULON

2шт.

82

2181-2201D5

ADAPTER

desc: ADAPTEUR

1шт.

83

2181-2047A

PLUG M10X1.0

desc: BOUCHON

1шт.
