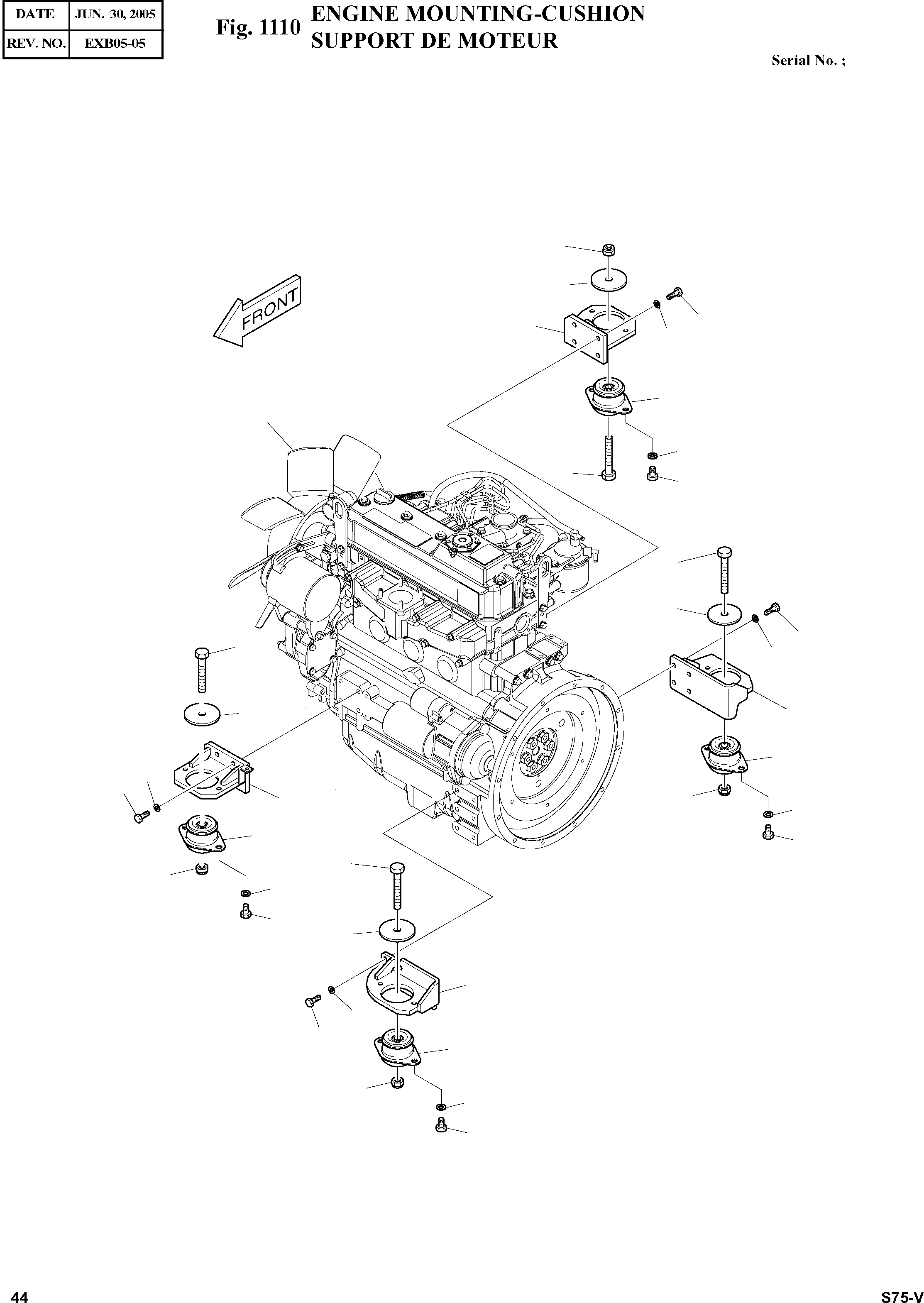

Запчасти Doosan Daewoo ENGINE MOUNTING-CUSHION BODY PARTS

-

201-00114A

ENGINE MOUNTING

SERIAL: 1001-1404

-2шт.

-

201-00114B

ENGINE MOUNTING

SERIAL: 1405

-2шт.

1

201-00120

ENGINE

SERIAL: 1001-1153

1шт.

1

201-00163A

ENGINE TIER-II

SERIAL: 1154-1219

1шт.

1

201-00163B

ENGINE TIER-II

SERIAL: 1220

1шт.

16

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

16шт.

25

195-02076C

BRACKET;E/G(RL)

desc: SUPPORT

1шт.

26

195-01403

BRACKET;E/G(RR)

desc: SUPPORT

1шт.

27

195-01076A

BRACKET;E/G(FL)

desc: SUPPORT

1шт.

28

195-02077A

BRACKET;E/G(FR)

desc: SUPPORT

1шт.

30

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

41

161-00540

RUBBER;E/G MOUNT(FRONT)

desc: CAOUTCHOUC

4шт.

44

S0766466

BOLT M16X1.5X110

desc: BOULON

4шт.

45

121-00035

NUT;LOCK M16X1.5

desc: ECROU

4шт.

46

114-00547

WASHER;REBOUND

desc: RONDELLE

4шт.

47

S0512263

BOLT M10X1.5X30

desc: BOULON

16шт.

63

S0514953

BOLT M12X1.75X22

desc: BOULON

8шт.
