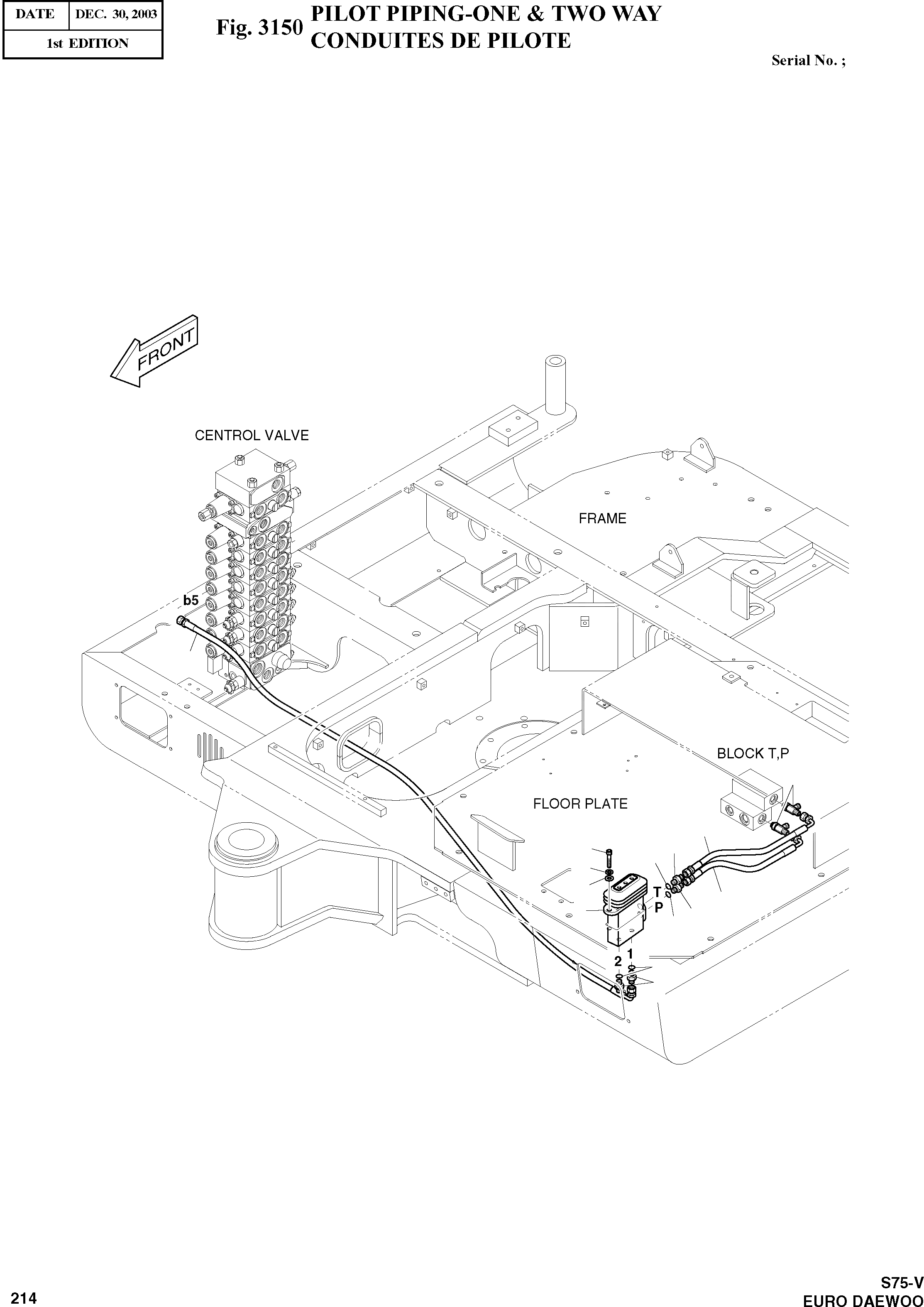

Запчасти Doosan Daewoo PILOT PIPING-ONE & TWO WAY FRONT PARTS

-

400-01239B

PILOT PIPING-ONE & TWO WAY

SC: D

-2шт.

1

420-00347

VALVE;PEDAL

desc: VANNE

1шт.

2

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON DE PLOT

2шт.

3

S5110603

WASHER

desc: RONDELLE

2шт.

4

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

2шт.

5

2181-1126D14

ADAPTER;S

desc: ADAPTEUR

1шт.

6

S8000111

O-RING

desc: JOINT TORIQUE

1шт.

7

2181-1951D7

TEE

desc: TE

2шт.

8

2184-1046D215

HOSE PF1/4-320L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1046D232

HOSE PF1/4-280L

desc: TUYAU FLEXIBLE

1шт.

11

2184-1046D79

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.
