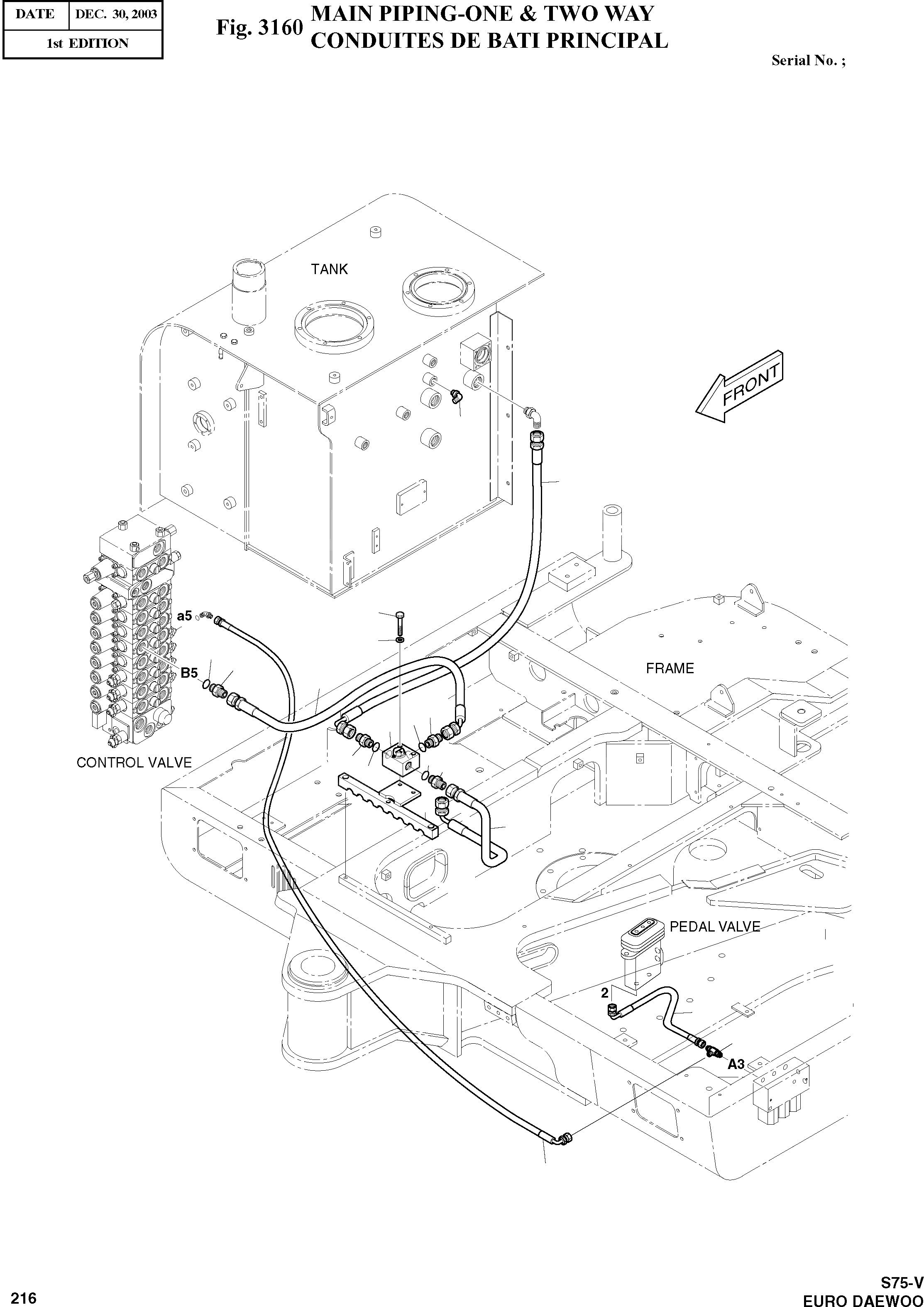

Запчасти Doosan Daewoo MAIN PIPING-ONE & TWO WAY FRONT PARTS

-

400-01085

MAIN PIPING-ONE & TWO ASS'Y

SC: D

-2шт.

5

420-00380

VALVE;SWITCH

desc: VANNE

1шт.

6

S0558753

BOLT M10X1.5X60

desc: BOULON

2шт.

7

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

12

2181-1126D6

ADAPTER PF1/2

desc: ADAPTEUR

3шт.

13

S8000181

O-RING

desc: JOINT TORIQUE

3шт.

15

DS2213045

ADAPTER

desc: ADAPTEUR

1шт.

16

2180-1026D12

O-RING

desc: JOINT TORIQUE

1шт.

17

124-00278A

CLAMP;PIPE

desc: FIXATION DE TUYAU

1шт.

18

DS2054270

HOSE

desc: TUYAU FLEXIBLE

1шт.

19

DS2055791

HOSE

desc: TUYAU FLEXIBLE

1шт.

20

DS2055618

HOSE

desc: TUYAU FLEXIBLE

1шт.

21

2184-1046D63

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

22

2184-1046D121

HOSE PF1/4-2240L

desc: TUYAU FLEXIBLE

1шт.

25

181-00779

TEE

desc: TE

1шт.

26

2181-1702D10

ELBOW

desc: COUDE

1шт.
