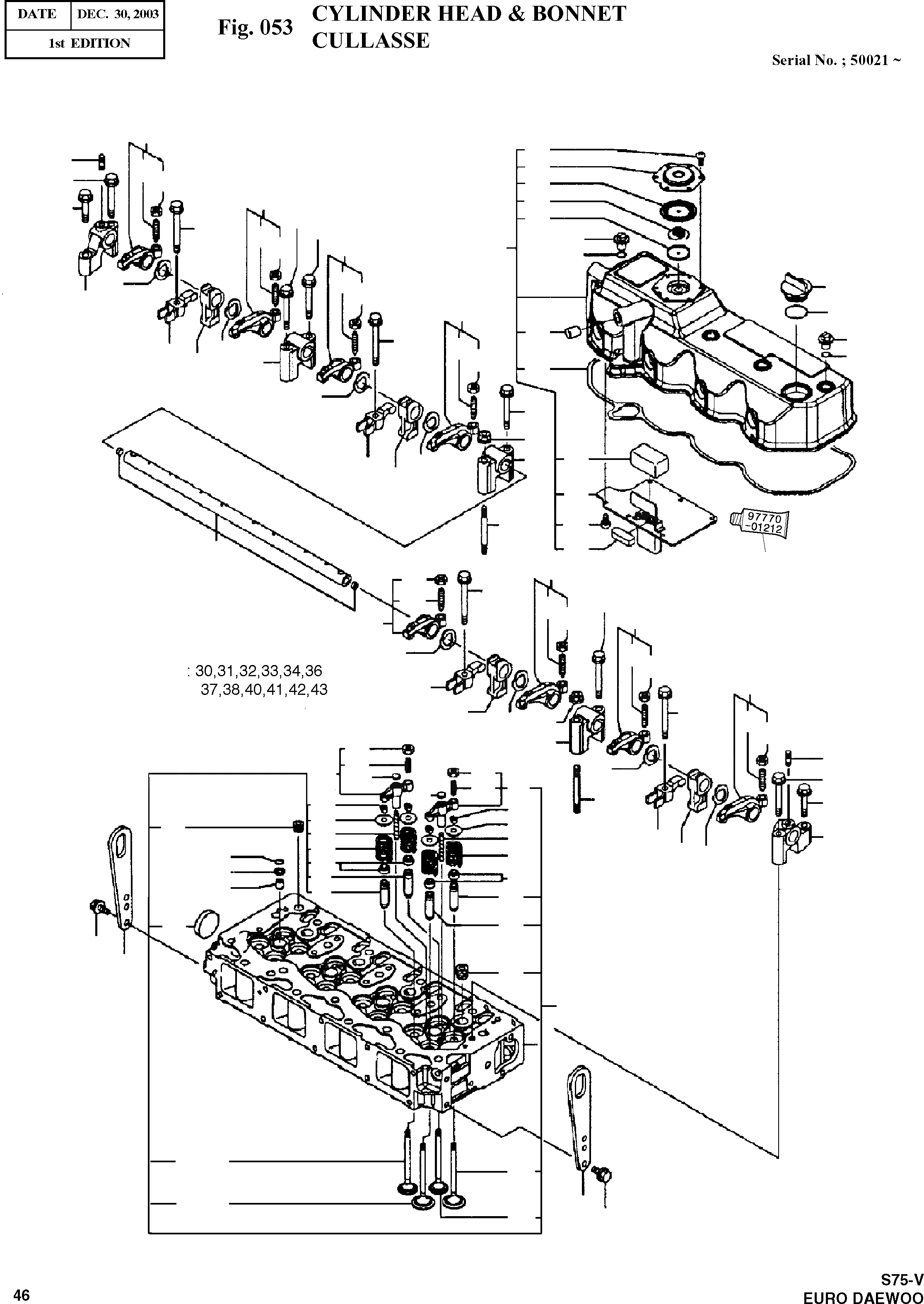

Запчасти Doosan Daewoo CYLINDER HEAD & BONNET ENGINE PARTS

1

129900-07900

LIFTER;ENGINE

desc: SUPPORT

2шт.

2

26106-080162

BOLT M8X16

desc: BOULON A 6PANS

4шт.

3

123907-11550

VALVE;SEAT

desc: VANNE

8шт.

4

129907-11700

CYLINDER HEAD ASS'Y

desc: CULLASSE

1шт.

6

-

CYLINDER HEAD

desc: . CULASSE

1шт.

9

129907-11800

GUIDE;VALVE

desc: . GUIDE

16шт.

10

123907-11820

GUIDE;VALVE BRIDGE

desc: . GUIDE

8шт.

11

23876-020000

PLUG

desc: . BOUCHON

1шт.

12

23876-030000

PLUG

desc: . BOUCHON

4шт.

13

27241-400000

PLUG

desc: . BOUCHON

1шт.

14

129907-11110

VALVE;EXHAUST

desc: . SOUPAPE D'CHAPPEMENT

8шт.

15

129907-11120

SPRING;VALVE

desc: . RESSORT

16шт.

16

119620-11180

RETAINER;SPRING

desc: . BAGUE

16шт.

17

124160-11340

SEAL;VALVE

desc: . TIGE DE VALVE

8шт.

18

124950-11340

SEAL;VALVE

desc: . TIGE DE VALVE

8шт.

19

129907-11510

VALVE BRIDGE ASS'Y

desc: . VANNE

8шт.

21

129150-11750

NUT M8

desc: .. ECROU

8шт.

22

123907-11830

SCRWE;VALVE BRIDGE

desc: .. VIS

8шт.

23

27310-070001

COTTER

desc: . BROUCHE

16шт.

25

129907-11100

VALVE;INLET

desc: . SOUPAPE PRISE

8шт.

26

119625-11880

SEAT;NOZZLE

desc: SIEGE

4шт.

27

24311-000120

O-RING

desc: JONT TORIQUE

4шт.

28

119593-11301

BOLT M8X80

desc: BOULON DE PLOT

2шт.

29

129907-11341

ROCKER ARM ASS'Y

desc: BRAS DE CULBUTEUR

1шт.

30

129907-11250

SHAFT;ROCKER ARM

desc: . ARBRE

1шт.

31

129907-11260

SUPPORT

desc: . SUPPORT

3шт.

32

129907-11270

SUPPORT

desc: . SUPPORT

2шт.

33

123907-11280

WASHER

desc: . RODELLE

8шт.

34

129907-11650

KIT;ROCKER ARM SUCTION

desc: . CHAPPEMENT DE BRAS DE KIT;ROCKER

4шт.

36

129150-11230

SCREW;VALVE

desc: .. RONDELLE ELASTIQUE

4шт.

37

129150-11750

NUT

desc: .. ECROU

4шт.

38

129907-11660

KIT;ROCKER ARM EXHAUST

desc: . CHAPPEMENT DE BRAS DE KIT;ROCKER

4шт.

40

129150-11230

SCREW;VALVE

desc: .. RONDELLE ELASTIQUE

4шт.

41

129150-11750

NUT

desc: .. ECROU

4шт.

42

129907-11920

PEDESTAL;RETAINER

desc: . SUPPORT

4шт.

43

26226-080222

STUD M8X22

desc: . GOUJON

2шт.

44

26106-080402

BOLT M8X40

desc: BOULON A 6PANS

2шт.

45

26106-080602

BOLT M8X60

desc: BOULON A 6PANS

4шт.

46

26106-080602

BOLT M8X60

desc: BOULON A 6PANS

2шт.

47

119802-11870

PROTECTOR

desc: GUIDE DE SOUPAPE

4шт.

48

129907-11950

BOLT

desc: BOULON A 6PANS

4шт.

49

26306-080002

NUT

desc: ECROU

2шт.

50

124160-01751

COVER;FILLER

desc: CAPUCHON

1шт.

51

129907-11320

BONNET ASS'Y

desc: SUPPORT & COUVERCLE

1шт.

52

129907-03010

PLATE;BAFFLE

desc: . PLAQUE

1шт.

53

129907-03060

BAFFLE

desc: . CLOISON

1шт.

54

129907-03070

BAFFLE

desc: . CLOISON

1шт.

55

123907-03100

DIAPHRAGM;BREATHER

desc: . RENIFLARD

1шт.

56

123907-03110

PLATE;CENTER

desc: . PLAQUE

1шт.

57

123907-03120

PLATE;BREATHER

desc: . PLAQUE

1шт.

58

123907-03140

SPRING;DIAPHRAGM

desc: . RESSORT

1шт.

61

129907-11310

PACKING;BONNET

desc: . EMBALLAGE

1шт.

62

119640-61400

PLUG

desc: . BOUCHON

1шт.

63

22857-500100

SCREW

desc: . VIS

6шт.

64

22857-500100

SCREW

desc: . VIS

6шт.

65

124160-11360

KNOB

desc: BOUTON

4шт.

66

24311-000120

O-RING

desc: JONT TORIQUE

4шт.

67

24311-000320

O-RING

desc: JONT TORIQUE

1шт.

68

129907-11910

RETAINER;VALVE

desc: ARRETOIR

4шт.

69

977770-01212

GASKET;LIQUID

desc: JOINT

1шт.
