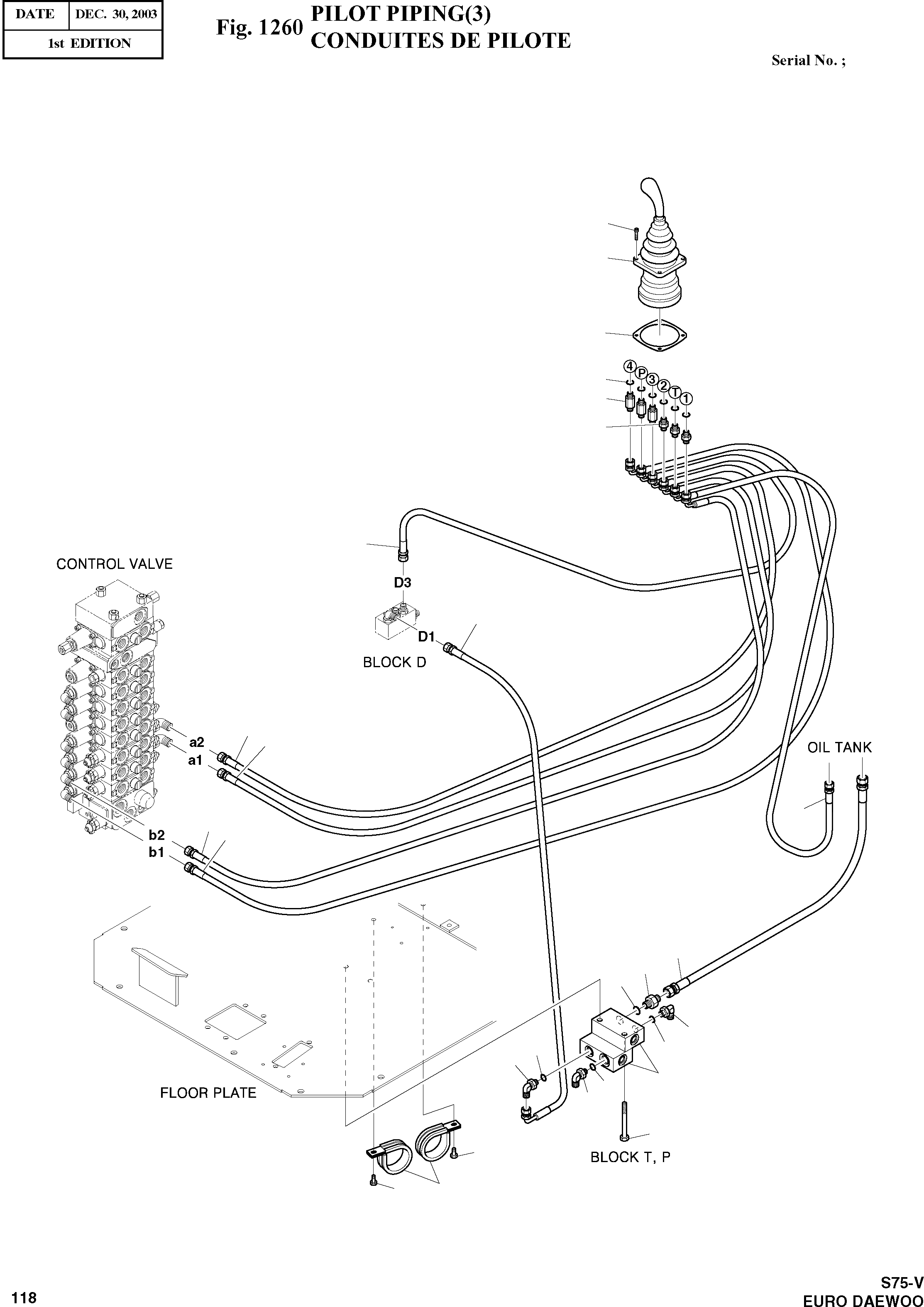

Запчасти Doosan Daewoo PILOT PIPING(3) BODY PARTS

-

400-01063E

PILOT PIPING

SC: D

-2шт.

2

420-00435

VALVE;REMOTE(R.H.)

desc: VANNE

1шт.

6

2423-1470

BLOCK;DELIVERY

desc: BLOC

2шт.

8

2181-1702D9

ELBOW PFO1/2-PF3/8

desc: COUDE

1шт.

9

S2205066

BOLT;SOCKET M6X1.0X25

desc: BOULON DE PLOT

4шт.

10

2621-2752

PLATE

desc: PLAQUE

1шт.

16

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

17

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

3шт.

18

2181-1126D75

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

3шт.

26

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

27

S0559553

BOLT M10X1.5X100

desc: BOULON

2шт.

28

2181-1126D23

ADAPTER PFO1/2-PF3/8

desc: ADAPTEUR

1шт.

29

S8000181

O-RING

desc: JOINT TORIQUE

2шт.

31

2181-1702D10

ELBOW PFO1/4-PF3/8

desc: COUDE

2шт.

32

124-00208D7

CLIP

desc: CLIP

2шт.

33

120-00276

BOLT;NURLING M8X1.25X12

desc: BOULON

2шт.

42

2184-1026D160

HOSE PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1046D50

HOSE PF1/4-1070L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1249D25

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1249D11

HOSE PF1/4-2100L

desc: TUYAU FLEXIBLE

1шт.

54

2184-1249D13

HOSE PF1/4-2650L

desc: TUYAU FLEXIBLE

1шт.

55

2184-1249D33

HOSE PF1/4-2600L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1249D13

HOSE PF1/4-2650L

desc: TUYAU FLEXIBLE

1шт.

57

2184-1249D13

HOSE PF1/4-2650L

desc: TUYAU FLEXIBLE

1шт.
