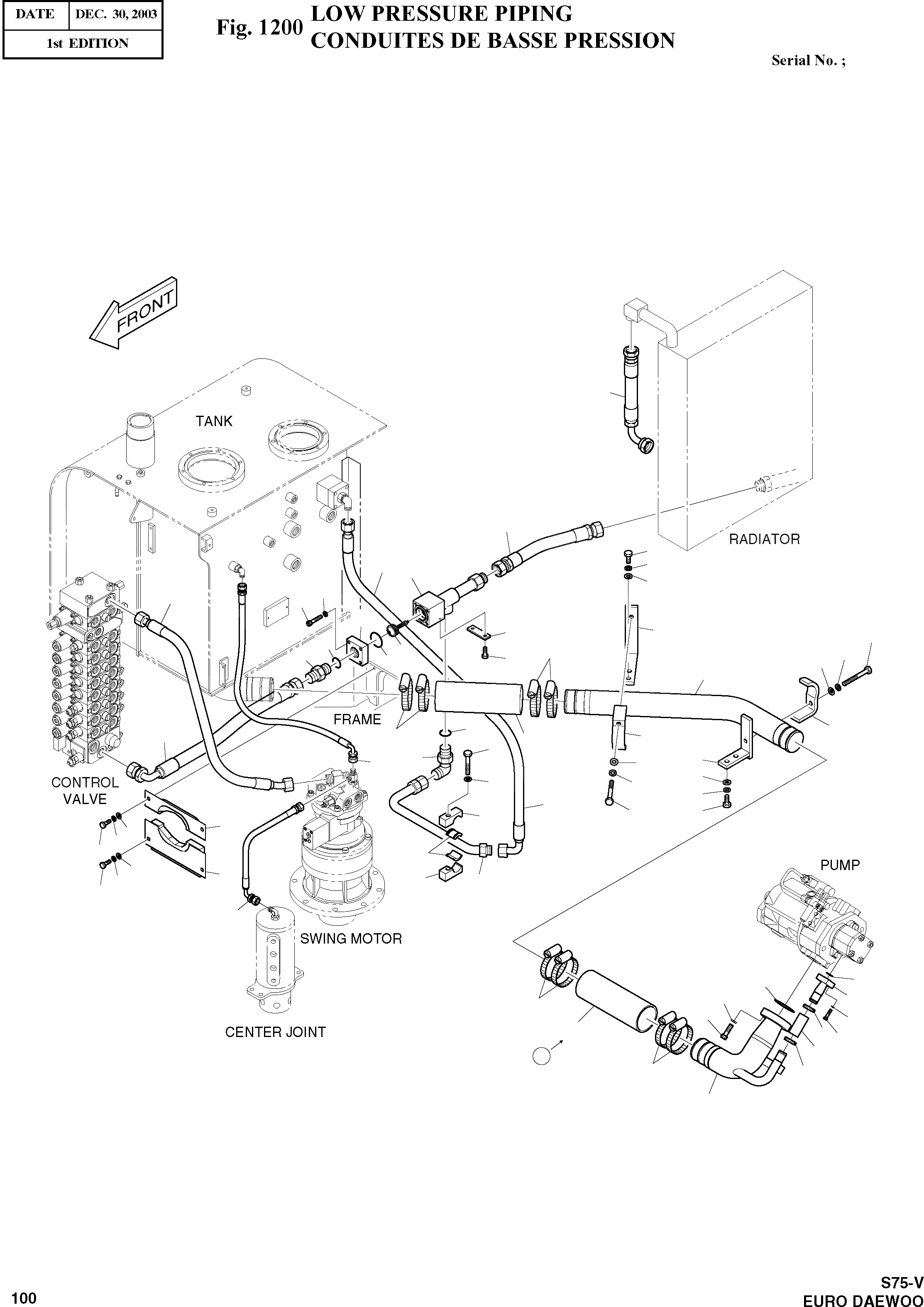

Запчасти Doosan Daewoo LOW PRESSURE PIPING BODY PARTS

-

400-01034A

LOW PIPING

SC: D

-2шт.

1

140-01276A

PIPE;SUCTION

desc: TUYAU

1шт.

2

S8000221

O-RING

desc: JOINT TORIQUE

1шт.

3

S2205061

BOLT;SOCKET M6X1.0X25

desc: BOULON DE PLOT

4шт.

4

S5110301

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

5

2185-1003D12

HOSE

desc: TUYAU FLEXIBLE

1шт.

6

S8450023

CLAMP;HOSE

desc: FIXATION DE TUYAU

2шт.

7

140-01277A

PIPE;SUCTION

desc: TUYAU

1шт.

8

2180-1026D27

O-RING

desc: JOINT TORIQUE

1шт.

9

2185-1776D29

HOSE 270L

desc: TUYAU FLEXIBLE

1шт.

10

S8450082

CLAMP;HOSE

desc: FIXATION DE TUYAU

8шт.

11

140-01278B

PIPE;SUCTION

desc: TUYAU

1шт.

12

S0515253

BOLT M12X1.75X30

desc: BOULON

4шт.

13

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

7шт.

14

S5010713

WASHER;PLAIN M12

desc: RONDELLE PLATE

6шт.

15

195-02136

BRACKET

desc: SUPPORT

1шт.

16

2124-1224D9

CLAMP

desc: ATTACHE

2шт.

17

S0561853

BOLT M8X1.75X105

desc: BOULON

2шт.

18

195-02027A

BRACKET

desc: SUPPORT

1шт.

19

DS2055786

HOSE PF3/8-360L

desc: TUYAU FLEXIBLE

2шт.

21

2184-1036D383

HOSE PF3/4-820L

desc: TUYAU FLEXIBLE

1шт.

22

DS2054259

HOSE PF3/4-730L

desc: TUYAU FLEXIBLE

1шт.

23

DS2055787

HOSE PF1-680L

desc: TUYAU FLEXIBLE

1шт.

24

2181-1126D25

ADAPTER

desc: ADAPTEUR

1шт.

25

S8000291

O-RING

desc: JOINT TORIQUE

2шт.

26

423-00167

BLOCK

desc: BLOC

1шт.

27

S0508953

BOLT M8X1.25X22

desc: BOULON

6шт.

28

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

29

2114-1058D56

WASHER

desc: RONDELLE

4шт.

30

140-01304A

PIPE

desc: TUYAU

1шт.

31

2426-9017

VALVE;BY-PASS 3.0K

desc: VANNE

1шт.

32

S8000511

O-RING

desc: JOINT TORIQUE

1шт.

33

S2209461

BOLT;SOCKET M8X1.25X40

desc: BOULON DE PLOT

4шт.

34

S5110501

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

37

120-00309

BOLT;SOCKET M12X1.75X40

desc: BOULON DE PLOT

4шт.

38

S5110701

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

39

DS2281088

ELBOW PFO1-PF3/4

desc: COUDE

1шт.

40

140-01303A

PIPE

desc: TUYAU

1шт.

41

2124-1601A

CLAMP;PIPE

desc: FIXATION DE TUYAU

2шт.

42

2161-2250A

RUBBER

desc: CAOUTCHOUC

2шт.

43

S0561253

BOLT M12X1.75X75

desc: BOULON

1шт.

44

DS2053767

HOSE PF1-390L

desc: TUYAU FLEXIBLE

1шт.

45

621-02257A

COVER

desc: COUVERCLE

1шт.

46

621-02258A

COVER

desc: COUVERCLE

1шт.

47

DS2055798

HOSE 2PF1-330L

desc: TUYAU FLEXIBLE

1шт.

48

195-00237

PLATE

desc: PLAQUE

1шт.

49

2185-1776D43

HOSE 245L

desc: TUYAU FLEXIBLE

1шт.
