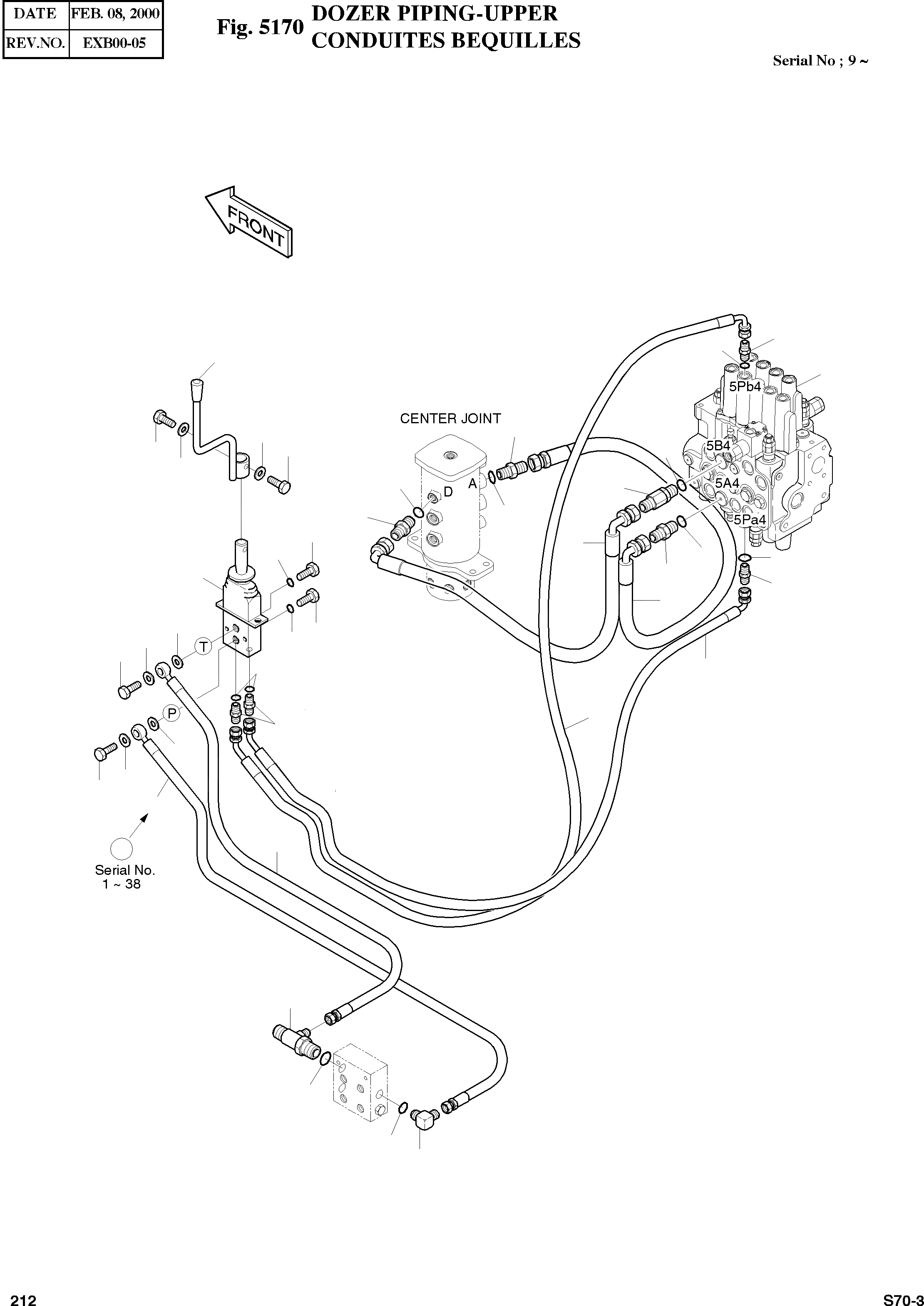

Запчасти Doosan Daewoo DOZER PIPING-UPPER OPTION PARTS

-

2400-1836

DOZER PIPING

SERIAL: 9

-2шт.

1

2420-9411

VALVE

desc: VANNE

1шт.

2

2184-1096D88

HOSE (90-90)

desc: TUYAU FLEXIBLE

1шт.

3

2184-1036D228

HOSE PF3/8-1450L

desc: TUYAU FLEXIBLE

1шт.

4

2181-1126D48

ADAPTER 2-PF3/8

desc: RACCORD

2шт.

5

S8000181

O-RING P18

REP_PNO: 8202-014

6шт.

6

2120-1475

BOLT;HOLLOW

desc: BOULON A 6 PANS

2шт.

7

S8180221

SEAL;COPPER PF1/4

desc: PARE-POUSSIERES

6шт.

8

2184-9088

HOSE;S-BANJO

SERIAL: 1-38

2шт.

8

2184-9088

HOSE;S-BANJO

SERIAL: 39

1шт.

9

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

11

2181-1126D14

ADAPTER PF1/4-PFO1/4

desc: RACCORD

2шт.

12

S8000111

O-RING P11

REP_PNO: 8202-009

2шт.

13

2181-1702D46

ELBOW PFO1/2-PF1/4

desc: COUDE

1шт.

14

2181-1126D73

ADAPTER PF1/2-PF3/8

desc: RACCORD

1шт.

15

2181-1126D23

ADAPTER;S PF1/2-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

17

S0556253

BOLT M8X1.25X45

desc: BOULON A 6 PANS

2шт.

18

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

19

2181-1951D19

TEE PF1/4.2-PF1/2

desc: TE

1шт.

22

2181-1917D4

ADAPTER 2-PF1/4

desc: RACCORD

2шт.

23

2184-1062D63

HOSE (90-45)PF1/4-2050L

desc: TUYAU FLEXIBLE

1шт.

24

2184-1060D107

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

25

2184-9084

HOSE;BENJO PF1/4-1200L

SERIAL: 39

1шт.

26

2133-2053

LEVER;DOZER

SERIAL: 69

1шт.

27

S3400813

SEAT;SCREW

SERIAL: 69

2шт.

28

S5100203

WASHER;SPRING M5

SERIAL: 69

2шт.

29

2420-9533

VALVE;CONTROL

SERIAL: 93

1шт.
