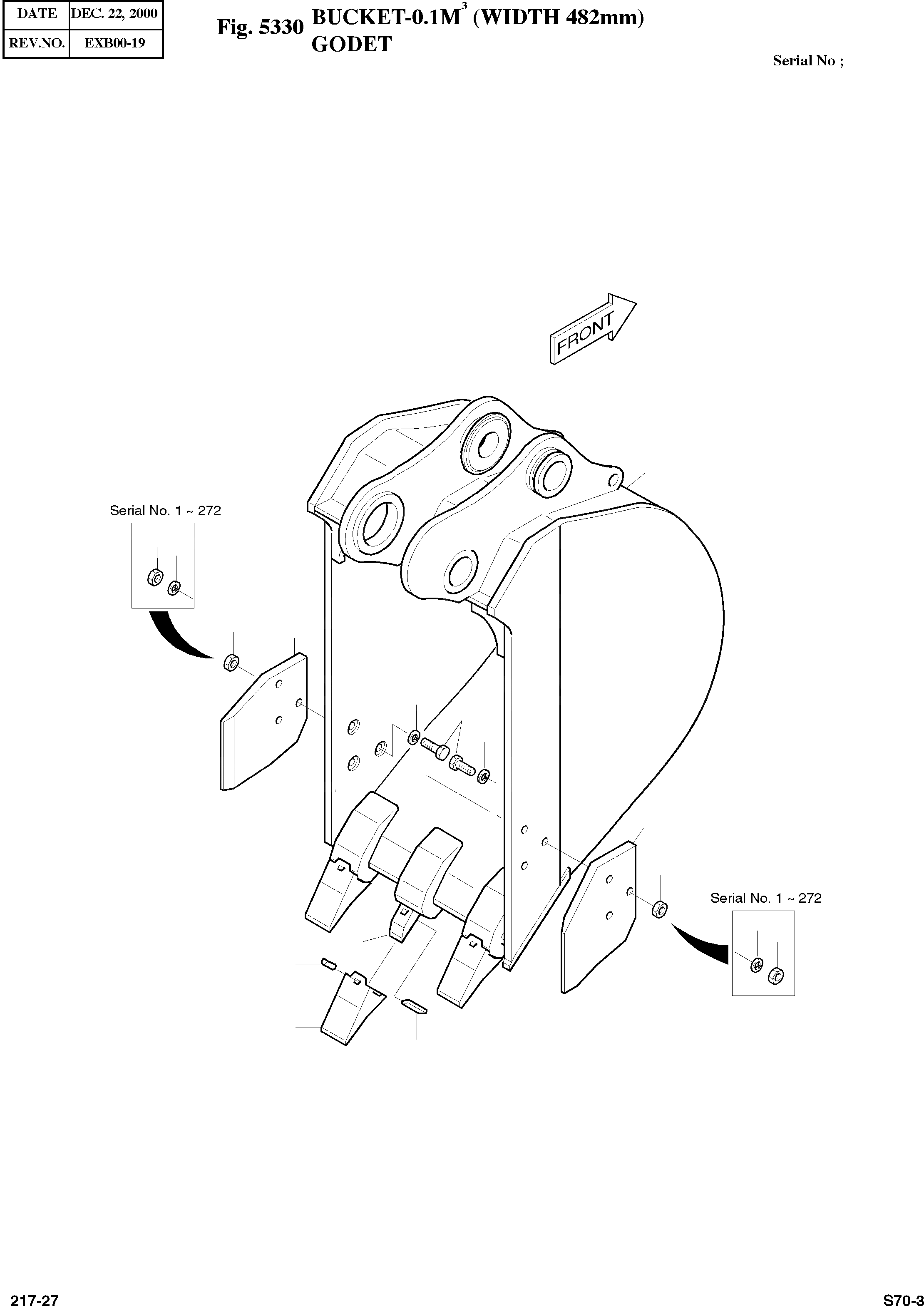

Запчасти Doosan Daewoo BUCKET-0.1M©ш(WIDTH 482MM) OPTION PARTS

-

2704-1503

BUCKET ASS'Y-0.1§©(482mm)

SERIAL: 1-272

1шт.

-

2704-1503A

BUCKET ASS'Y-0.1§©(482mm)

SERIAL: 273-337

1шт.

-

2704-1503B

BUCKET ASS'Y-0.1§©(482mm)

SERIAL: 338

1шт.

1

2704-1504

BUCKET-0.1§©

SERIAL: 1-272

1шт.

1

2704-1504A

BUCKET-0.1§©

SERIAL: 273-337

1шт.

1

2704-1504B

BUCKET-0.1§©

SERIAL: 338

1шт.

1-1

2713-6013

ADAPTER;TOOTH

desc: . RACCORD

3шт.

2

2713-6012

POINT

desc: DENT

3шт.

3

2705-6012

PIN;LOCK

desc: GOUPILLE DE BLOCAGE

3шт.

4

2705-6013

RUBBER;LOCKPIN

desc: CAOUTCHOUC

3шт.

5

2713-1233

CUTTER;SIDE(L.H)

desc: COUTEAU LATERAL

1шт.

6

2713-1232

CUTTER;SIDE(R.H)

desc: COUTEAU LATERAL

1шт.

7

S0770161

BOLT M20X1.5X65

SERIAL: 1-272

6шт.

7

S0570161

BOLT M20X1.5X65

SERIAL: 273

6шт.

8

S4037123

NUT M20X1.5

SERIAL: 1-272

6шт.

8

S4013133

NUT M20X1.5

SERIAL: 273

6шт.

9

S5103101

WASHER;SPRING M20

SERIAL: 1-272

6шт.

9

2114-9012

WASHER;HARDEN

SERIAL: 273

6шт.
