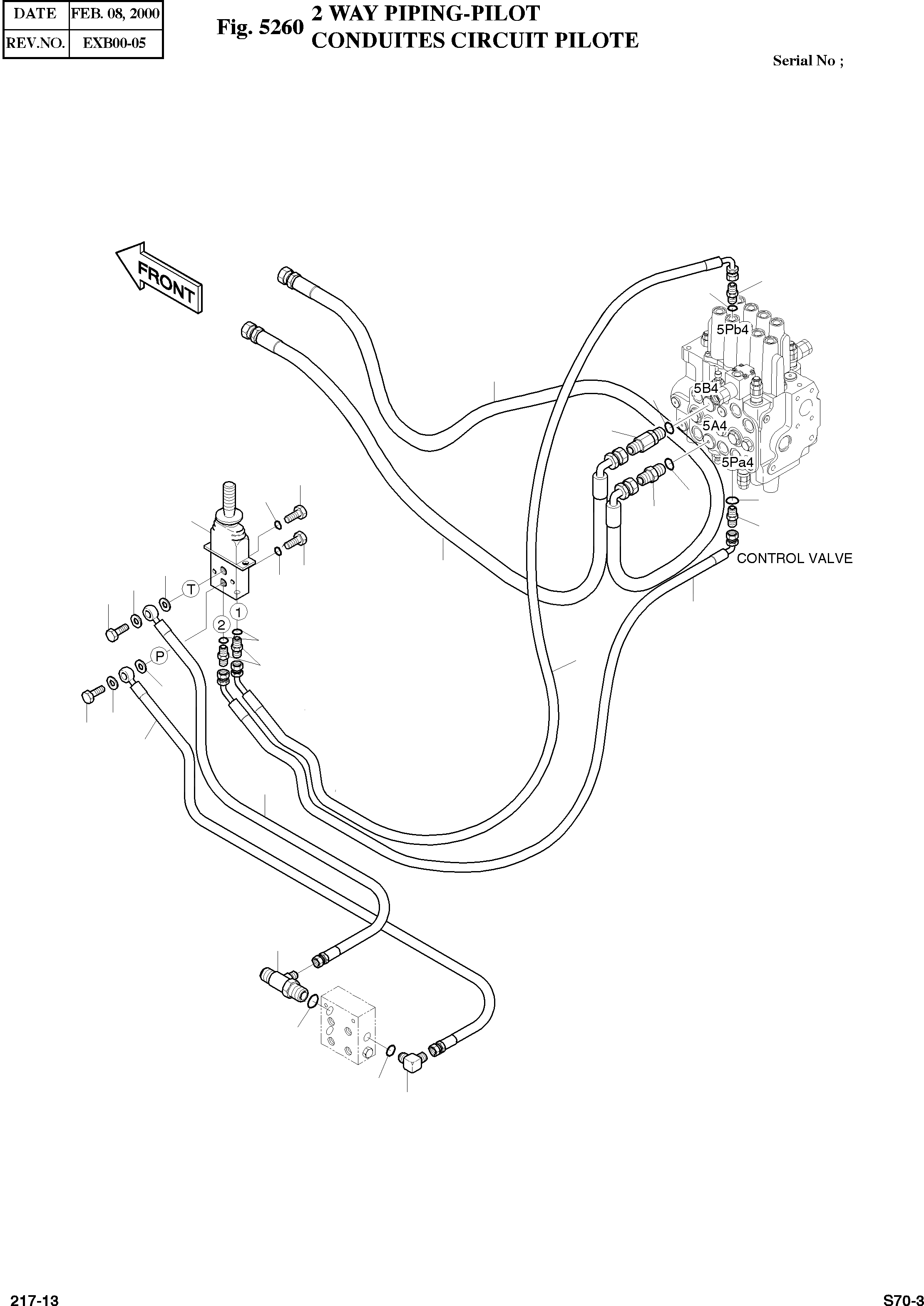

Запчасти Doosan Daewoo 2 WAY PIPING-PILOT OPTION PARTS

-

2400-1876

2 WAY PIPING

desc: CONDUITES CIRCUIT PILOTE

-2шт.

24

2420-9411

VALVE;REMOCON

desc: VANNE

1шт.

25

2184-1071D44

HOSE PF1/2-1400L

desc: TUYAU FLEXIBLE

1шт.

26

2184-1071D52

HOSE PF1/2-1600L

desc: TUYAU FLEXIBLE

1шт.

27

S8000181

O-RING P18

REP_PNO: 8202-014

10шт.

28

2120-1475

BOLT;HOLLOW PF1/4

desc: BOULON A 6 PANS

2шт.

29

S8180221

SEAL;COPPER PF1/4

desc: RONDELLE ETANCHE

6шт.

30

2184-9088

HOSE;BENJO PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

31

2181-1126D14

ADAPTER PF1/4-PFO1/4

desc: RACCORD

2шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

2шт.

33

2181-1702D46

ELBOW PFO1/2-PF1/4

desc: COUDE

1шт.

34

2181-1126D83

ADAPTER;LONG PF.PFO1/2

desc: RACCORD

1шт.

36

S0556253

BOLT M8X1.25X45

desc: BOULON A 6 PANS

2шт.

37

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

38

2181-1951D19

TEE PFO1/2.PF1/4.PF1/2

desc: TE

1шт.

39

2181-1917D4

ADAPTER PF1/4-PFO1/4

desc: RACCORD

2шт.

40

2184-1062D63

HOSE (90-45)PF1/4-2050L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1060D107

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

42

2184-9084

HOSE;BENJO PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

47

2181-1126D6

ADAPTER PFO1/2 PF1/2

desc: RACCORD

1шт.
