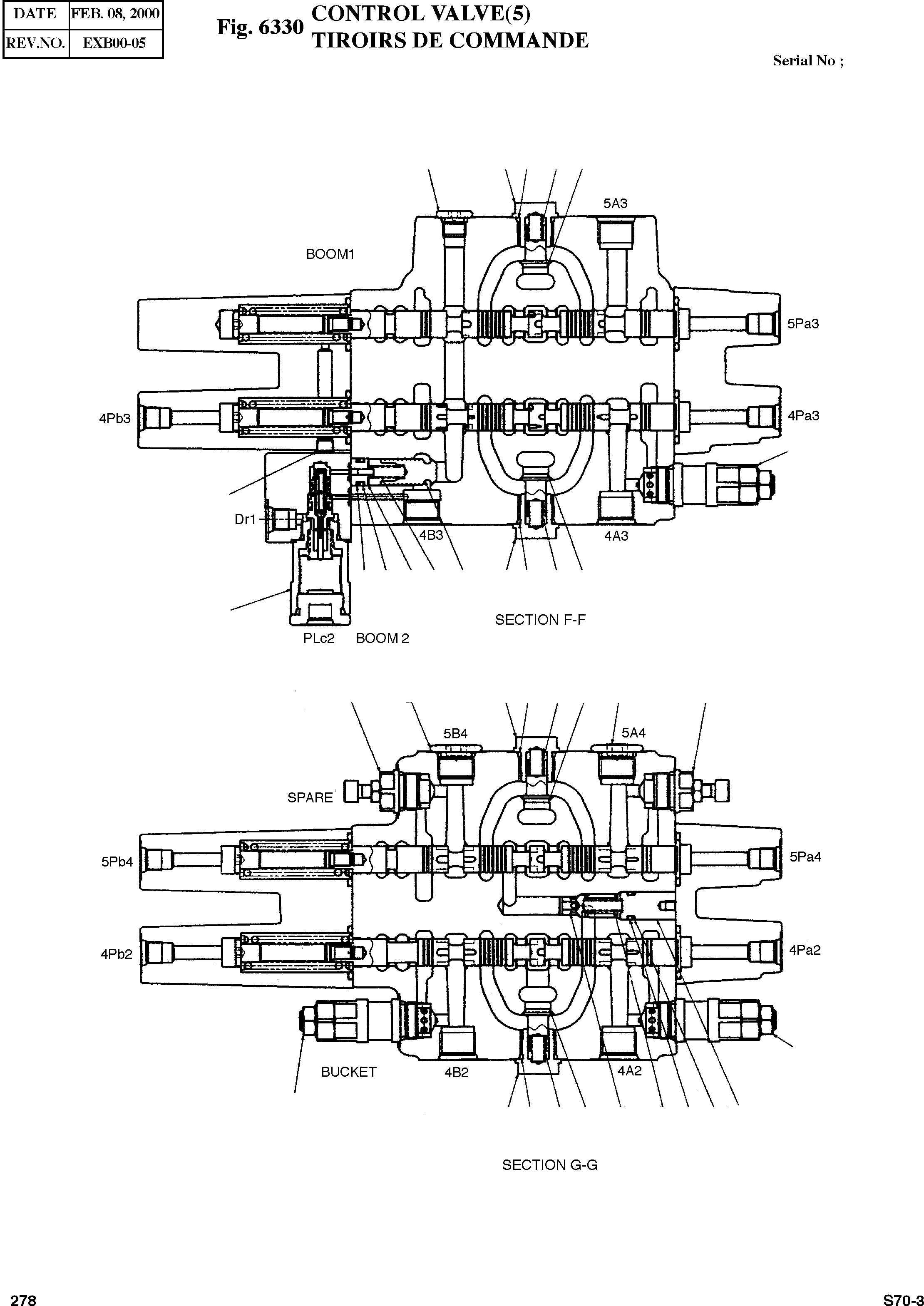

Запчасти Doosan Daewoo CONTROL VALVE(5) HYDRAULIC PARTS

-

2420-9390

CONTROL VALVE

SERIAL: 1-92

1шт.

-

2420-9532

CONTROL VALVE

SERIAL: 93

1шт.

23

21111-30515

SPRING

desc: RESSORT

1шт.

32

95113-01800

O-RING P18

desc: JOINT TORIQUE

4шт.

33

21111-33121

POPPET

desc: POPPET

1шт.

34

21111-31405

PLUG

desc: BOUCHON

2шт.

35

21111-33134

SPRING

desc: RESSORT

3шт.

36

21111-42312

SPRING

desc: RESSORT

5шт.

37

21001-01511

PLUG PF1/2

desc: BOUCHON

3шт.

43

97123-01111

PLUG PT1/8

desc: BOUCHON

1шт.

45

21003-00382

PLUG ASS'Y PF1/4

desc: BOUCHON

1шт.

47

21003-00384

PLUG ASS'Y PF1/2

desc: BOUCHON

2шт.

49

21013-31034

KIT;RELIEF VALVE

desc: KIT DE VANNE

3шт.

50

21013-39002

SHUT-OFF VALVE ASS'Y

desc: ENSEMBLE DE VANNE

2шт.

51

21113-31015

ANTI DRIFT VALVE ASS'Y

desc: ENSEMBLE DE VANNE

1шт.

53

21111-33135

POPPET

desc: POPPET

1шт.

54

21111-30528

SPRING

desc: RESSORT

1шт.

55

21111-31421

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

56

95111-01250

O-RING

desc: JOINT TORIQUE

2шт.

57

95712-01250

BACK-UP RING

desc: BAGUE DE SOUTIEN

2шт.
