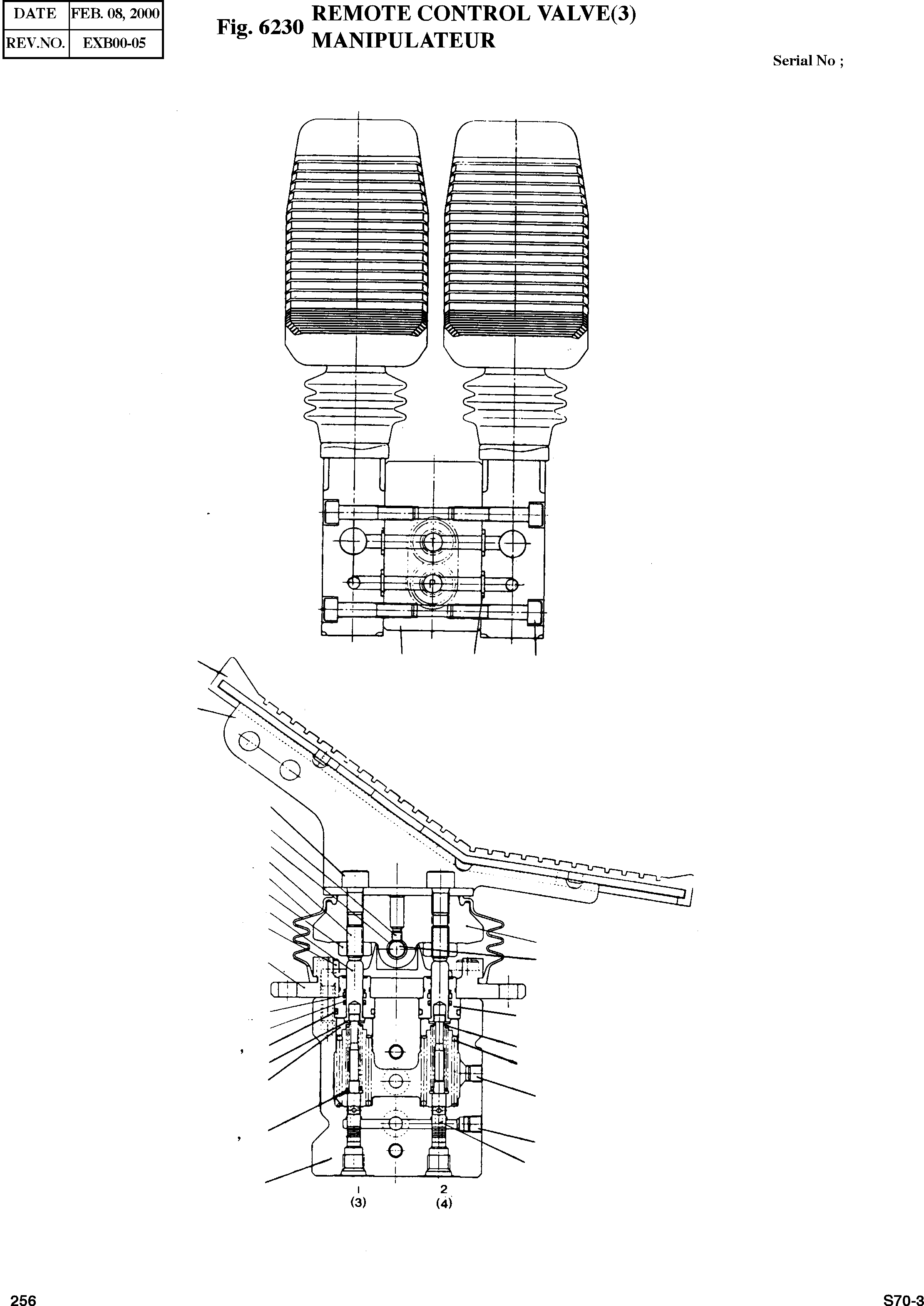

Запчасти Doosan Daewoo REMOTE CONTROL VALVE(3) HYDRAULIC PARTS

-

2420-9292

VALVE;REMOTE CONTROL

desc: VANNE DE COMMANDE A DISTANCE

1шт.

-

J24D2000

VALVE;REMOTE CONTROL

desc: VANNE DE COMMANDE A DISTANCE

1шт.

1

J24D2001

CASING

desc: . BOITIER

2шт.

2

J24D2002

PEDAL

desc: . PEDALE

2шт.

3

J24D2003

COVER;PEDAL

desc: . COUVERCLE DE PEDALE

2шт.

4

J24D2004

COVER

desc: . COUVERCLE

2шт.

5

DU1010

BUSH

desc: . DOUILLE

4шт.

6

J24D2005

CAM

desc: . CAME

2шт.

7

J24D2006

BELLOWS

desc: . SOUFFLET

2шт.

8

J24D2007

SPOOL

desc: . BOBINE

4шт.

9

S090601

SHIM

desc: . CALE

12шт.

10

J24D2008

SET;SPRING

desc: . RESSORT

4шт.

11

J24D2009

SPRING

desc: . RESSORT

4шт.

12

J24D2010

SET;SPRING

desc: . RESSORT

4шт.

13

J24D2011

STOPPER

desc: . TAQUET D'ARRET

4шт.

14

J24D2012

PLUG

desc: . BOUCHON

4шт.

15

P0020

O-RING

desc: . JOINT TORIQUE

4шт.

16

DSP10

SEAL;DUST

desc: . PARE-POUSSIERES

4шт.

17

RSY10

SEAL;ROD

desc: . TIGE D'ETANCHEITE

4шт.

18

J24D2013

SPRING

desc: . RESSORT

4шт.

19

J24D2014

ROD;PUSH

desc: . TIGE DE POUSSOIR

4шт.

20

WBM0830

BOLT;WRENCH

desc: . BOULON

4шт.

21

J24D2015

SCREW;SET

desc: . VIS

4шт.

22

HNM10

NUT

desc: . ECROU

4шт.

23

J24D2016

SHAFT;CAM

desc: . ARBRE A CAMES

2шт.

24

SBM0812

SCREW;SET

desc: . VIS

2шт.

25

WBM1015

BOLT;WRENCH

desc: . BOULON

4шт.

26

WPT18

PLUG

desc: . BOUCHON

2шт.

27

J24D2016

SPACER

desc: . ARBRE A CAMES

1шт.

28

P0012

O-RING

desc: . JOINT TORIQUE

4шт.

29

WBM0845

BOLT;WRENCH

desc: . BOULON

4шт.

30

WPT38

PLUG

desc: . BOUCHON

2шт.
