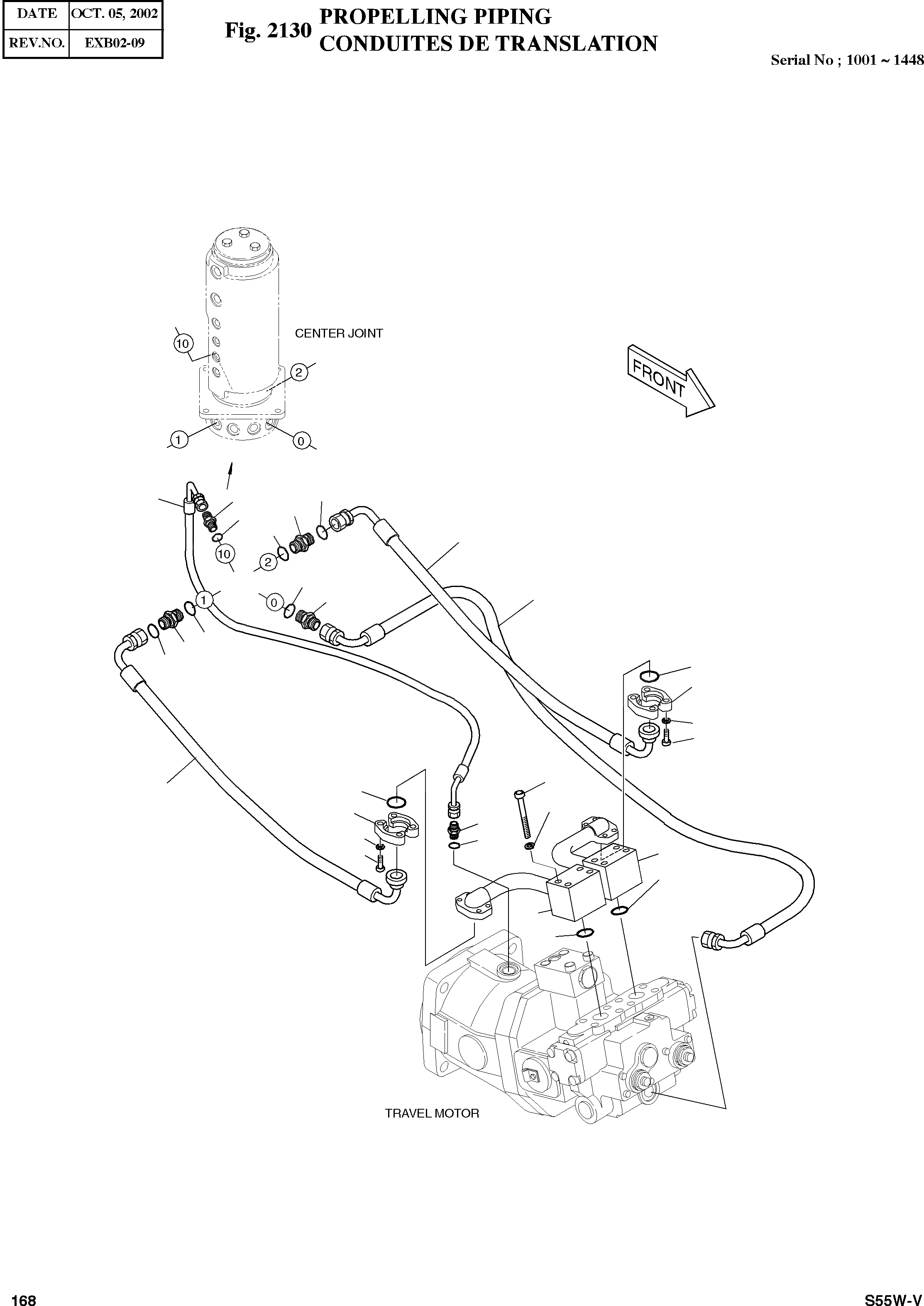

Запчасти Doosan Daewoo PROPELLING PIPING POWER TRAIN

-

400-00330

PROPELLING PIPING

SERIAL: 1001-1448

-2шт.

1

2140-1566A

PIPE

SERIAL: 1001-1092

1шт.

1

2140-1566B

PIPE

SERIAL: 1093

1шт.

2

2140-1567A

PIPE

SERIAL: 1001-1092

1шт.

2

2140-1567B

PIPE

SERIAL: 1093

1шт.

3

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

4

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

5

S2216466

BOLT;SOCKET M12X1.75X90

desc: BOULON A 6 PANS CREUX

8шт.

6

S5110701

WASHER;SPRNG M12

ICA: Y

8шт.

6

S5110703

WASHER;SPRNG M12

desc: RONDELLE ELASTIQUE

8шт.

7

2184-1202D92

HOSE 640L

SERIAL: 1001-1092

1шт.

7

DS2026069

HOSE 640L

SERIAL: 1093

1шт.

8

2180-1026D2

O-RING

desc: JOINT TORIQUE

2шт.

9

2184-1202D94

HOSE 640L

SERIAL: 1001-1092

1шт.

9

DS2026070

HOSE 640L

SERIAL: 1093

1шт.

10

S2212466

BOLT;SOCKET M10X1.5X40

desc: BOULON A 6 PANS CREUX

8шт.

11

S8030121

O-RING

desc: JOINT TORIQUE

2шт.

12

2181-4133D25

ADAPTER

SERIAL: 1001-1092

2шт.

12

2181-4133D13

ADAPTER

SERIAL: 1093

2шт.

13

S8000231

O-RING

desc: JOINT TORIQUE

2шт.

14

2181-1126D1

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

15

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

16

2181-1126D7

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

17

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

18

2181-1126D23

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

19

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

8шт.

20

2181-9080

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

21

2184-1096D124

HOSE PF3/8-1050L

desc: TUYAU FLEXIBLE

1шт.

23

2184-1076D143

HOSE PF3/4-1050L

desc: TUYAU FLEXIBLE

1шт.
