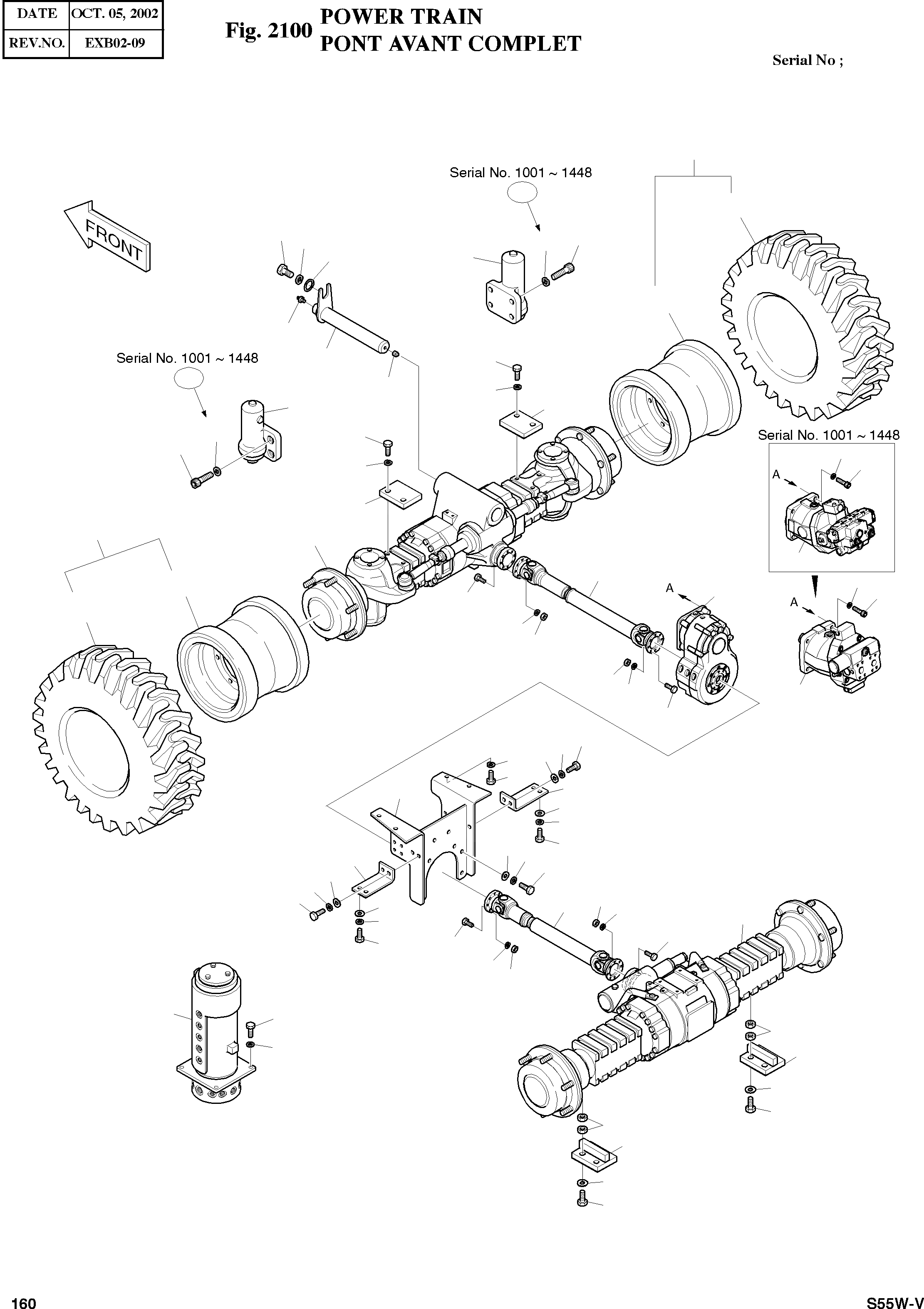

Запчасти Doosan Daewoo POWER TRAIN POWER TRAIN

-

200-00011

POWER TRAIN

SC: D

-2шт.

1

220-00043

AXLE;REAR

desc: AXE

1шт.

2

220-00044

AXLE;FRONT

desc: AXE

1шт.

3

2260-9041A

SHAFT;PROPELLING(REAR)

desc: ARBRE

1шт.

3A

100-KIA1-00

UNIVERSAL JOINT

desc: . UNIVERSEL JOINT

2шт.

4

210-00008

TRANSMISSION

desc: TRANSMISSION

1шт.

5

2401-9278

MOTOR;TRAVEL

SERIAL: 1001-1448

1шт.

5

401-00311

MOTOR;TRAVEL

SERIAL: 1449

1шт.

6

2440-9426B

CYLINDER;CHOCKING

desc: VERIN D'AMORTISSEUR

2шт.

7

2480-9026

JOINT;CENTER

desc: JOINT TOURNANT

1шт.

8

276-00016

TIRE & WHEEL-L.H

desc: VOLANT

2шт.

8-1

2276-9031

TIRE

desc: . PNEU

1шт.

8-2

278-00011

WHEEL

desc: . RIM

1шт.

8-3

2422-9024

VALVE

desc: . VANNE A AIR

1шт.

9

276-00017

TIRE & WHEEL-R.H

desc: VOLANT

2шт.

9-1

2276-9031

TIRE

desc: . PNEU

1шт.

9-2

278-00011

WHEEL

desc: . RIM

1шт.

9-3

2422-9024

VALVE

desc: . VANNE A AIR

1шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

32шт.

11

2121-1251

NUT

desc: ECROU

32шт.

12

S5102703

WASHER;SPRNG M12

desc: RONDELLE ELASTIQUE

12шт.

13

S2215566

BOLT;SOCKET M12X1.75X45

desc: BOULON A 6 PANS CREUX

4шт.

14

2116-1060D7

STOPPER

desc: ARRET

1шт.

15

162-00001A

PAD;CHOCK

desc: PLAQUE

2шт.

16

S0560563

BOLT M12X1.75X40

SERIAL: 1001-1092

4шт.

16

S0560863

BOLT M12X1.75X55

SERIAL: 1093

4шт.

17

S5102903

WASHER;SPRNG M16

SERIAL: 1001-1448

21шт.

17

S5102903

WASHER;SPRNG M16

SERIAL: 1449

13шт.

18

S2221466

BOLT;SOCKET M16X2.0X40

desc: BOULON A 6 PANS CREUX

8шт.

19

2114-9012

WASHER

desc: RONDELLE ELASTIQUE

8шт.

20

120-00145

BOLT M20X2.5X210

desc: BOULON A 6 PANS

8шт.

21

S4013133

NUT

desc: ECROU

16шт.

22

2123-2393A

PIN

desc: BROCHE

1шт.

23

2120-1339

BOLT M10X1.0X35

desc: BOULON A 6 PANS

32шт.

24

2260-9053A

SHAFT;PROPELLING(FRONT)

desc: ARBRE

1шт.

24A

100-KIA1-00

UNIVERSAL JOINT

desc: . UNIVERSEL JOINT

2шт.

25

S0521351

BOTL M16X2.0X35

desc: BOULON A 6 PANS

1шт.

26

2181-1117D1

PLUG

desc: BOUCHON

1шт.

27

S6710042

FITTING

desc: GRAISSEUR

1шт.

28

S0565066

BOLT M16X2.0X40

desc: BOULON A 6 PANS

8шт.

29

195-00414B

SUPPORT

SERIAL: 1001-1092

1шт.

29

195-00414C

SUPPORT

SERIAL: 1093

1шт.

30

S0518466

BOLT M14X2.0X40

desc: BOULON A 6 PANS

8шт.

31

S5102803

WASHER;SPRING M14

desc: RONDELLE ELASTIQUE

8шт.

32

S0515353

BOLT M12X1.75X35

desc: BOULON A 6 PANS

4шт.

33

195-00416A

SUPPORT

desc: SUPPORT

2шт.

34

S0521666

BOLT M16X2.0X50

desc: BOULON A 6 PANS

4шт.

35

S5010903

WASHER;PLAIN M16

desc: RONDELLE

8шт.

36

621-00506A

PLATE

desc: PLAQUE

2шт.

37

S5010813

WASHER;PLAIN M14

desc: RONDELLE

8шт.

38

S5110903

WASHER;PLAIN M16

SERIAL: 1449

8шт.
