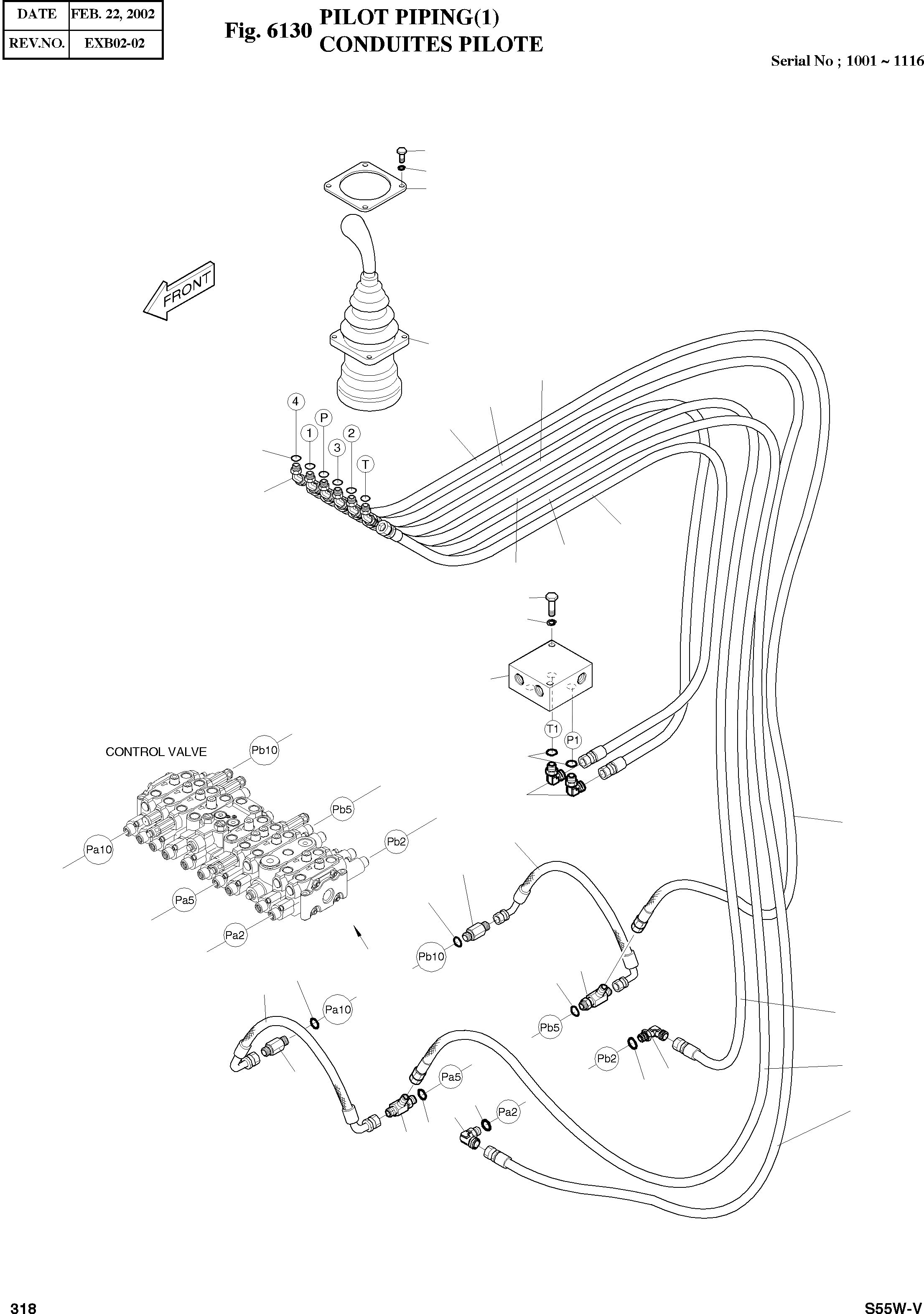

Запчасти Doosan Daewoo PILOT PIPING(1) OPTION PARTS

-

400-00174

PILOT PIPING

SERIAL: 1001-1116

-2шт.

5

2184-1045D111

HOSE PF1/4-1570L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1045D104

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

8

2184-1045D147

HOSE PF1/4-2250L

desc: TUYAU FLEXIBLE

1шт.

9

2184-1045D152

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

10

2184-1045D202

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1061D5

HOSE PF1/4-290L

desc: TUYAU FLEXIBLE

2шт.

30

2181-1126D34

ADAPTER;LONG PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

2шт.

31

2181-1702D4

ELBOW PFO1/4XPF1/4

desc: COUDE

4шт.

32

S8000111

O-RING

desc: JOINT TORIQUE

14шт.

34

2181-1951D1

TEE PFO1/4X2-PF1/4

desc: TE

2шт.

35

2181-2430D1

ELBOW PFO1/4XPF1/4

desc: COUDE

6шт.

37

2420-9624

VALVE;JOYSTICK(L.H)

desc: VANNE DE COMMAND A DISTANCE

1шт.

39

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

40

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

41

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

4шт.

45

2423-1390

BLOCK

desc: BLOC

1шт.

46

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

47

S5102503

WASHER;SPRNG M8

desc: RONDELLE ELASTIQUE

2шт.
