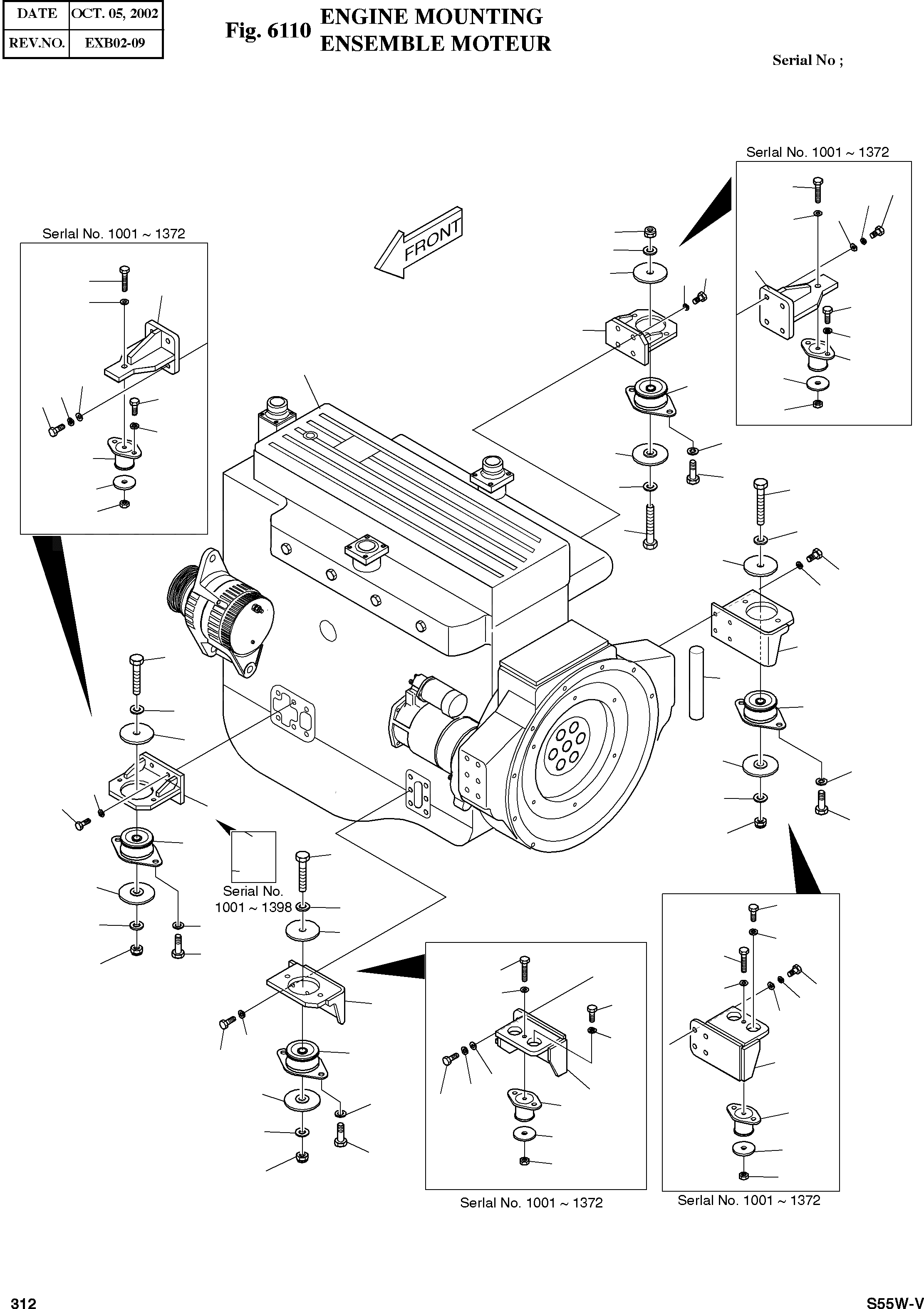

Запчасти Doosan Daewoo ENGINE MOUNTING OPTION PARTS

-

201-00020

ENGINE MOUNTING ASS'Y

SC: D

-2шт.

1

201-00018

ENGINE ASS'Y

desc: ENSEMBLE MOTEUR

1шт.

19

2161-9072

RUBBER;E/G MOUNT(FRONT)

SERIAL: 1001-1372

2шт.

19

161-00270

RUBBER;E/G MOUNT(FRONT)

SERIAL: 1373-1398

2шт.

19

161-00270

RUBBER;E/G MOUNT(FRONT)

SERIAL: 1399

1шт.

20

2161-9073

RUBBER;E/G MOUNT(REAR)

SERIAL: 1001-1372

2шт.

20

161-00271

RUBBER;E/G MOUNT(REAR)

SERIAL: 1373-1398

2шт.

20

161-00271

RUBBER;E/G MOUNT(REAR)

SERIAL: 1399

3шт.

21

195-00209A

BRACKET;ENGINE(FRONT)

SERIAL: 1001-1372

2шт.

21

195-02080

BRACKET;ENGINE(FRONT)

SERIAL: 1373-1398

2шт.

21

195-02080

BRACKET;ENGINE(FRONT)

SERIAL: 1399

1шт.

22

195-00210A

BRACKET;ENGINE(REAR-R.H)

SERIAL: 1001-1372

1шт.

22

195-02081

BRACKET;ENGINE(REAR-R.H)

SERIAL: 1373

1шт.

23

195-00211A

BRACKET;ENGINE(REAR-L.H)

SERIAL: 1001-1372

1шт.

23

195-02082

BRACKET;ENGINE(REAR-L.H)

SERIAL: 1373

1шт.

24

S0561561

BOLT M12X1.75X90

SERIAL: 1001-1372

4шт.

24

S0766361

BOLT M12X1.75X90

SERIAL: 1373

4шт.

25

S4012733

NUT

SERIAL: 1001-1092

4шт.

25

2121-9019A

NUT;LOCK

SERIAL: 1093-1372

4шт.

25

121-00035

NUT;LOCK

SERIAL: 1373

4шт.

26

2114-1949

WASHER

SERIAL: 1001-1372

4шт.

26

114-00416A

WASHER

SERIAL: 1373

8шт.

27

S0511853

BOLT M10X1.5X20

SERIAL: 1001-1372

8шт.

28

S5102603

WASHER;SPRING

SERIAL: 1001-1372

24шт.

28

S5102603

WASHER;SPRING

SERIAL: 1373

16шт.

29

S0512263

BOLT M10X1.5X30

desc: BOULON A 6 PANS

16шт.

30

S5010613

WASHER;PLAIN

SERIAL: 1001-1372

16шт.

41

S5102703

WASHER;SPRING M12

SERIAL: 1373

8шт.

42

S5010713

WASHER;PLAIN

SERIAL: 1001-1372

4шт.

67

158-00008

PROTECTIVE

desc: TUYAU FLEXIBLE

1шт.

68

S5010913

WASHER;PLAIN M16

SERIAL: 1373

8шт.

69

S0514953

BOLT M12X1.75X22

SERIAL: 1373

8шт.

70

195-01076A

BRACKET;E/G MTG

SERIAL: 1399

1шт.
