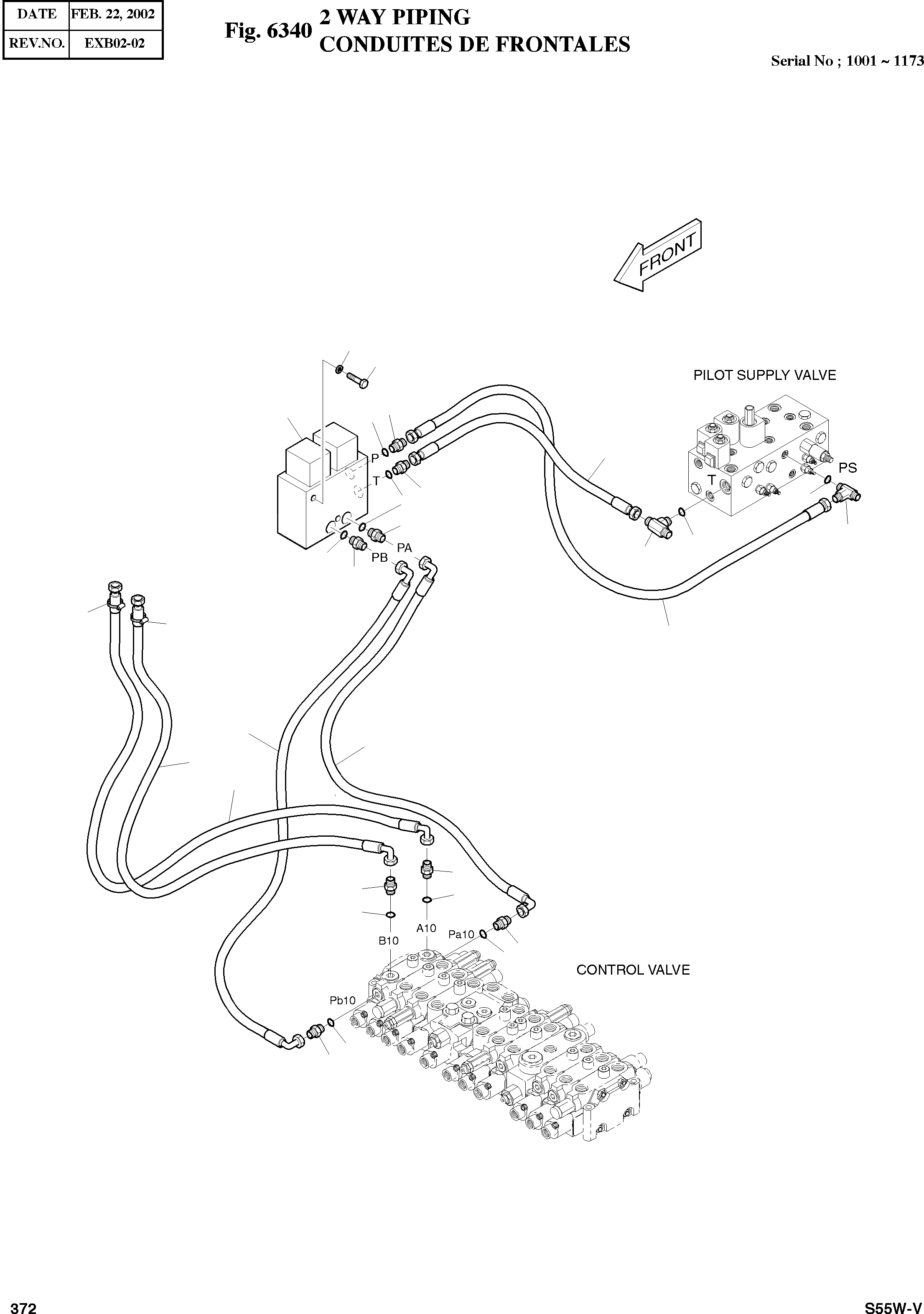

Запчасти Doosan Daewoo 2 WAY PIPING OPTION PARTS

-

400-00062

2 WAY PIPING

SERIAL: 1001-1173

-2шт.

1

422-00010

VALVE;SOLENOID

desc: VANNE SOLENOIDE

1шт.

2

2181-1126D14

ADAPTER

desc: RACCORD ADAPTATEUR

6шт.

3

S8000111

O-RING

desc: JOINT TORIQUE

7шт.

4

S0556753

BOLT M8X1.25X70

desc: BOULON A 6 PANS

2шт.

5

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

6

2181-2281D15

TEE PF1/4X2-PF1/2

desc: TE

1шт.

7

S8000181

O-RING

desc: JOINT TORIQUE

3шт.

8

2181-1951D1

TEE 3-PF1/4

desc: TE

1шт.

9

2181-1126D6

ADAPTER PFO1/2XPF1/2

desc: RACCORD ADAPTATEUR

2шт.

10

184-00032D3

HOSE PF1/2-2200L

SERIAL: 1001-1092

2шт.

10

DS2055557

HOSE PF1/2-2200L

SERIAL: 1093-1173

2шт.

11

2184-1045D61

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1061D47

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1061D59

HOSE PF1/4-1370L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1045D143

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

15

S8450016

CLAMP;HOSE

SERIAL: 1093-1173

2шт.
