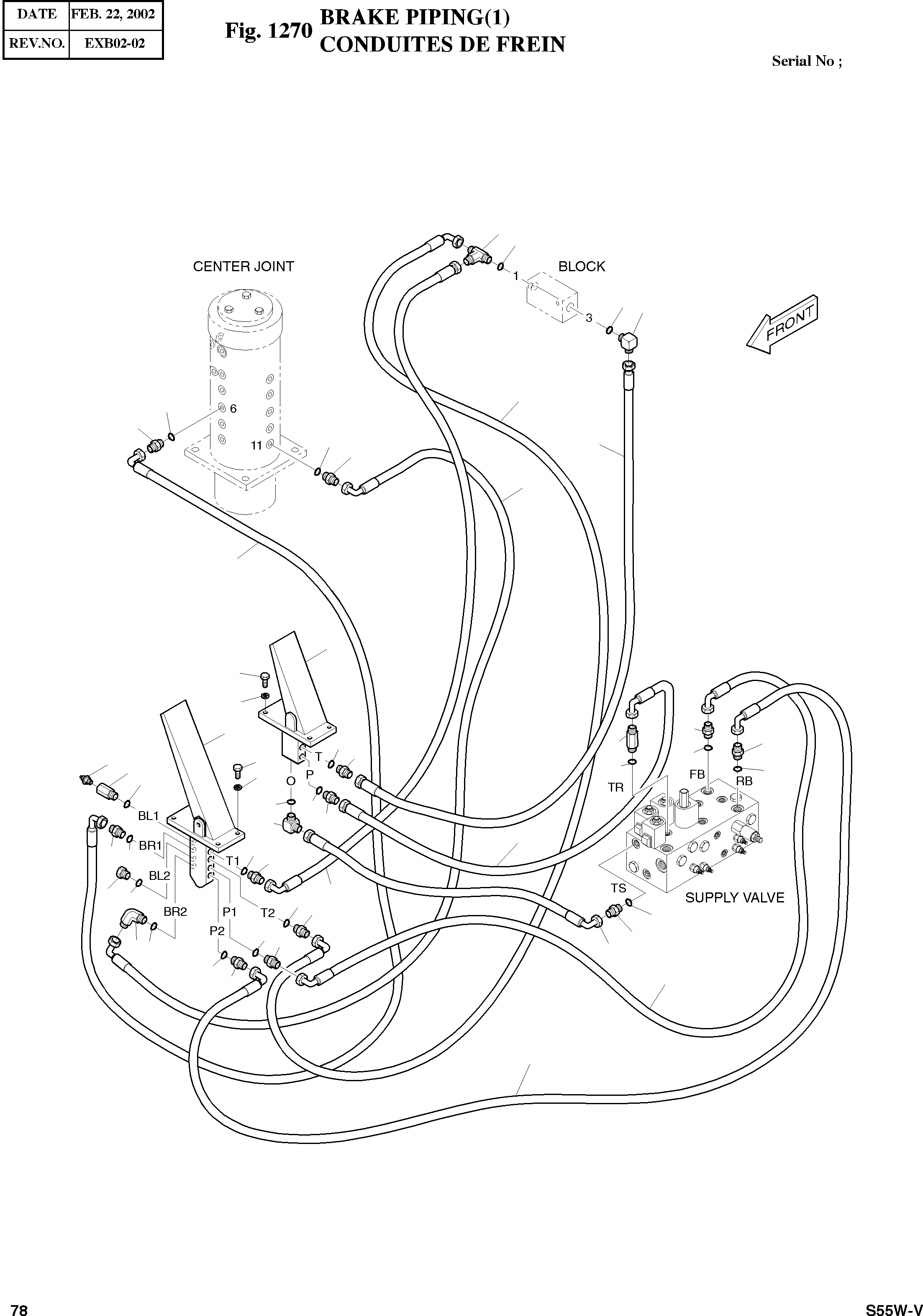

Запчасти Doosan Daewoo BRAKE PIPING(1) BODY PARTS

-

400-00334

BRAKE & MODULATION PIPING

SC: D

-2шт.

2

2420-9306A

VALVE;BRAKE-DIG

SERIAL: 1001-1092

1шт.

2

2420-9306B

VALVE;BRAKE-DIG

SERIAL: 1093-1278

1шт.

2

2420-9306C

VALVE;BRAKE-DIG

SERIAL: 1279

1шт.

3

2420-9406B

VALVE;PEDAL

SERIAL: 1001-1348

1шт.

3

2420-9406C

VALVE;PEDAL

SERIAL: 1349

1шт.

5

2184-1061D216

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

8

S0509053

BOLT M8X0.25X25

desc: BOULON A 6 PANS

4шт.

9

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

10

S2204861

BOLT M6X1.0X20

desc: BOULON A 6 PANS

3шт.

14

2184-1045D207

HOSE PF1/4-1150L

desc: TUYAU FLEXIBLE

1шт.

24

S5110301

WASHER;SPRNG M8

desc: RONDELLE ELASTIQUE

3шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

12шт.

28

2181-2419D6

ELBOW PF1/4XPF3/8

desc: COUDE

1шт.

30

S8000111

O-RING

desc: JOINT TORIQUE

7шт.

31

2181-1702D10

ELBOW PFO3/8XPF1/4

desc: COUDE

1шт.

32

2181-1126D36

ADAPTER PFO3/8XPF1/4

desc: RACCORD ADAPTATEUR

6шт.

35

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

5шт.

36

2181-1126D34

ADAPTER;LONG PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

37

2181-1702D4

ELBOW PFO1/4XPF1/4

desc: COUDE

1шт.

38

2181-1951D7

TEE PFO3/8X2-PF1/4

desc: TE

1шт.

39

2181-1950D2

PLUG

desc: BOUCHON

1шт.

40

181-00182

REDUCER

desc: REDUCTEUR

1шт.

45

2184-1061D148

HOSE PF1/4-1400L

desc: TUYAU FLEXIBLE

3шт.

49

2184-1046D107

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

2шт.

50

2184-1061D24

HOSE PF1/4-730L

desc: TUYAU FLEXIBLE

1шт.

51

549-00010

SWITCH 4.8bar

desc: INTERRUPTEUR

1шт.

54

2184-1046D117

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.
