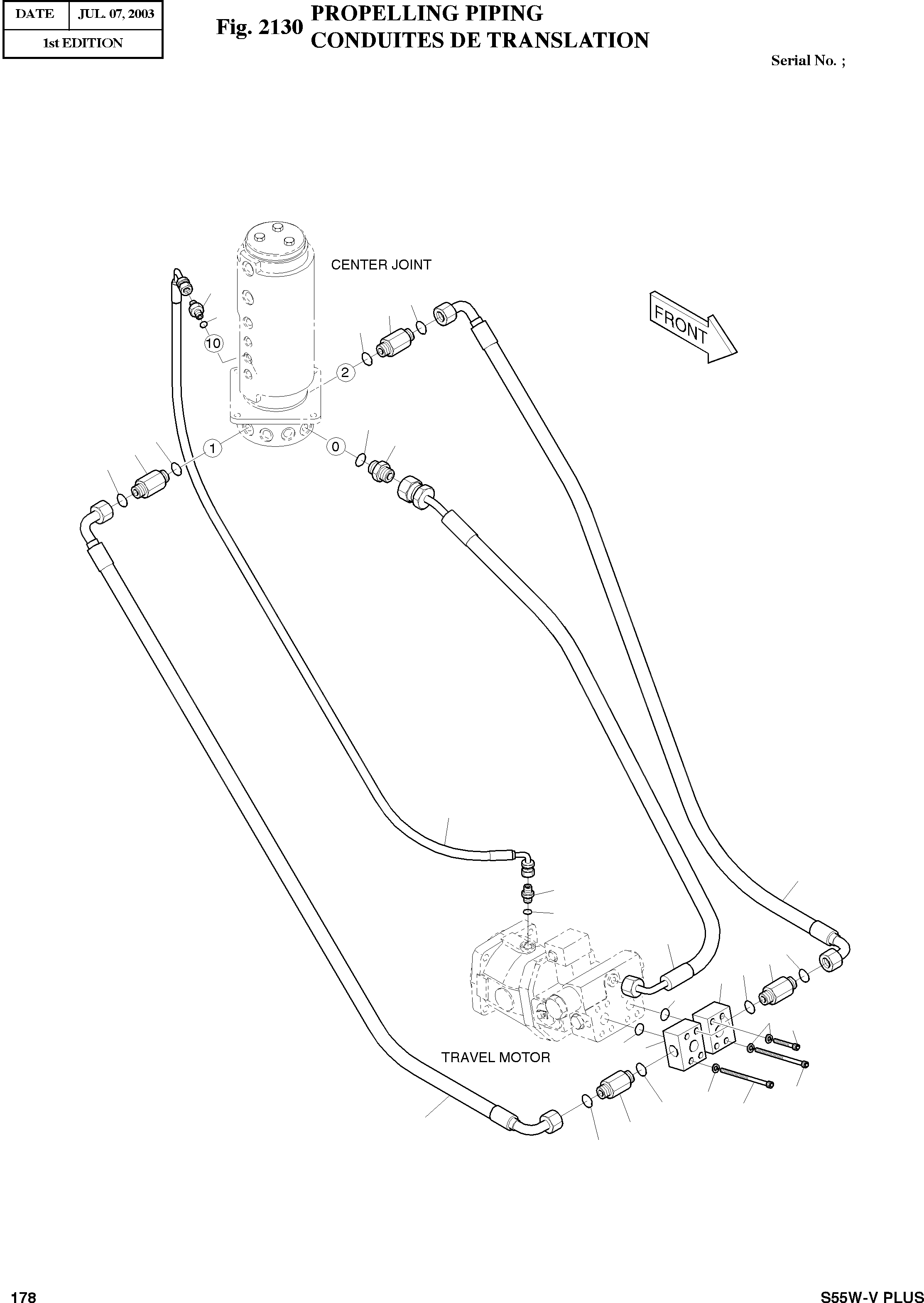

Запчасти Doosan Daewoo PROPELLING PIPING POWER TRAIN

-

400-00950

PIPING;PROPELLING

SC: D

-2шт.

1

423-00159

BLOCK

desc: BLOC

2шт.

3

S8000231

O-RING

desc: JOINT TORIQUE

5шт.

4

2180-1026D19

O-RING

desc: JOINT TORIQUE

2шт.

5

S2217266

BOLT;SOCKET M12X1.75X130

desc: BOULON A 6 PANS

6шт.

6

S5110703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

7

DS2023100

HOSE-850L

desc: TUYAU FLEXIBLE

2шт.

10

S2215866

BOLT;SOCKET

desc: BOULON A 6PANS

2шт.

11

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

12

2181-4133D31

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

13

2181-4133D13

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

14

2181-1126D1

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

15

S8180291

PACKING

desc: RONDELLE D'ETANCHEITE

1шт.

16

2181-1126D7

ADAPTER

desc: RACCORD

1шт.

17

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

18

2181-1917D1

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

21

2184-1096D124

HOSE PF3/8-1050L

desc: TUYAU FLEXIBLE

1шт.

23

DS2058238

HOSE PF3/4-1000L

desc: TUYAU FLEXIBLE

1шт.
