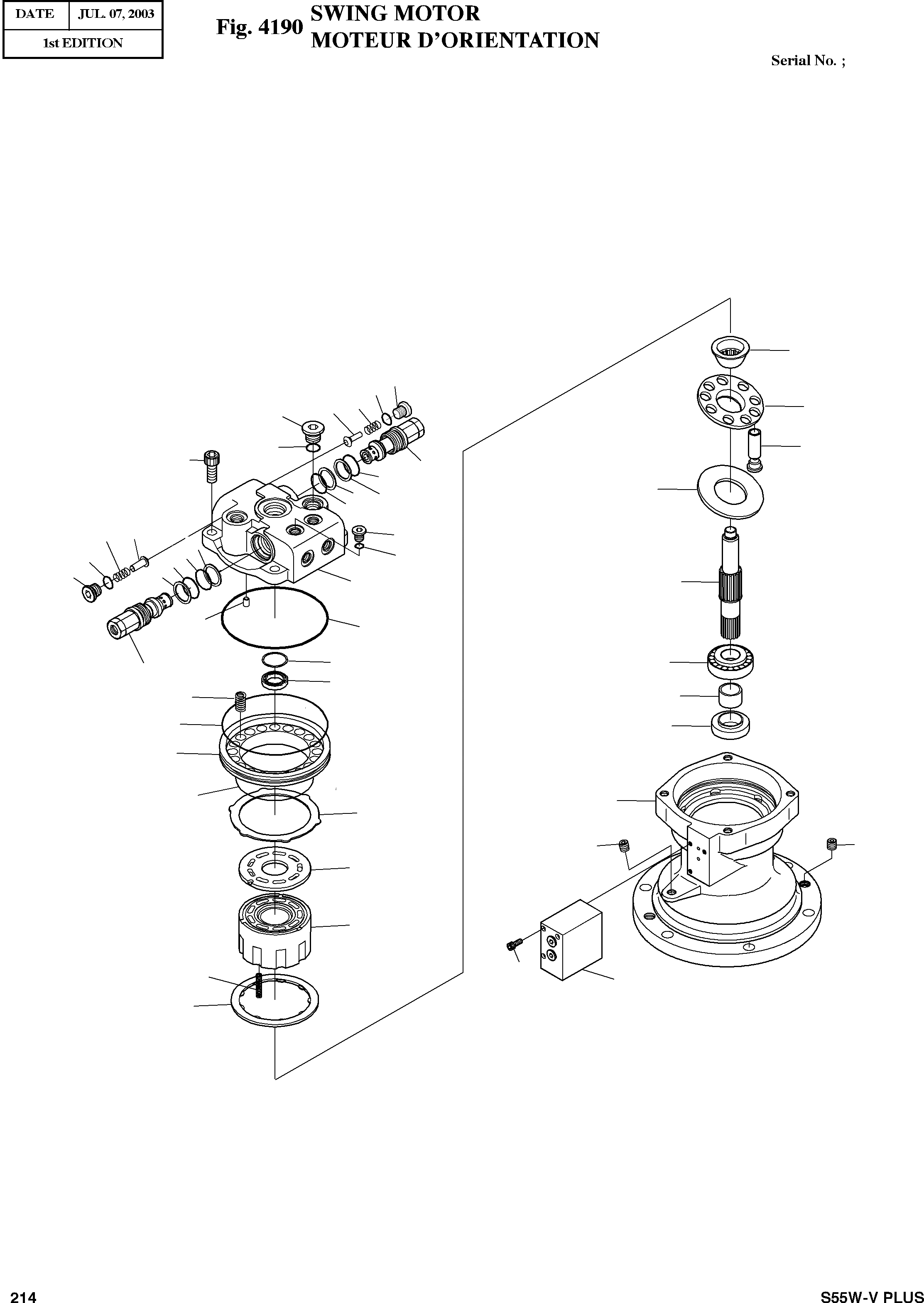

Запчасти Doosan Daewoo SWING MOTOR HYDRAULIC PARTS

-

401-00307B

MOTOR;SWING

desc: MOTEUR D'ORIENTATION

1шт.

1

JA0F1001

BODY

desc: CARTER

1шт.

2

0SAP1709

SEAL;OIL

SC: K

1шт.

3

MS50S202

BLOCK;CYLINDER

desc: BLOC-CYLINDRES

1шт.

4

MS50D103

SHAFT

desc: ARBRE

1шт.

5

TB30305C

BEARING;TAPER

desc: PALIER

1шт.

6

BU302520

BUSHING

desc: COUSSINET

1шт.

7

J43A102

PLATE;SHOE

desc: PLAQUE

1шт.

8

MS50D104

SPRING

desc: RESSORT

9шт.

9

MS50D105

PLATE;SET

desc: PLAQUE

1шт.

10

J43A108

PISTON SHOE ASS'Y

desc: PISTON

9шт.

11

MS50D106

GUIDE;BALL

desc: GUIDE

1шт.

12

JA0F1002A

COVER;REAR

desc: COUVERCLE

1шт.

13

J43A110

PIN

desc: GOUJON

2шт.

14

AS568-252

O-RING

SC: K

1шт.

15

TB30202

BEARING;TAPER

desc: PALIER

1шт.

16

MS50D108

PLATE;VALVE

desc: PLAQUE

1шт.

17

JA0F1003

RELIEF VALVE ASS'Y

desc: CLAPET DE DECHARGE

2шт.

18

WBM1230

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

19

WPT12

PLUG

desc: BOUCHON

1шт.

20

MS50D110

PLUG

desc: BOUCHON

1шт.

21

P0014

O-RING

SC: K

1шт.

22

S343000-5

SHIM

desc: CALE

1шт.

23

WPT14

PLUG

desc: BOUCHON

3шт.

24

BURP026

RING;BACK UP

SC: K

2шт.

25

P0026

O-RING

SC: K

2шт.

26

MS50S204

PLATE;FRICTION

desc: PLAQUE

1шт.

27

MS50S205

PLATE

desc: PLAQUE

1шт.

28

MS50S206

PISTON;PARKING

desc: PISTON

1шт.

29

AS568-254

O-RING

SC: K

2шт.

30

MS50S207

SPRING

desc: RESSORT

18шт.

31

MS50S208

VALVE;TIME DELAY

desc: VANNE

1шт.

32

WBM0675

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

3шт.

33

MS50S209

PLUG

desc: BOUCHON

2шт.

34

P0011

O-RING

SC: K

2шт.

35

JA0F1004

VALVE

desc: VANNE

2шт.

36

JA0F1005

SPRING

desc: RESSORT

2шт.

37

JA0F1006

PLUG

desc: BOUCHON

2шт.

38

P0018

O-RING

desc: JOINT TORIQUE

2шт.

39

A0118

O-RING

desc: JOINT TORIQUE

2шт.

40

BURP118

RING;BACK UP

desc: ANNEAU DE SOUTIEN

2шт.

*

2401-6250K

SEAL KIT

desc: KIT DE JOINTS D'ETANCHEITE

1шт.
