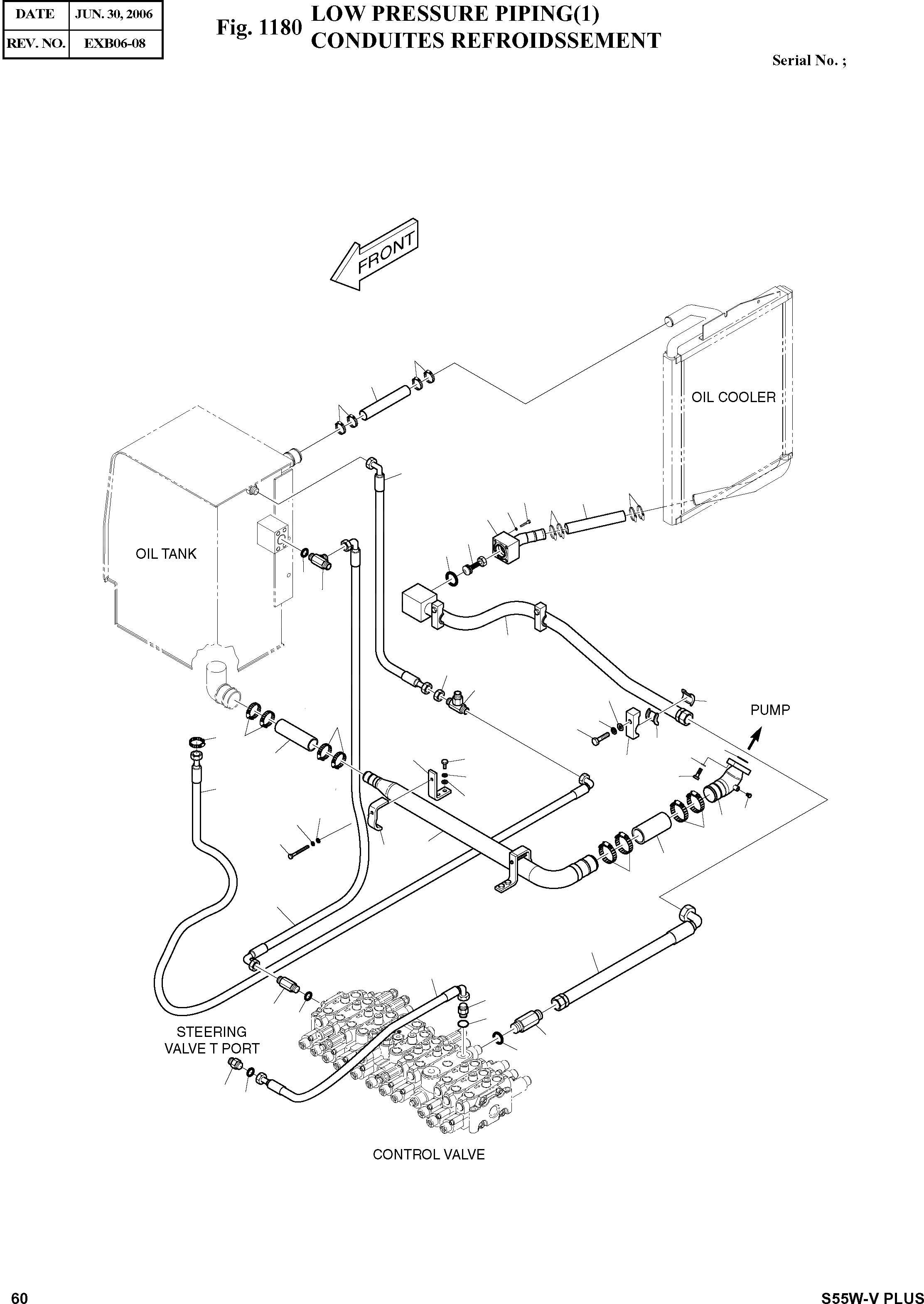

Запчасти Doosan Daewoo LOW PRESSURE PIPING(1) BODY PARTS

-

400-01086A

PIPING;LOW PRESS

SC: D

-2шт.

5

S8450016

CLAMP;HOSE

desc: COLLIER

1шт.

8

140-01325A

PIPE

desc: TUYAU

1шт.

9

140-00143C

PIPE;SUCTION

desc: TUYAU

1шт.

10

2180-1026D28

O-RING

desc: JOINT TORIQUE

1шт.

11

S2215466

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6PANS

4шт.

12

S5110703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

4шт.

13

2181-2047

PLUG

desc: BOUCHON

1шт.

14

2185-1776D42

HOSE 305L

desc: TUYAU FLEXIBLE

1шт.

15

S8450082

CLAMP;HOSE

desc: COLLIER

4шт.

18

S8000141

O-RING

desc: JOINT TORIQUE

1шт.

19

S0561853

BOLT M12X1.75X105

desc: BOULON A 6 PANS

2шт.

20

195-01153

BRACKET

desc: SUPPORT

2шт.

21

2124-1224D9

CLAMP

desc: COLLIER

2шт.

22

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

4шт.

23

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

9шт.

24

S5010713

WASHER;PLAIN M12

desc: RONDELLE PLATE

9шт.

25

124-00220

CLAMP

desc: COLLIER

3шт.

26

161-00102

RUBBER

desc: CAOUTCHOUC

6шт.

27

S0560853

BOLT M12X1.75X55

desc: BOULON A 6 PANS

3шт.

28

2181-1126D123

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

29

140-01315A

PIPE

desc: TUYAU

1шт.

30

140-00643B

PIPE

desc: TUYAU

1шт.

31

2426-9017

VALVE;BYPASS

SERIAL: 1001-1357

1шт.

31

2426-9006

VALVE;BYPASS

SERIAL: 1358-1767

1шт.

31

2426-9017

VALVE;BYPASS

SERIAL: 1768

1шт.

32

S8000511

O-RING

desc: JOINT TORIQUE

1шт.

33

S2209966

BOLT;SOCKET M8X1.25X65

desc: BOULON A 6 PANS

4шт.

34

S5110501

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

35

2185-1776D7

HOSE-200L

desc: TUYAU FLEXIBLE

2шт.

36

S8450035

CLAMP;HOSE

desc: COLLIER

8шт.

37

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

38

S8000291

O-RING

desc: JOINT TORIQUE

1шт.

39

2181-1126D97

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

40

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

42

2181-1951D34

TEE

desc: TE

1шт.

43

DS2411006

TEE

desc: TE

1шт.

44

121-00010D3

NUT

desc: ECROU

1шт.

49

2185-1776D45

HOSE-215L

desc: TUYAU FLEXIBLE

1шт.

50

S8450066

CLAMP;HOSE

desc: COLLIER

4шт.

53

DS2055756

HOSE PF1-620L

desc: TUYAU FLEXIBLE

1шт.

58

DS2059369

HOSE PF3/4-1600L

desc: TUYAU FLEXIBLE

1шт.

59

DS2055611

HOSE PF1/2-3000L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1036D269

HOSE PF1/2-650L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1036D70

HOSE PF1/2-450L

desc: TUYAU FLEXIBLE

1шт.

62

2181-1126D83

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

63

S8000181

O-RING

desc: JOINT TORIQUE

1шт.

64

2181-1126D115

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.
